Reverse Servo Assembly: Assembly

NOTE: Try not to roll the seal onto the housing when installing the seal or damage to the seal may occur.

Fig 1: Identifying Reverse Servo Piston Seal

Courtesy of FORD MOTOR CO.

Lubricate and install a new reverse servo piston seal.
Lubricate and install the reverse servo piston and seal assembly.

Fig 2: Identifying Reverse Servo Piston
Courtesy of FORD MOTOR CO.
Install the reverse servo spring.

Fig 3: Locating Reverse Servo Spring
Courtesy of FORD MOTOR CO.

WARNING: Follow the specified procedure when using the tool to remove the servo cover. The servo and servo cover are under high spring force and can separate forcefully, which may result in serious personal injury.

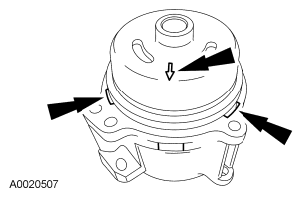

NOTE: The arrow on the servo plate must be aligned evenly between any 2 slots on the cover.

Fig 4: Aligning Mark Slots On Cover

Courtesy of FORD MOTOR CO.

Install the reverse servo plate.

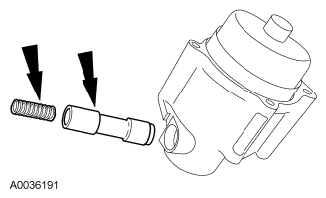

Install the reverse servo spring and check valve.

Fig 5: Locating Reverse Servo Spring And Check Valve
Courtesy of FORD MOTOR CO.
Install the control valve spring retainer.
- Tighten to 10 Nm (89 lb-in).

  Fig 6: Locating Control Valve Spring Retainer
  Courtesy of FORD MOTOR CO.
