Digital Transmission Range (TR) Sensor: Installation

NOTE: The Transmission Range (TR) sensor must fit flush against the boss on the case to prevent damage to the sensor.

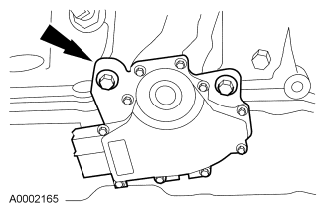

Fig 1: Locating Transmission Range Sensor

Courtesy of FORD MOTOR CO.

NOTE: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual control lever must be in the NEUTRAL position.

Using the TR Sensor Alignment Gauge, align the TR sensor and tighten the screws in an alternating sequence.
- Tighten 8 Nm (71 lb-in).

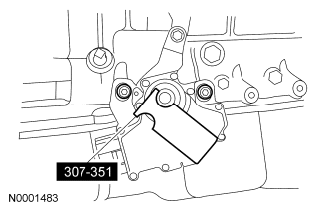

  Fig 2: Aligning TR Sensor With Sensor Alignment Gauge
  Courtesy of FORD MOTOR CO.
Connect the transmission selector lever cable to the manual control lever.

Fig 3: Locating Shift Cable Eyelet Manual Control Lever
Courtesy of FORD MOTOR CO.
Connect the TR sensor connector.

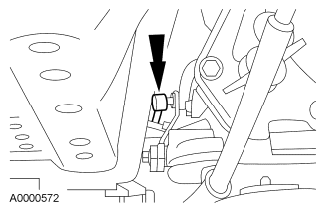

Fig 4: Locating TR Sensor Connector
Courtesy of FORD MOTOR CO.
Install the transmission crossmember-to-floor pan screws.
- Tighten to 63 Nm (46 lb-ft).

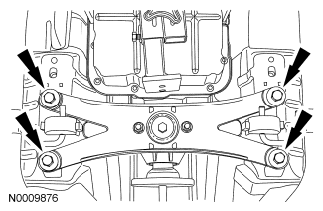

  Fig 5: Locating Transmission Crossmember-To-Floor Pan Screws
  Courtesy of FORD MOTOR CO.
Verify that the selector lever cable is adjusted correctly. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
