Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

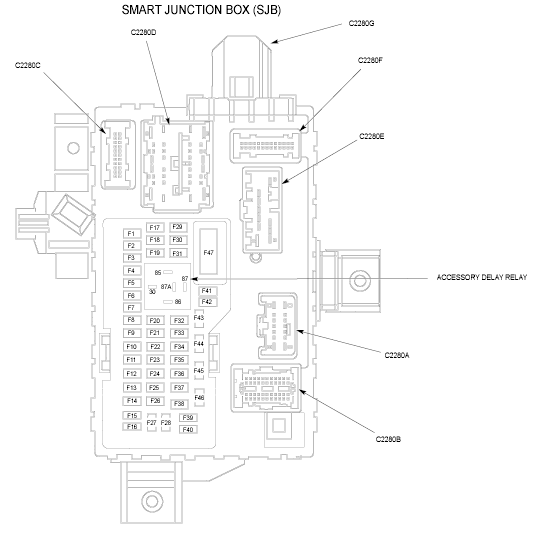

Fig 1: Smart Junction Box (SJB)

G00476603

Courtesy of FORD MOTOR CO.

Fig 2: Engine (4.0L)

G00476608

Courtesy of FORD MOTOR CO.

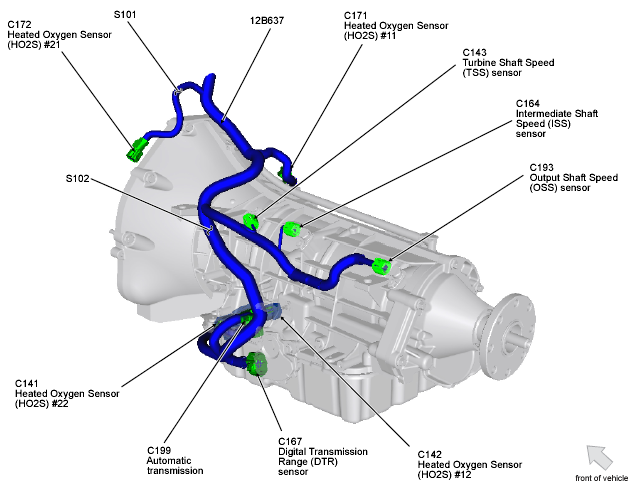

Fig 3: Automatic Transmission (4.0L)

G00476613

Courtesy of FORD MOTOR CO.

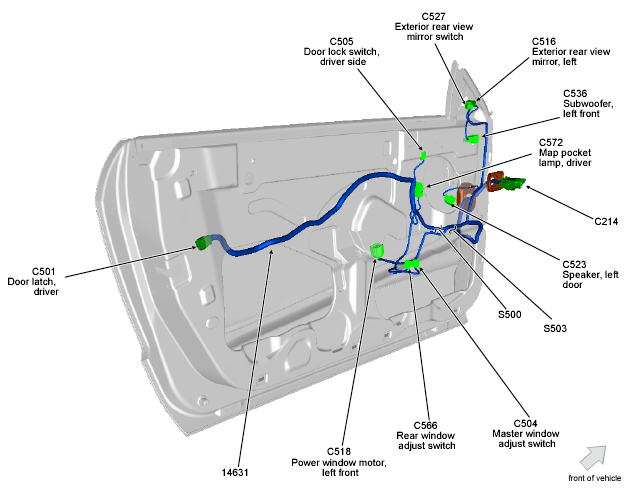

Fig 4: Driver's Door

G00476627

Courtesy of FORD MOTOR CO.

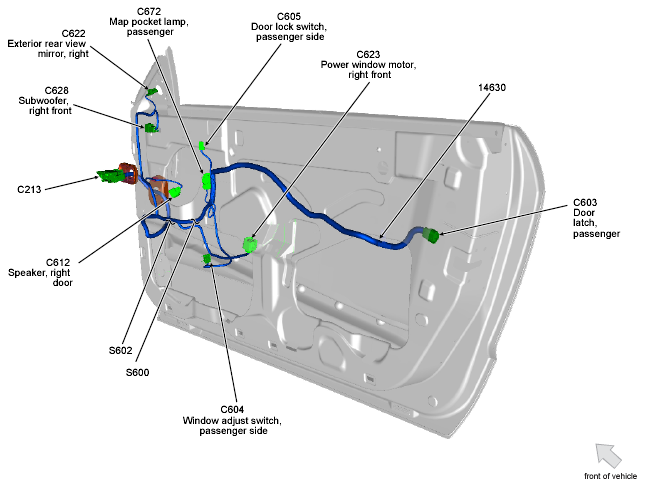

Fig 5: Passenger's Door

G00476628

Courtesy of FORD MOTOR CO.

Fig 6: Heated Seat Relay Box

G00439949

Courtesy of FORD MOTOR CO.

Fig 7: Engine Compartment

G00476604

Courtesy of FORD MOTOR CO.

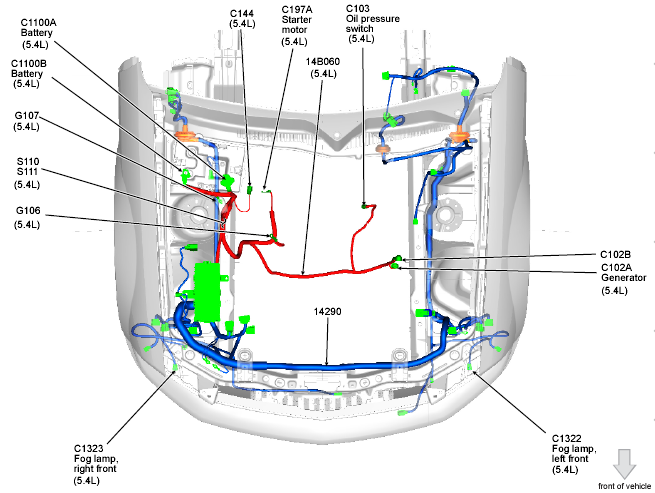

Fig 8: Engine Compartment

G00476606

Courtesy of FORD MOTOR CO.

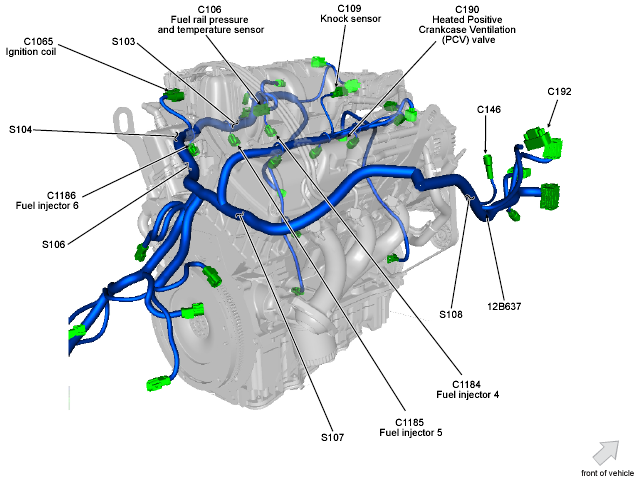

Fig 9: Engine (4.0L)

G00476607

Courtesy of FORD MOTOR CO.

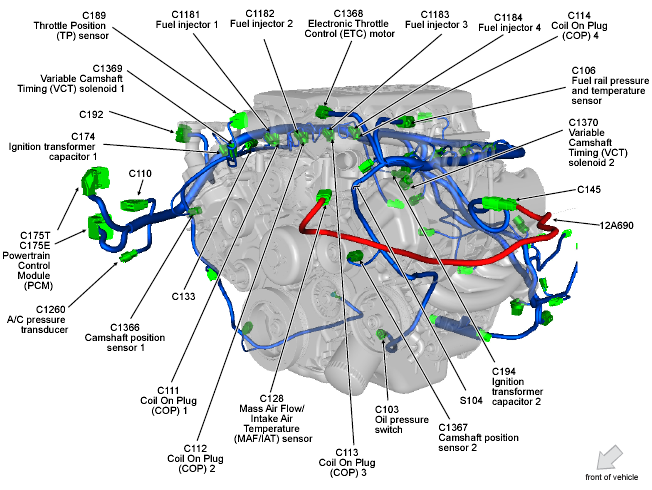

Fig 10: Engine (4.6L)

G00476609

Courtesy of FORD MOTOR CO.

Fig 11: Engine (4.6L)

G00476610

Courtesy of FORD MOTOR CO.

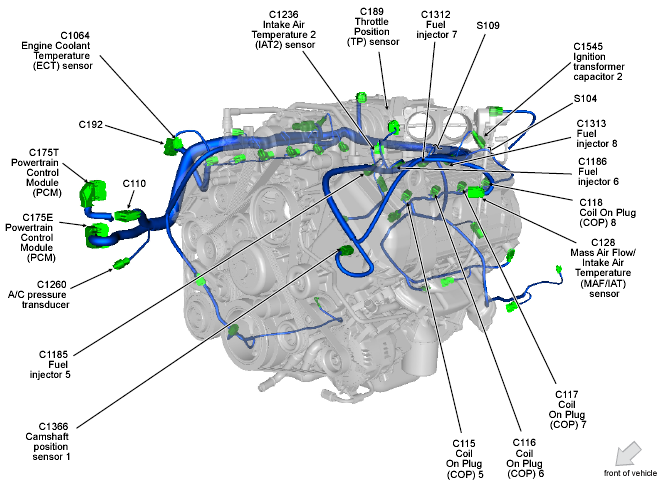

Fig 12: Engine (5.4L)

G00476611

Courtesy of FORD MOTOR CO.

Fig 13: Engine (5.4L)

G00476612

Courtesy of FORD MOTOR CO.

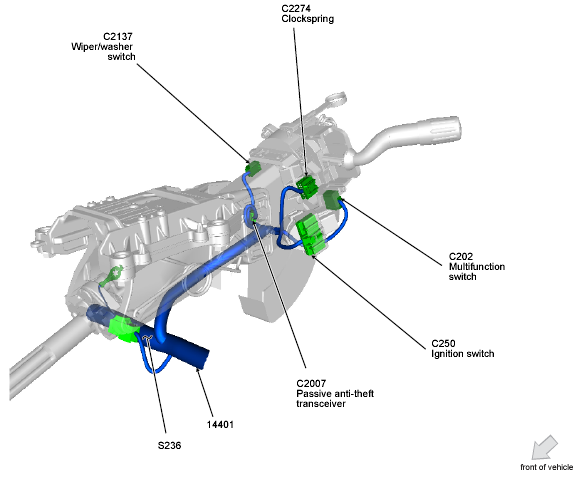

Fig 14: Steering Column

G00476616

Courtesy of FORD MOTOR CO.

Fig 15: Left Front Of Passenger Compartment

G00476619

Courtesy of FORD MOTOR CO.

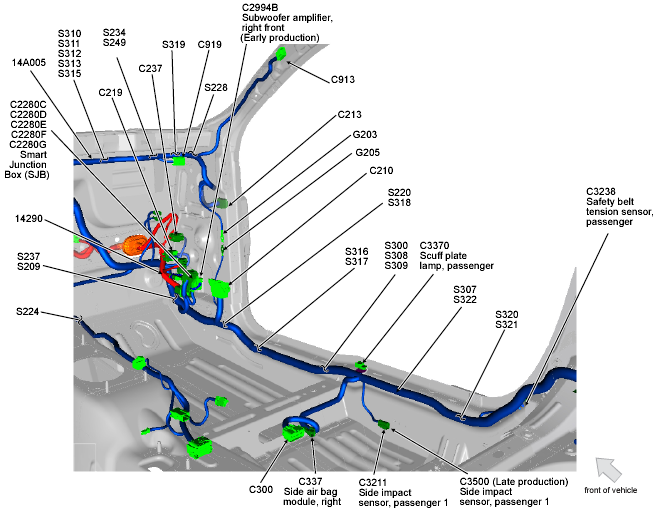

Fig 16: Right Front Of Passenger Compartment

G00476620

Courtesy of FORD MOTOR CO.

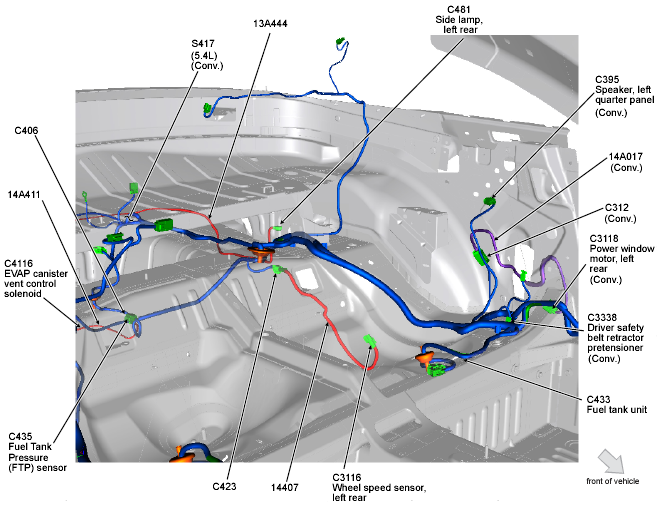

Fig 17: Left Rear Of Passenger Compartment (Convertible)

G00476621

Courtesy of FORD MOTOR CO.

Fig 18: Left Rear Of Passenger Compartment (Coupe)

G00476622

Courtesy of FORD MOTOR CO.

Fig 19: Driver Seat

G00476625

Courtesy of FORD MOTOR CO.

Fig 20: Passenger Seat

G00476626

Courtesy of FORD MOTOR CO.

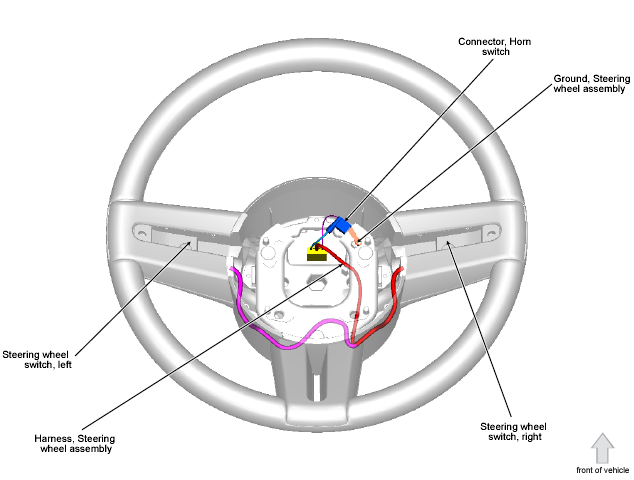

Fig 21: Steering Wheel

G00476617

Courtesy of FORD MOTOR CO.

Fig 22: Rear Of Dash

G00476615

Courtesy of FORD MOTOR CO.

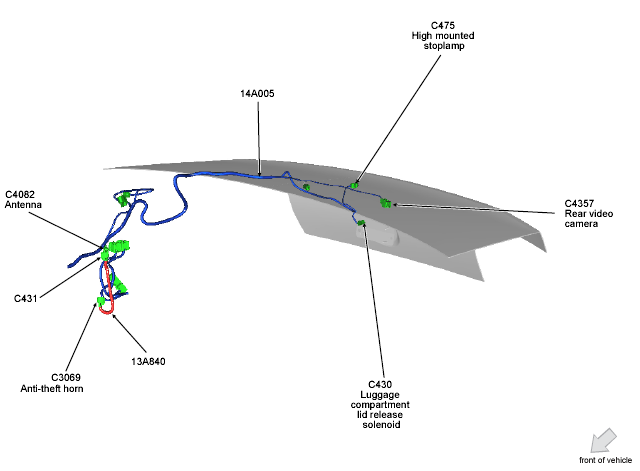

Fig 23: Trunk Lid

G00476629

Courtesy of FORD MOTOR CO.

Fig 24: HVAC Assembly

G00476631

Courtesy of FORD MOTOR CO.

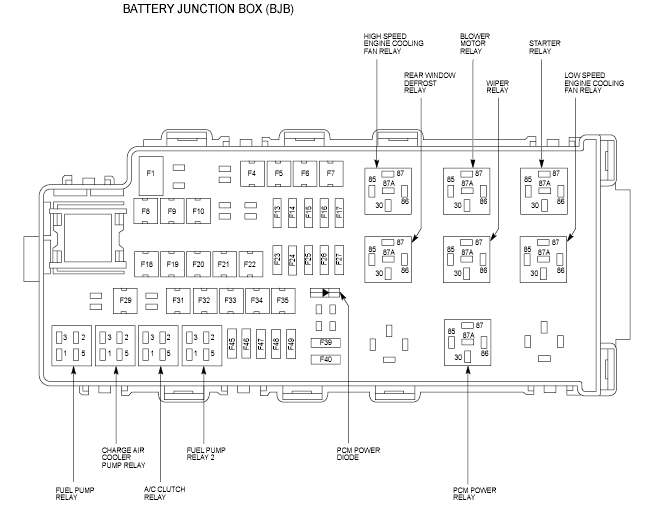

Fig 25: Battery Junction Box (BJB)

G00476602

Courtesy of FORD MOTOR CO.

Fig 26: Dash Panel

G00476614

Courtesy of FORD MOTOR CO.

Fig 27: Center Console

G00476618

Courtesy of FORD MOTOR CO.

Fig 28: Engine Compartment

G00476605

Courtesy of FORD MOTOR CO.

Fig 29: Automatic Transmission (Shelby)

G00458360

Courtesy of FORD MOTOR CO.

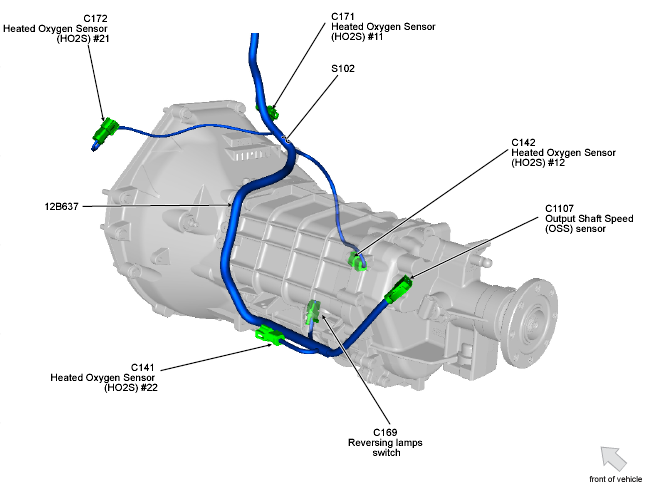

Fig 30: Manual Transmission

G00467074

Courtesy of FORD MOTOR CO.

Fig 31: Automatic Transmission (4.6L)

G00476632

Courtesy of FORD MOTOR CO.

Fig 32: Right Rear Of Passenger Compartment (Coupe & Convertible)

G00476624

Courtesy of FORD MOTOR CO.

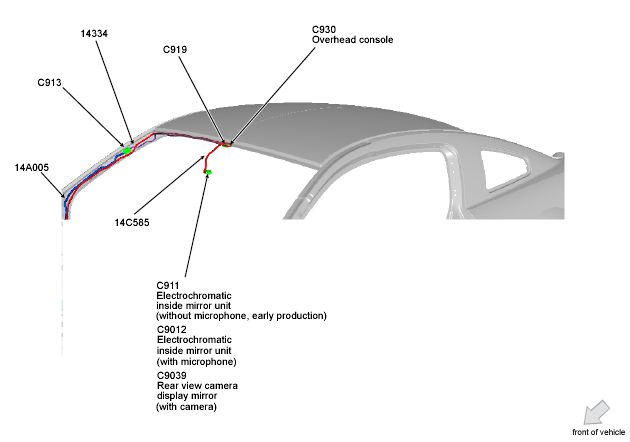

Fig 33: Roof

G00476630

Courtesy of FORD MOTOR CO.

Fig 34: Right Rear Of Passenger Compartment (Coupe & Convertible)

G00476623

Courtesy of FORD MOTOR CO.
