Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

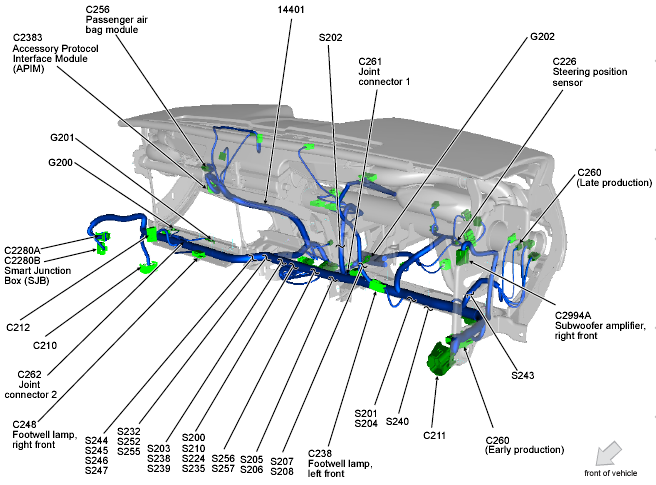

| Accessory Protocol Interface Module (APIM) | Right side of dash. See Figure. |

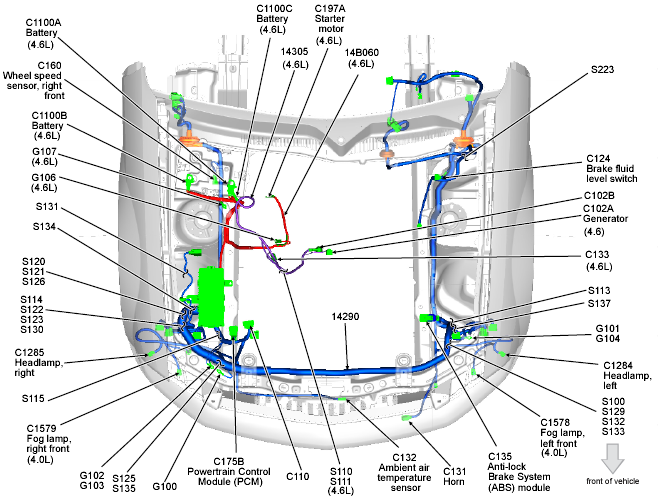

| Anti-Lock Brake System (ABS) Module | Left front of engine compartment. See Figure. |
| Audio Control Module (ACM) | Lower center of dash. See Figure. |

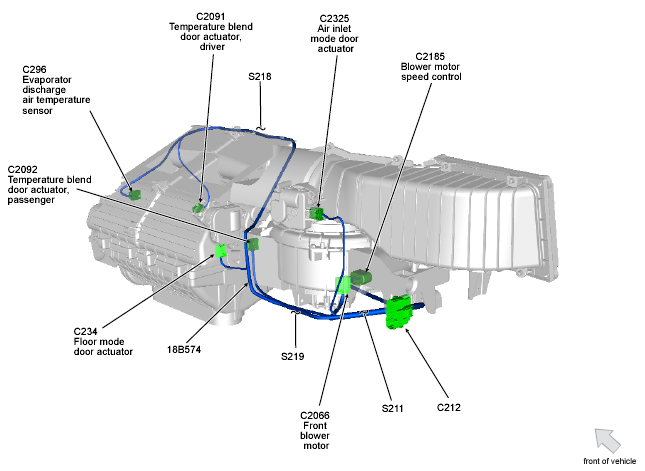

| Blower Motor Speed Control | On blower motor. See Figure. |

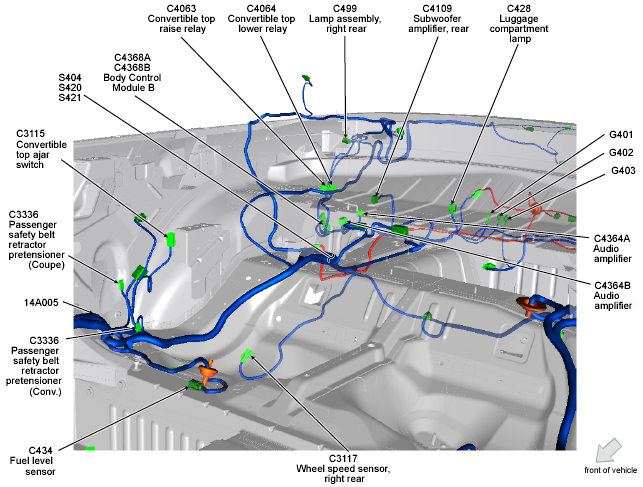

| Body Control Module B | Right rear of luggage compartment. See Figure. |
| Charge Motion Control Valve Module | Front of left cylinder head. See Figure. |

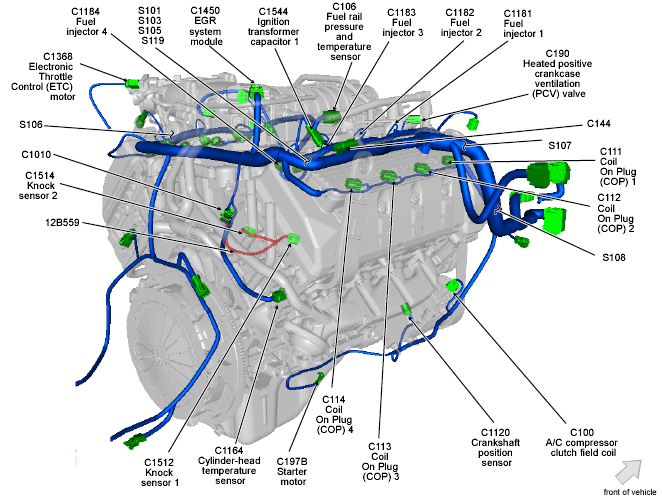

| EGR System Module (4.0L) | Top center of engine. See Figure. |
| EGR System Module (5.4L) | Top center of engine. See Figure. |

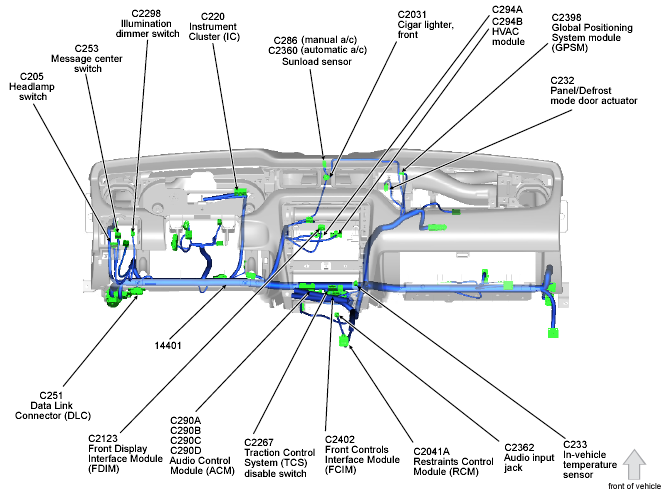

| Front Controls Interface Module (FCIM) | Lower center of dash. See Figure. |

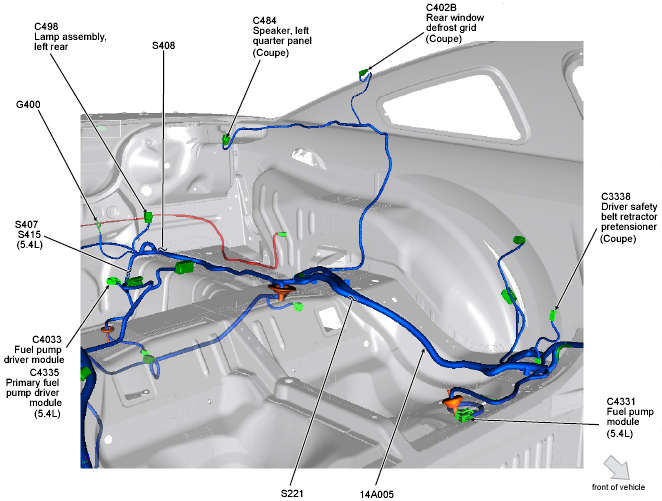

| Fuel Pump Module | Top left side of fuel tank. See Figure. |
| Global Positioning System Module (GPSM) | Right side of dash. See Figure. |

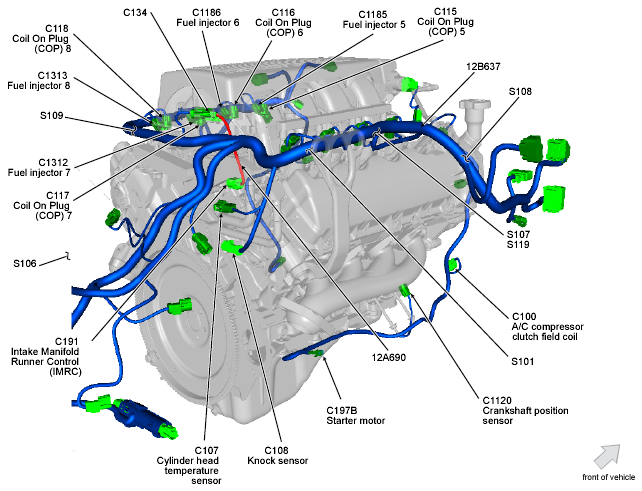

| Intake Manifold Runner Control (IMRC) | Top front of engine. See Figure. |

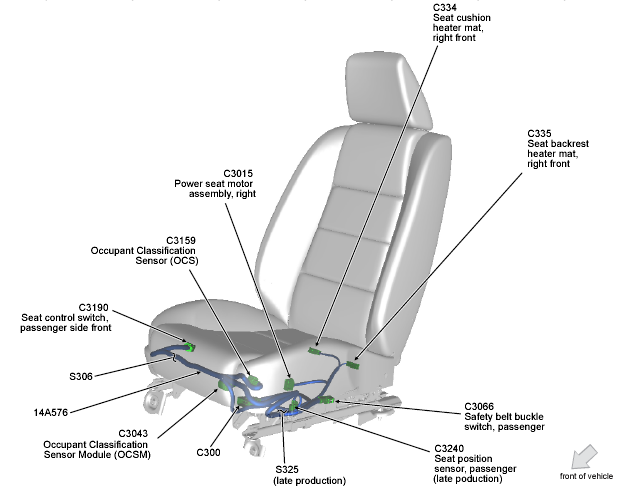

| Occupant Classification Sensor Module | Under passenger's seat. See Figure. |

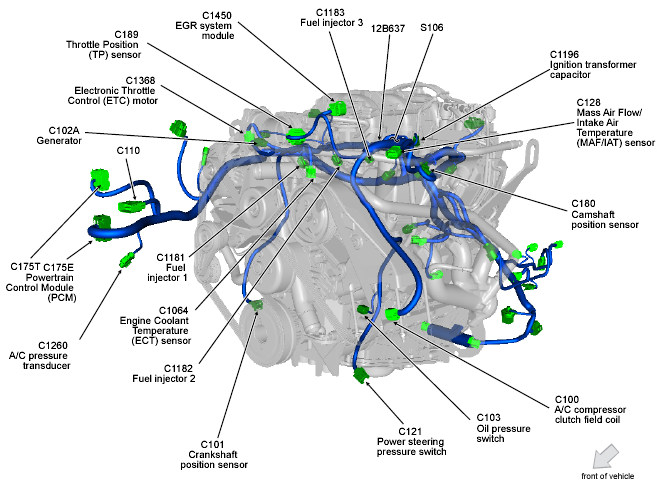

| Powertrain Control Module (PCM) | Right front of engine compartment. See Figure. |

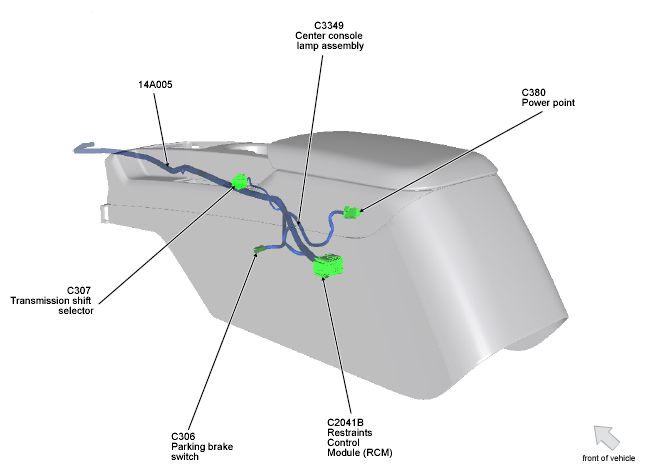

| Restraints Control Module (RCM) | Under center console. See Figure. |

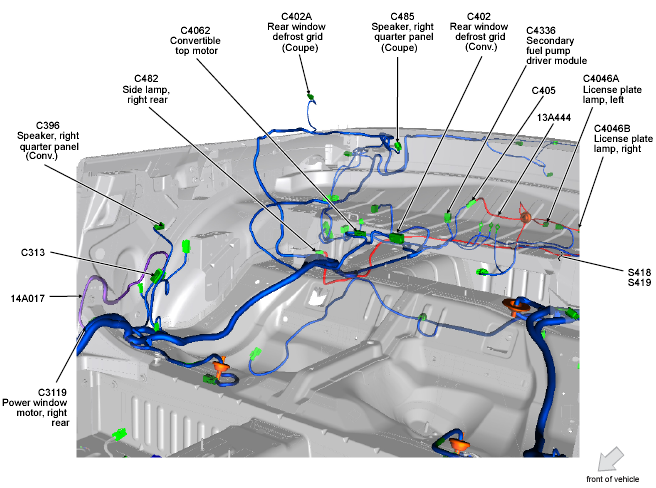

| Secondary Fuel Pump Driver Module | Rear of luggage compartment. See Figure. |
