Traction Control System Disable Switch Connector - C2267

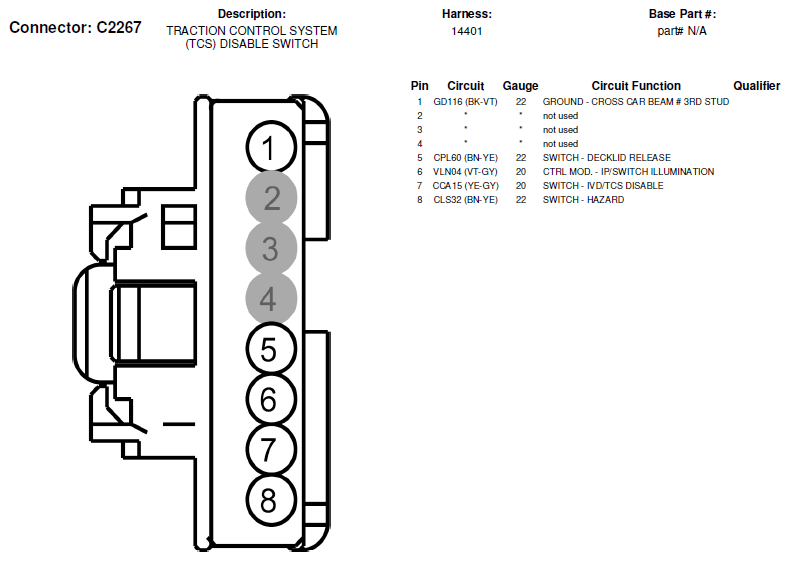

Fig 1: Traction Control System Disable Switch Connector End View (C2267)
Courtesy of FORD MOTOR CO.
