Global Positioning System Module Connector - C2398
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Global Positioning System Module Connector - C2398

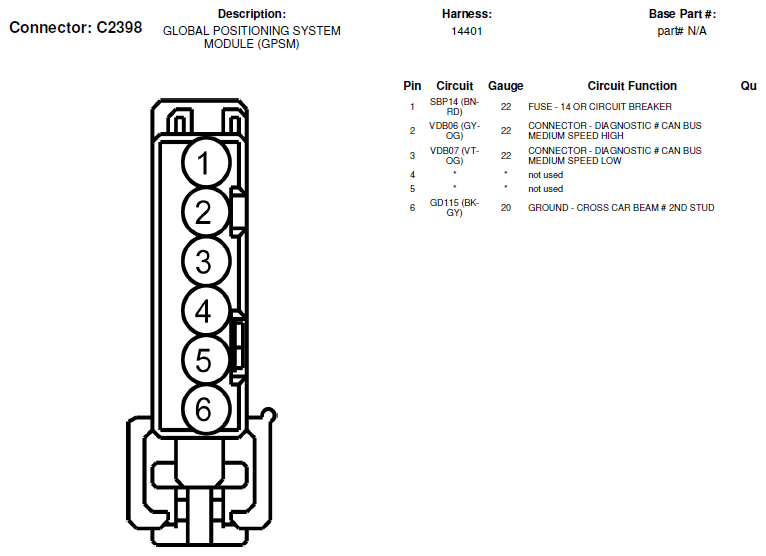

Fig 1: Global Positioning System Module Connector End View (C2398)
Courtesy of FORD MOTOR CO.
