Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

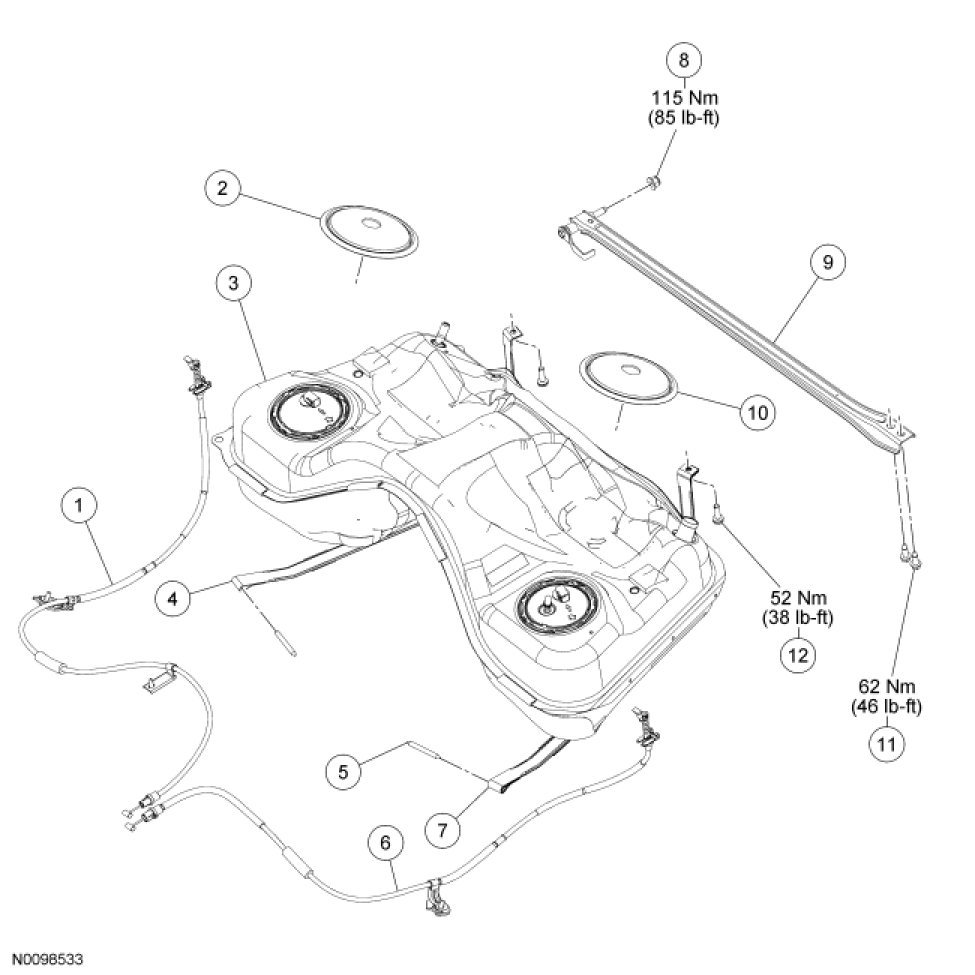

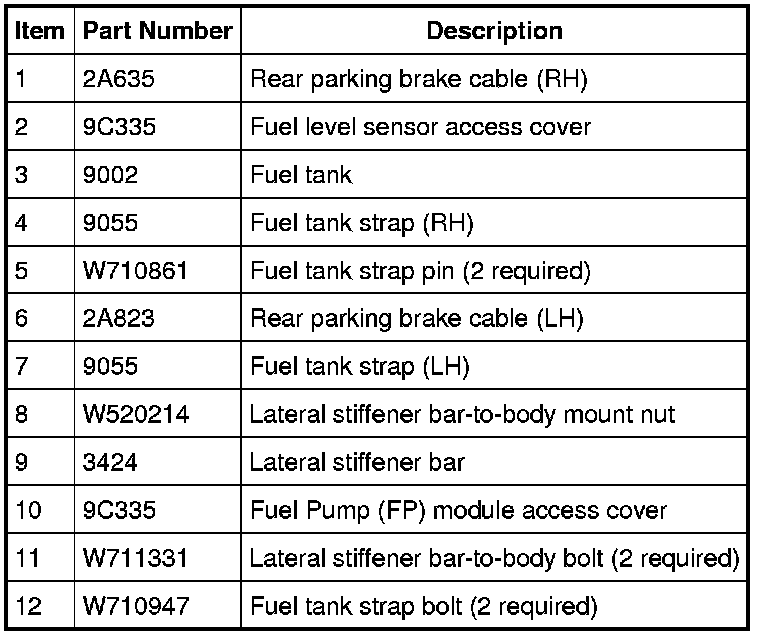

Fuel Tank Supports, Access Covers, Brake Cables, Lateral Stiffener Bar and Fasteners

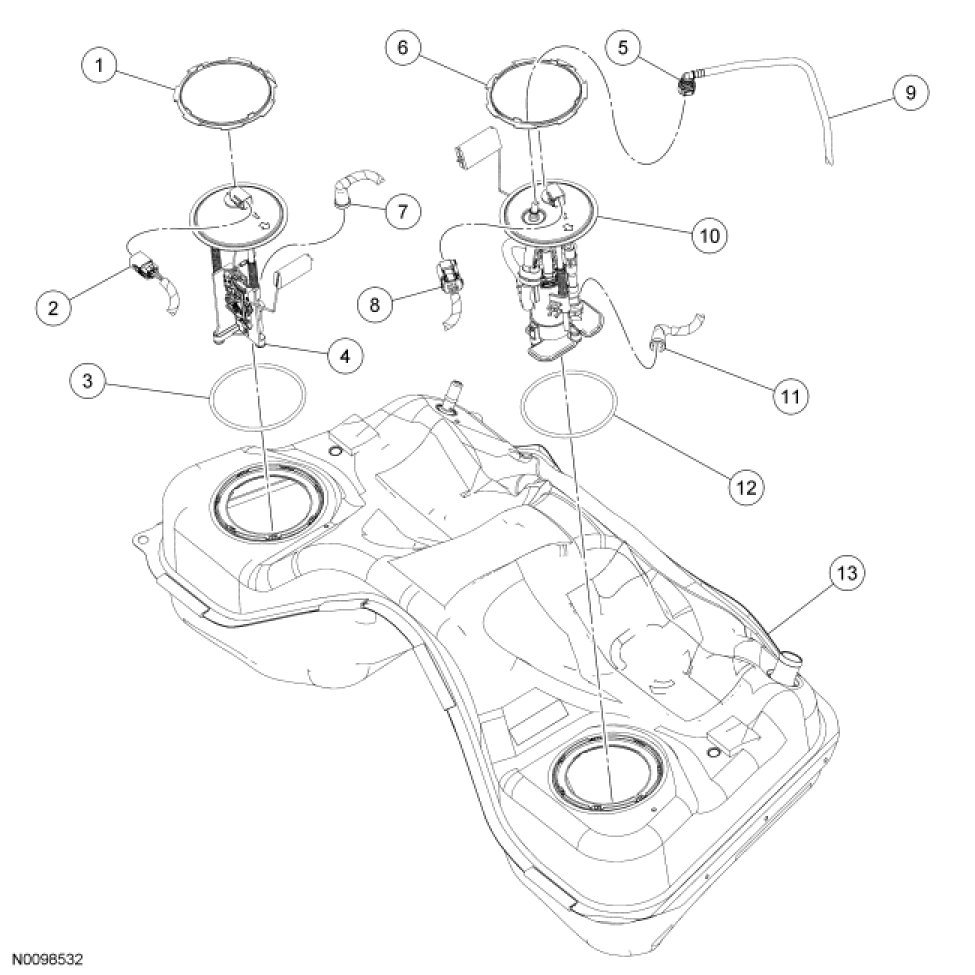

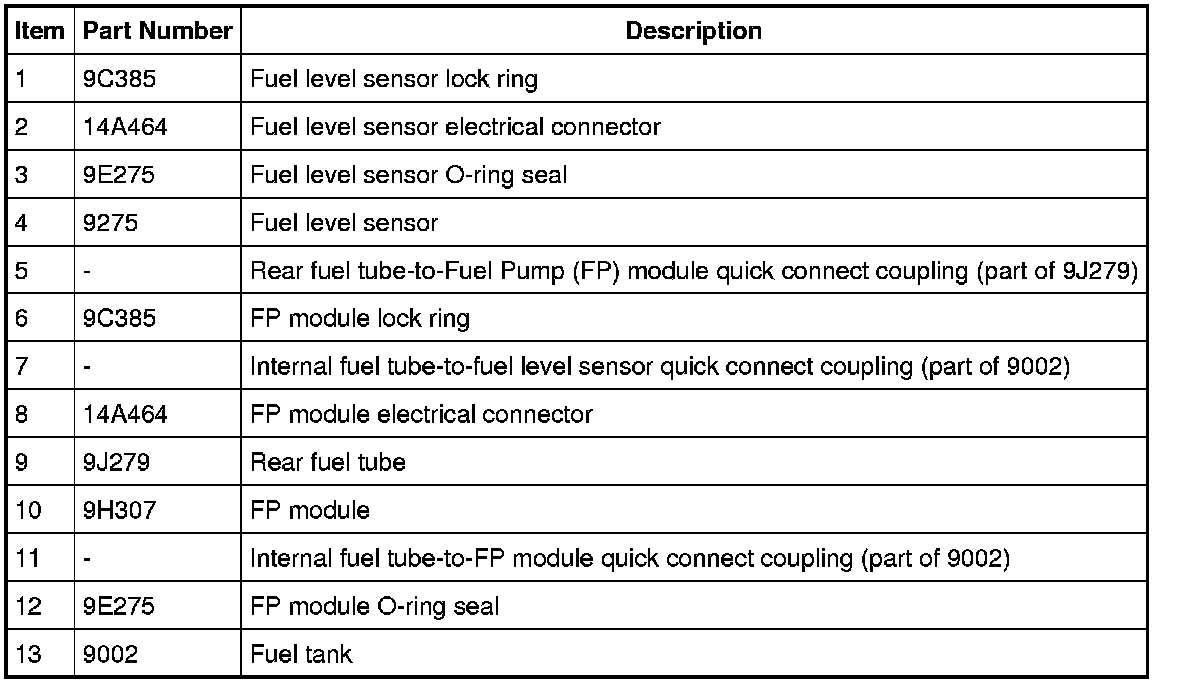

Fuel Pump, Fuel Level Sensor and Fuel Lines

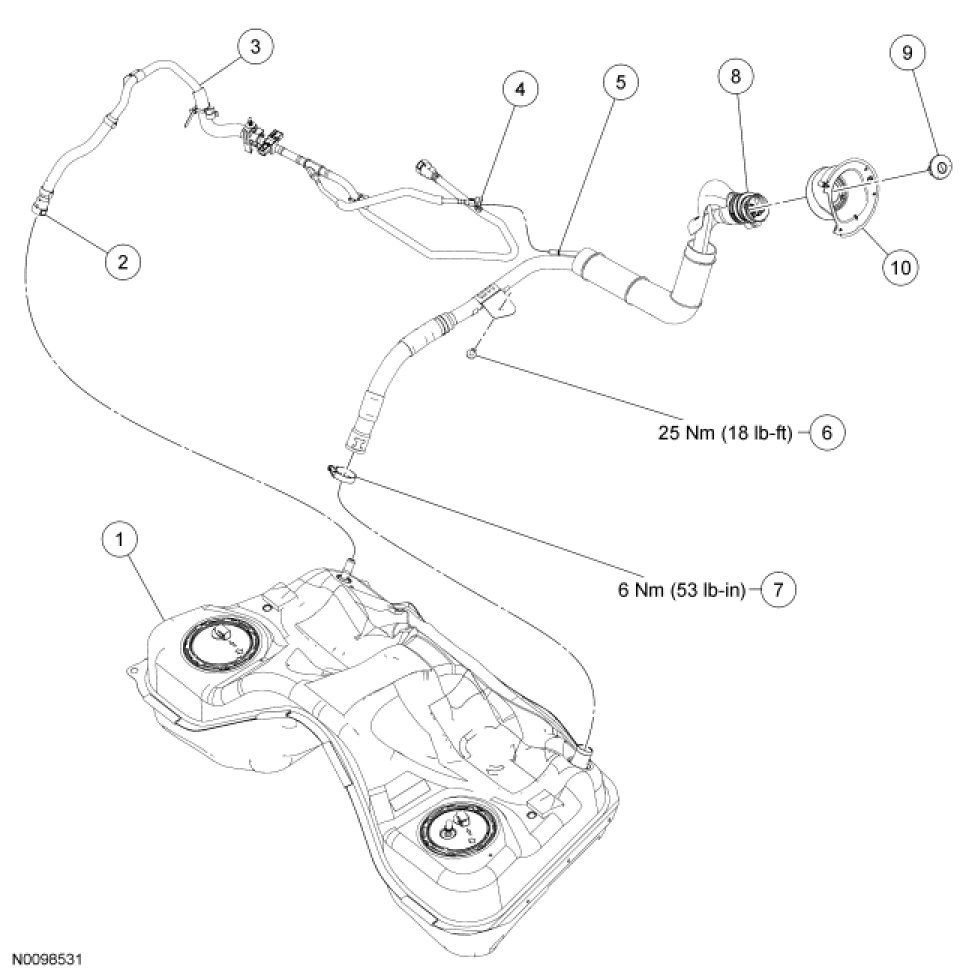

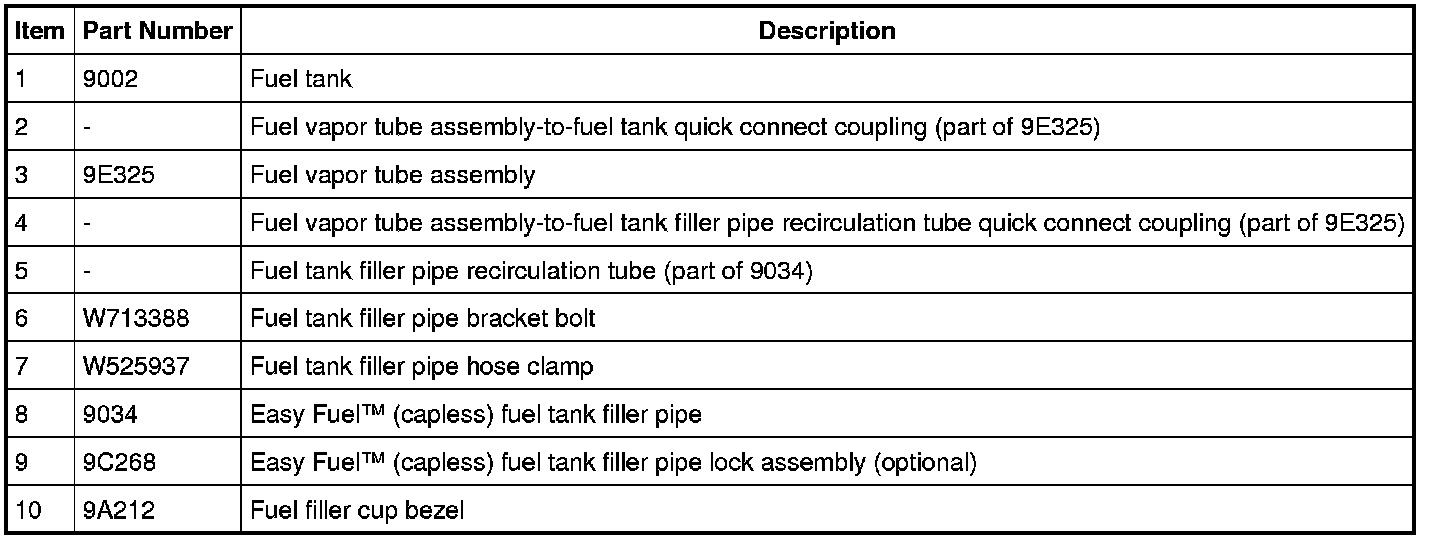

Fuel Tank and Filler Pipe Assembly
