Exhaust Gas Recirculation (EGR) System Components - Exploded View




Exhaust Gas Recirculation (EGR) System Components - Exploded View

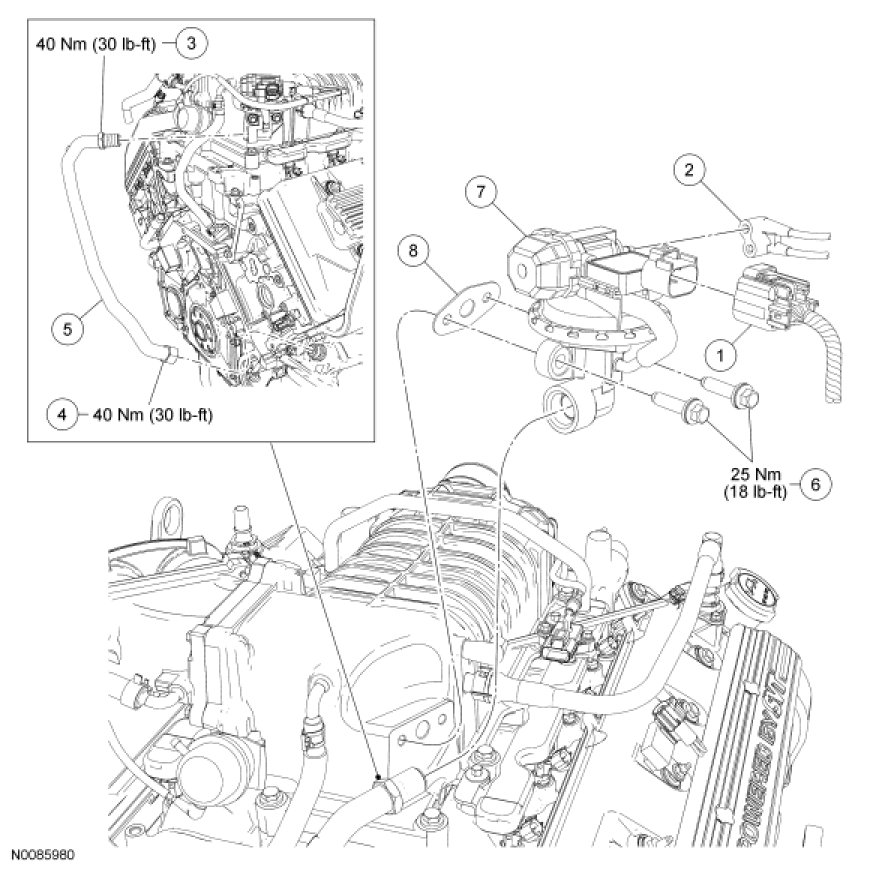

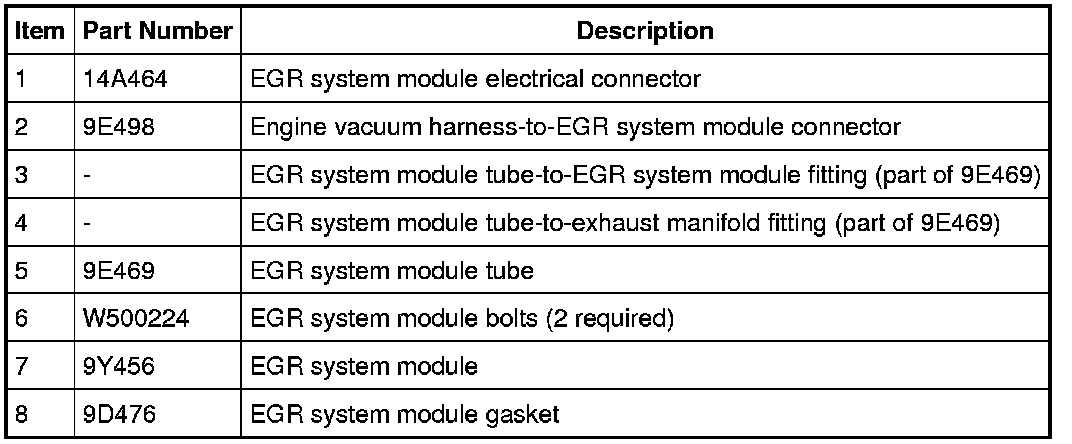

4.0L SOHC Engine

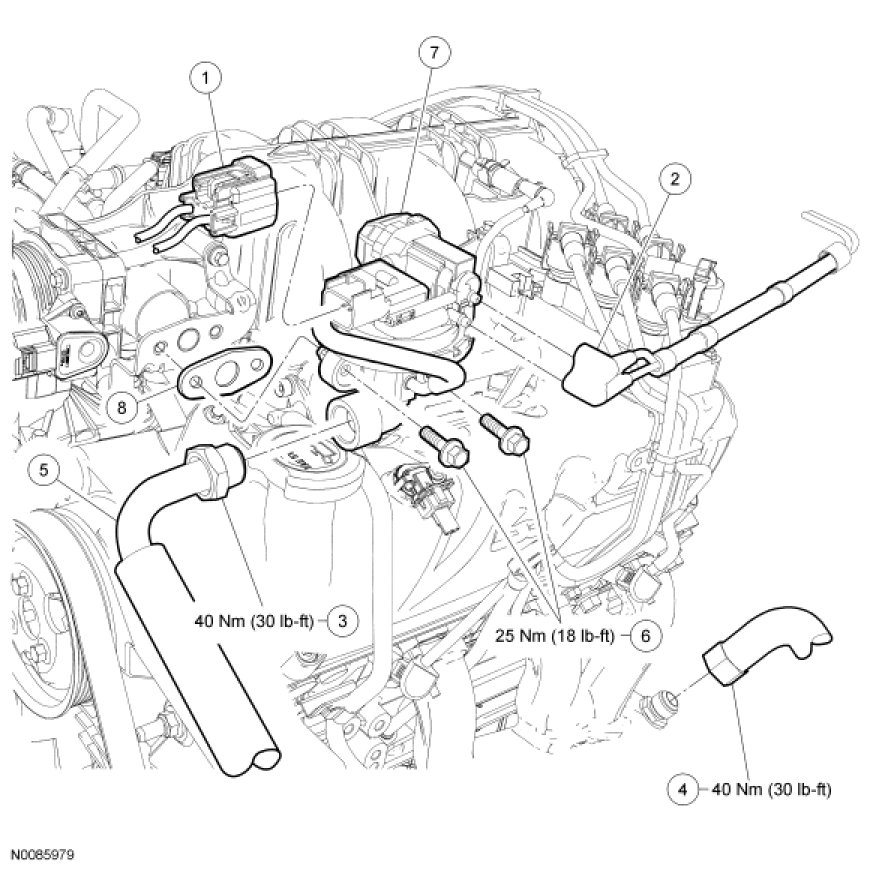

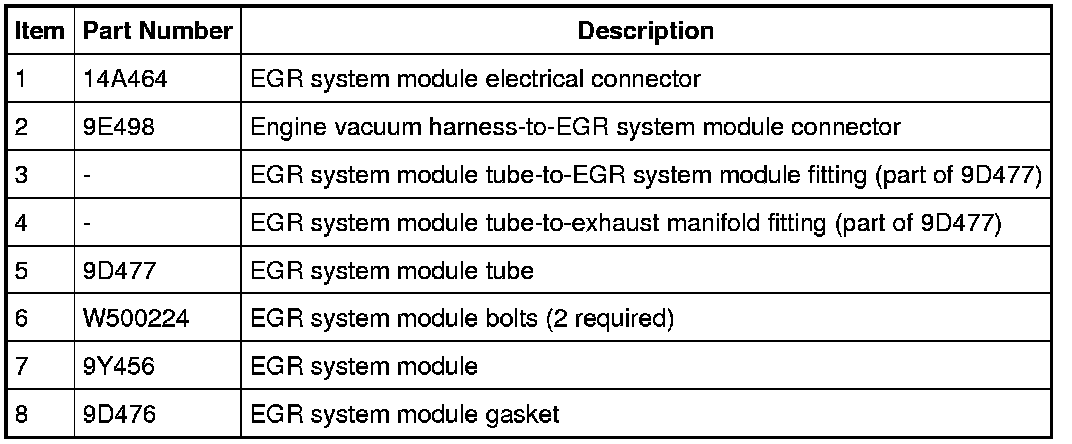

5.4L 4V Engine
