Pinpoint Test Q: Injection Control Pressure (ICP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

• ICP circuit open in the harness
• ICP circuit short to ground in the harness
• ICP circuit short to voltage in the harness
• ICP sensor
• powertrain control module (PCM)

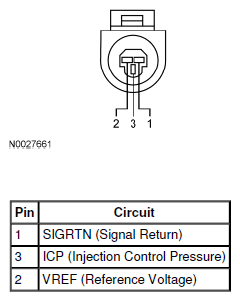

Fig 1: Injection Control Pressure (ICP) Sensor Connector

Courtesy of FORD MOTOR CO.

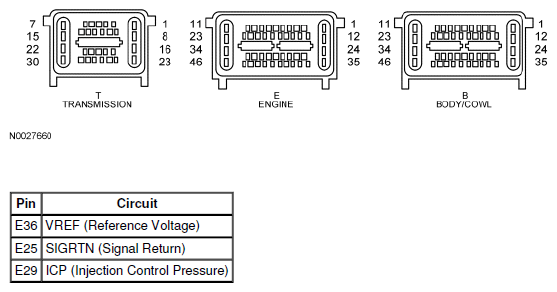

Fig 2: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
