Seat - Exploded View, Front
Cushion Side Shield - Manual Seat Track With Manual Recline

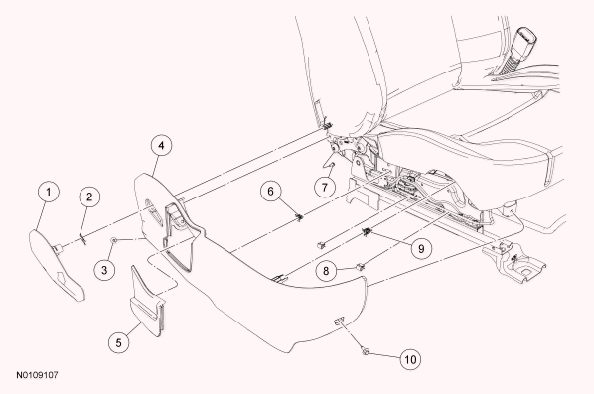

Fig 1: Exploded View Of Cushion Side Shield - Power Seat Track With Manual Recline And Manual Lumbar (6-Way Power)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 61199 | Manual recliner handle |
| 2 | W790123 | Manual recliner handle clip |
| 3 | W710752 | Scrivet |
| 4 | 62186 | Cushion side shield |
| 5 | 61693 | Cushion side shield cover |
| 6 | W703895 | Cushion side shield retainer |
| 7 | W506841 | Screw |
| 8 | W713010 | Cushion side shield retainer (2 required) |
| 9 | W714113 | Cushion side shield retainer |
| 10 | W505153 | Screw |
Cushion Side Shield - Power Seat Track With Manual Recline and Manual Lumbar (6-Way Power)

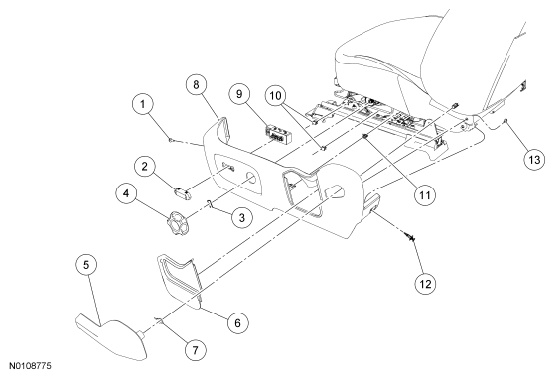

Fig 2: Exploded View Of Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar And Memory (10-Way Power)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W505153 | Screw |
| 2 | 14711 | Seat track control knob |
| 3 | W790123 | Manual lumbar handle clip |
| 4 | 62622 | Manual lumbar handle |
| 5 | 61199 | Manual recliner handle |
| 6 | 61693 | Cushion side shield cover |
| 7 | W790163 | Manual recliner handle clip |
| 8 | 62187 | Cushion side shield |
| 9 | 14A701 | Seat control switch |
| 10 | W713010 | Cushion side shield retainers (2 required) |
| 11 | W703895 | Cushion side shield retainer |
| 12 | W710752 | Scrivet |
| 13 | W506841 | Screw |
Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar and Memory (10-Way Power)
Fig 3: Exploded View Of Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar With Massage And Memory (14-Way Power)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 63259 | Memory SET switch bezel (if equipped) |
| 2 | W712973 | Memory SET switch bezel retainers (if equipped) (2 required) |
| 3 | 14776 | Memory SET switch (if equipped) |
| 4 | W505153 | Screw |
| 5 | 62187 | Cushion side shield |
| 6 | 14711 | Seat track control knob |
| 7 | 14711 | Backrest control knob |
| 8 | 61693 | Cushion side shield cover |
| 9 | W710752 | Scrivet |
| 10 | 14A701 | Seat control switch |
| 11 | W713010 | Cushion side shield retainers (2 required) |
| 12 | W703895 | Cushion side shield retainer |
| 13 | W506841 | Screw |
Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar With Massage and Memory (14-Way Power)

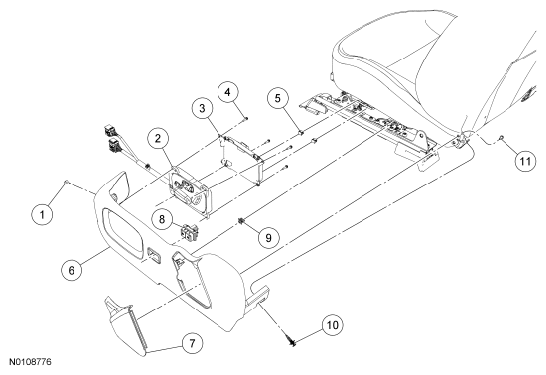

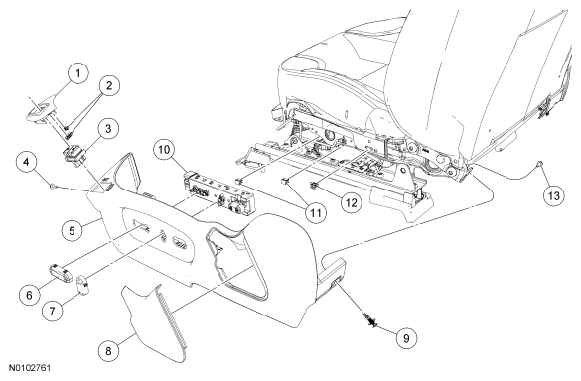

Fig 4: Exploded View Of Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar With Massage And Memory (14-Power)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W505153 | Screw |
| 2 | 14A701 | Seat control switch |
| 3 | 62257 | Seat control switch cover |
| 4 | W506824 | Screw (4 required) |
| 5 | W713010 | Cushion side shield retainers (2 required) |
| 6 | 62187 | Cushion side shield |
| 7 | 61693 | Cushion side shield cover |
| 8 | 14776 | Memory SET switch (if equipped) |
| 9 | W703895 | Cushion side shield retainer |
| 10 | W710752 | Scrivet |
| 11 | W506841 | Screw |

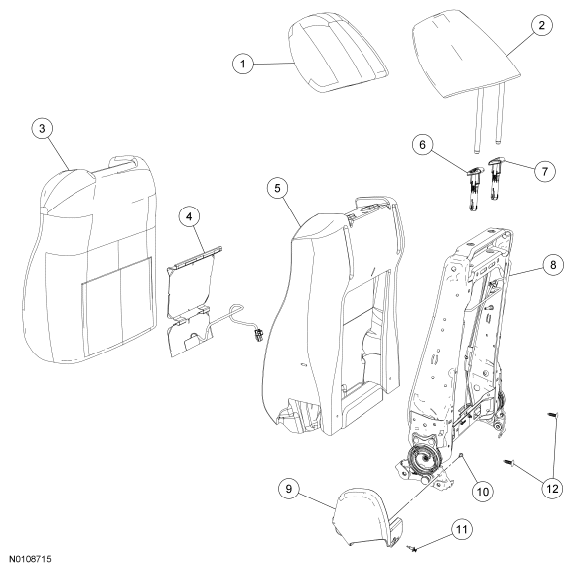

Seat Backrest - Trim Parts
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 610A60 | Head restraint |
| 3 | 64416 | Backrest trim cover |
| 4 | 14D696 | Backrest heater mat (if equipped) |
| 5 | 64810 | Backrest foam pad |
| 6 | 610A16 | Head restraint guide sleeve, master |
| 7 | 610A18 | Head restraint guide sleeve, slave |
| 8 | 61018 | Backrest frame |
| 9 | 62186 | Recliner cover |
| 10 | W506841 | Screw |
| 11 | W710752 | Scrivet |
| 12 | W706676 | Pin-type retainers (2 required) |
Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar

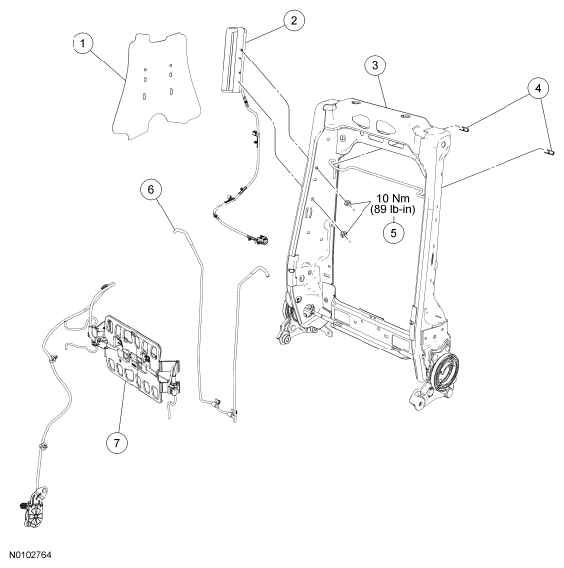

Fig 6: Exploded View Of Seat Backrest - Frame Parts With Manual Lumbar And Static Lumbar With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 610E38 | Deployment chute |
| 2 | 611D10 | Side air bag module |
| 3 | 61018 | Backrest frame |
| 4 | W790133 | Clips (if equipped) (2 required) |
| 5 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 6 | 64842 | Static lumbar (if equipped) |
| 7 | 65500 | Manual lumbar adjust assembly (if equipped) |
Seat Backrest - Frame Parts With Power Recline, Power Lumbar, Power Lumbar With Massage and Climate Controlled Seat System

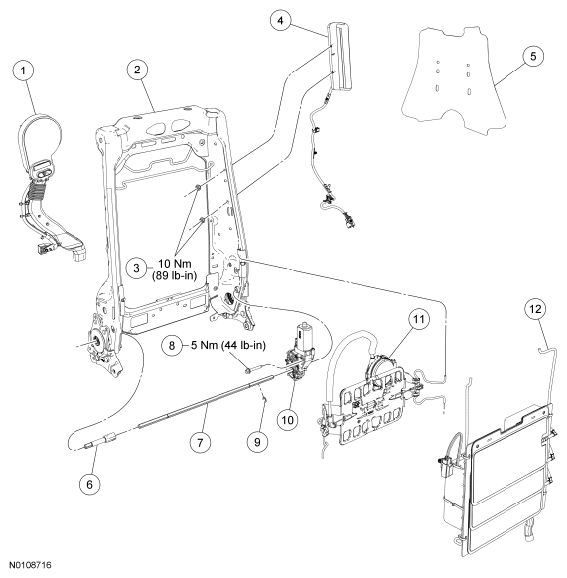

Fig 7: Exploded View Of Seat Backrest - Frame Parts With Power Recline, Power Lumbar, Power Lumbar With Massage And Climate Controlled Seat System With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 19N550 | Backrest Thermo-Electric Device (TED) (if equipped) |
| 2 | 61019 | Backrest frame |
| 3 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 4 | 611D11 | Side air bag module |
| 5 | 610E38 | Deployment chute |
| 6 | 613A68 | Short recliner shaft (if equipped) |
| 7 | 613A68 | Long recliner shaft (if equipped) |
| 8 | W701242 | Power recline motor bolt (if equipped) |
| 9 | 61479 | Recliner shaft E-clip (if equipped) |
| 10 | 14547 | Power recline motor (if equipped) |
| 11 | 65501 | Power lumbar adjust assembly (if equipped) |
| 12 | 65500 | Power lumbar with massage (if equipped) |

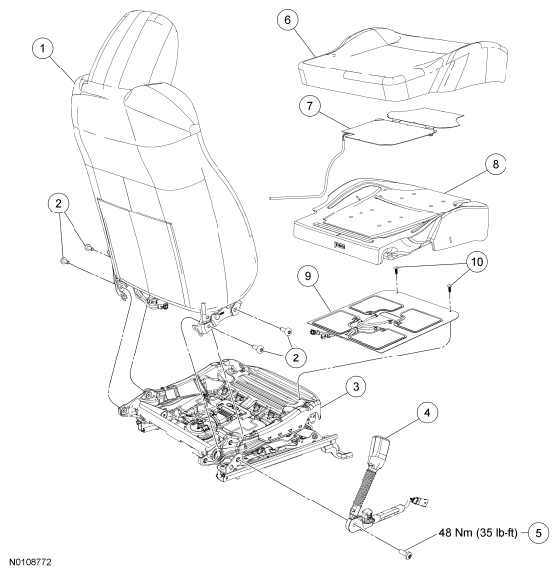

Seat Cushion - With Massage and Heat
NOTE:
Refer to SEAT BACKREST - FRONT for recliner-to-seat track bolt tightening sequence and torque specification.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Backrest assembly |
| 2 | W707385 | Recliner-to-seat track bolts (4 required) |
| 3 | 61711 | Seat track |
| 4 | 61203 | Safety belt buckle and pretensioner |
| 5 | W712978 | Safety belt buckle and pretensioner bolt |
| 6 | 62901 | Cushion cover |
| 7 | 14D696 | Cushion heater mat (if equipped) |
| 8 | 632A23 | Cushion foam pad |
| 9 | 603A99 | Seat cushion massage assembly (if equipped) |
| 10 | W706676 | Pin-type retainers (if equipped) (2 required) |
Passenger Seat Cushion With An OEM Occupant Classification Sensor (OCS) Bladder System and Heat
NOTE:
Refer to SEAT BACKREST - FRONT for recliner-to-seat track bolt tightening sequence and torque specification.

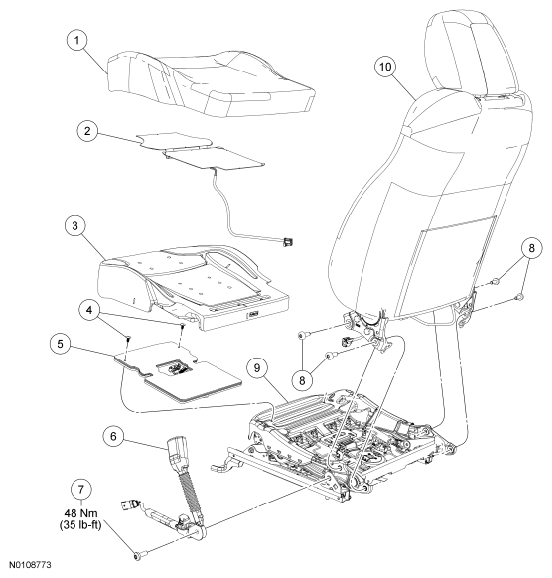

Fig 9: Exploded View Of Passenger Seat Cushion With An OEM Occupant Classifications Sensor (OCS) Bladder System And Heat With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | 14D696 | Cushion heater mat (if equipped) |
| 3 | 632A22 | Cushion foam pad |
| 4 | W706676 | Pin-type retainers (part of 14B422) (2 required) |
| 5 | 14B422 | OEM Occupant Classification Sensor (OCS) bladder |
| 6 | 61202 | Safety belt buckle and pretensioner |
| 7 | W713813 | Safety belt buckle and pretensioner bolt |
| 8 | 611A08 | Recliner-to-seat track bolts (4 required) |
| 9 | 61710 | Seat track |
| 10 | - | Backrest assembly |
Passenger Power Seat Track
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W713066 | Rivets (2 required) |
| 2 | - | Manual lumbar adjuster (part of 65500) |
| 3 | 61710 | Seat track |
| 4 | 14C724 | Heated seat module |
| 5 | W505153 | Screw |
| 6 | 14C724 | Dual Climate Controlled Seat Module (DCSM) |
| 7 | W505153 | Screws (2 required) |
| 8 | 14B056 | Occupant Classification System Module (OCSM) |
| 9 | W505153 | Screws |
| 10 | - | Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) |
| 11 | - | Cushion TED adapter plate (part of 19N550) |
| 12 | 19N550 | Cushion TED |
| 13 | 19E880 | Cushion TED filter |
| 14 | 14B416 | Seat track position sensor |
| 15 | - | Seat position sensor clip (part of 14B416) |

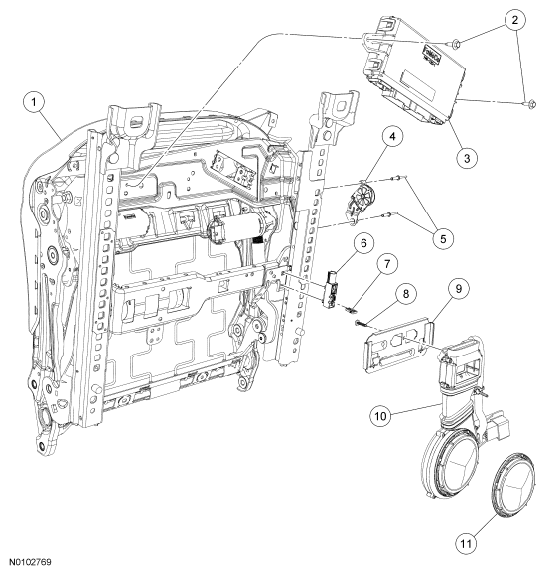

Driver Power Seat Track
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 61711 | Seat track |
| 2 | W505153 | Screws (2 required) |
| 3 | 14C708 | Driver Seat Module (DSM) |
| 4 | - | Manual lumbar adjuster (part of 65500) |
| 5 | W713066 | Rivets (2 required) |
| 6 | 14B416 | Seat track position sensor |
| 7 | - | Seat position sensor clip (part of 14B416) |
| 8 | - | Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) |
| 9 | - | Cushion TED adapter plate (part of 19N550) |
| 10 | 19N550 | Cushion TED |
| 11 | 19E880 | Cushion TED filter |
Passenger Seat Occupant Classification Sensor (OCS) Weight Sensor Bolt System Identification

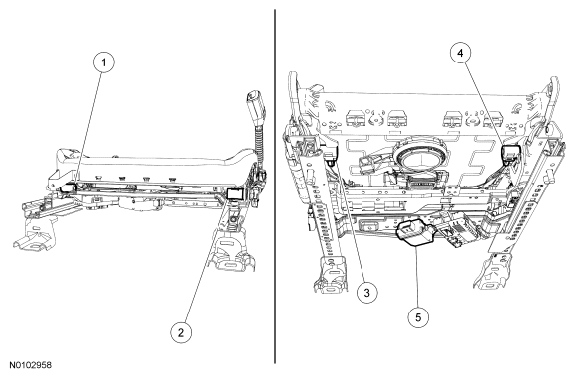

Fig 12: Identifying Passenger Seat Occupant Classifications Sensor (OCS) Weight Sensor Bolt System Identification
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Occupant Classification Sensor (OCS) weight sensor bolt A (part of 61710) |
| 2 | - | OCS weight sensor bolt D (part of 61710) |
| 3 | - | OCS weight sensor bolt C (part of 61710) |
| 4 | - | OCS weight sensor bolt B (part of 61710) |
| 5 | 14B056 | Occupant Classification System Module (OCSM) |

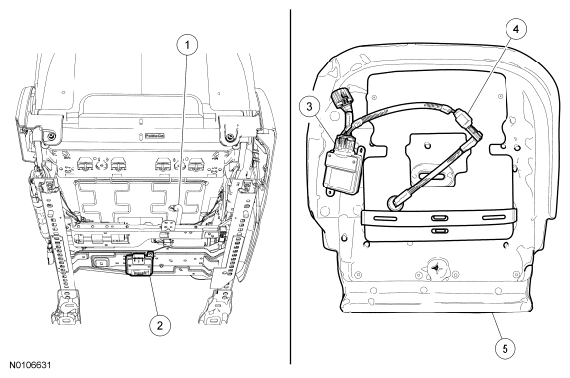

Passenger Seat Occupant Classification Sensor (OCS) Bladder System Identification
NOTE:
Power seat track shown in illustration, manual similar.
Fig 13: Identifying Passenger Seat Occupant Classification Sensor (OCS) Bladder System Identification
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Occupant Classification Sensor (OCS) pressure sensor hose (all with bladder system) (part of OEM) |
| 2 | - | Disconnected OEM Occupant Classification System Module (OCSM) |
| 3 | - | OCS service kit jumper harness connector glued to the OCSM (part of 14B422) |
| 4 | - | OCS service kit jumper harness connector shrink tubed to the OCS pressure sensor (part of 14B422) |
| 5 | - | OCS service kit bladder heat staked to the cushion foam pad (part of 14B422) |
- For additional information, refer to the appropriate procedure(s).
