Rain Sensor Module Connector - C914
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rain Sensor Module Connector - C914

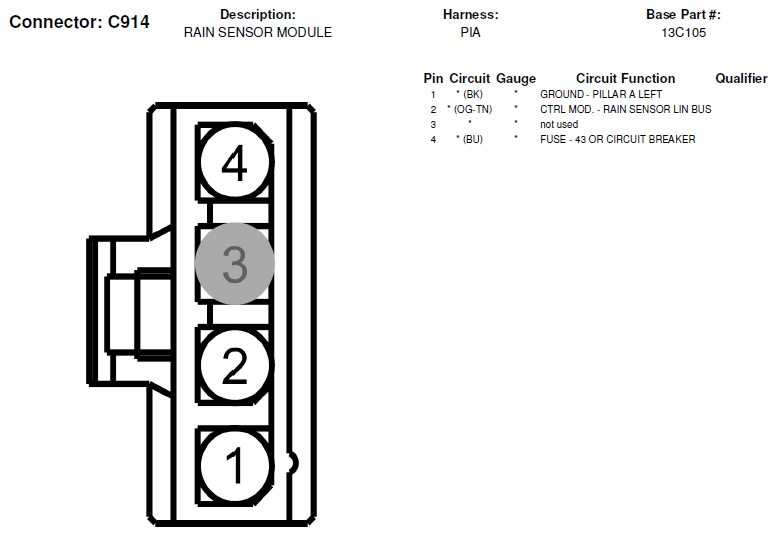

Fig 1: Rain Sensor Module Connector End View (C914)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
