Main Control Components

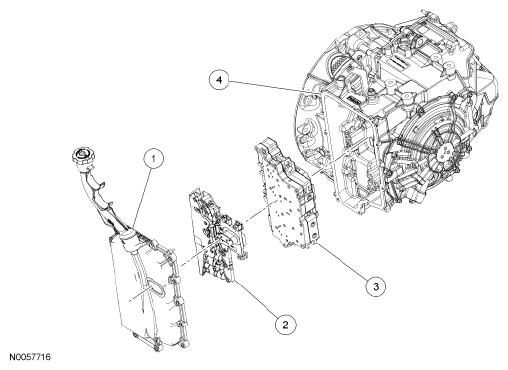

Fig 1: Identifying Main Control Components
G06068243Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7G004 Main control cover assembly
2 7Z369 Solenoid body
3 7A100 Main control valve body
4 7005 Transaxle case
