Main Control Valve Body: Installation

  1. NOTE: If cleaning the main control assembly or inspecting the valves, refer to MAIN CONTROL VALVE BODY . If installing a new main control assembly, continue with this procedure.
    NOTE: Make sure that the manual pin (part of the TR  sensor) is correctly installed in the manual valve.

    Position the TSS  , OSS  and TR  sensor wiring harnesses aside and install the main control valve body.

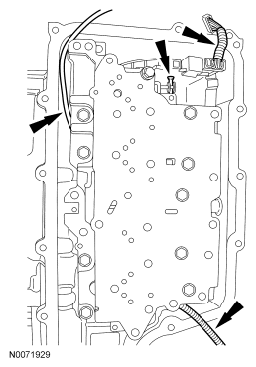

    Fig 1: Locating TSS, OSS And TR Sensor Wiring Harnesses
    G06260012Courtesy of FORD MOTOR CO.
  2. Inspect the manual pin to make sure it is correctly installed in the manual valve. If not, pull the valve body off the transaxle case. Correctly install the manual pin in the manual valve and position the valve body in place.
    Fig 2: Locating Manual Pin
    G06067687Courtesy of FORD MOTOR CO.
  3. Install the TR  sensor detent spring and the 10 bolts. Tighten the valve body bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).
    Fig 3: Locating TR Sensor Detent Spring
    G06067688Courtesy of FORD MOTOR CO.
  4. NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
    NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
    NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.

    Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.

    Fig 4: Locating Alignment Tabs
    G06067684Courtesy of FORD MOTOR CO.
  5. NOTE: Make sure not to pinch the Turbine Shaft Speed (TSS), Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
    NOTE: Install the different length bolts in the locations noted during disassembly.

    Install the solenoid body and the 11 bolts.

    1. 42 mm (1.653 in) bolt
    2. 63 mm (2.48 in) bolts
    3. 80 mm (3.149 in) bolts
    4. 95 mm (3.74 in) bolts
    Fig 5: Identifying Solenoid Body And Bolts
    G06067690Courtesy of FORD MOTOR CO.
  6. Tighten the solenoid body bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).
    Fig 6: Identifying Solenoid Body Bolts In Sequence
    G06067691Courtesy of FORD MOTOR CO.
  7. Route the OSS  sensor wiring harness and connect the electrical connector.
    Fig 7: Locating OSS Sensor Wiring Harness And Electrical Connector
    G06067692Courtesy of FORD MOTOR CO.
  8. Connect the TR  sensor electrical connector.
    1. Connect the electrical connector.
    2. Slide the locking tab over.
    Fig 8: Identifying TR Sensor Electrical Connector
    G06067693Courtesy of FORD MOTOR CO.
  9. Connect the TSS  sensor electrical connector.
    Fig 9: Locating TSS Sensor Electrical Connector
    G06067694Courtesy of FORD MOTOR CO.
  10. Install the main control cover.
