Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

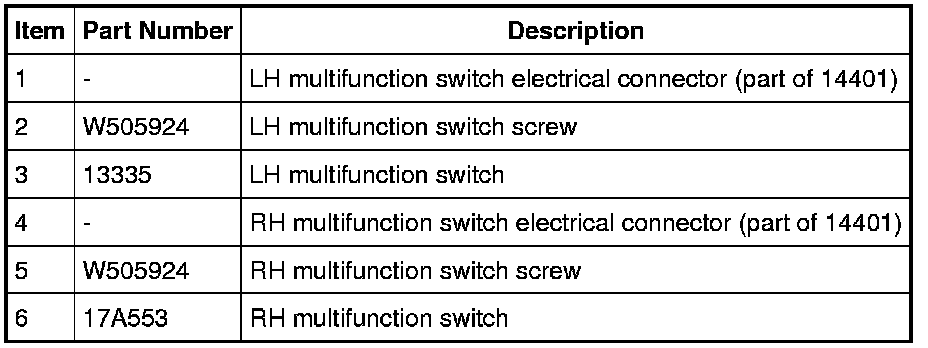

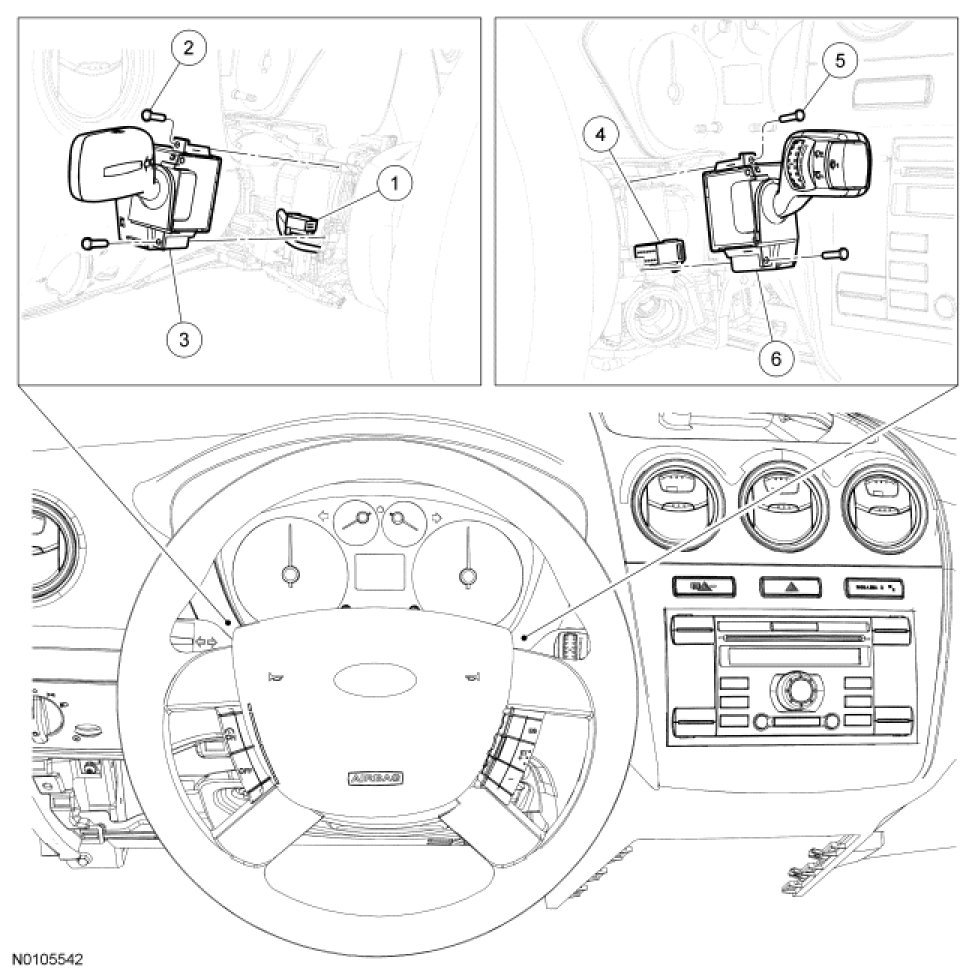

Removal and Installation

All vehicles

1. Remove the steering column opening trim panel. For additional information, refer to the Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Remove the upper and lower steering column shrouds. For additional information, refer to Steering Column.

LH multifunction switch only

3. Disconnect the LH multifunction switch electrical connector.

4. Remove the 2 LH multifunction switch screws and the multifunction switch.

RH multifunction switch only

5. Disconnect the RH multifunction switch electrical connector.

6. Remove the 2 RH multifunction switch screws and the multifunction switch.

All vehicles

7. To install, reverse the removal procedure.
