Cruise Control Switch: Notes

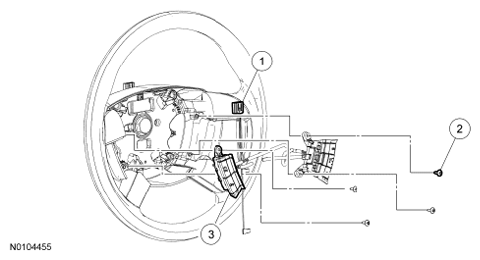

Fig 1: Identifying Cruise Control Switches With Screws And Electrical Connector
G06328363Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Cruise control switches electrical connector (part of 9C888)
2 - Cruise control switches screws (4 required)
3 9C888 Cruise control switches
