Speech Recognition Module Connector - C2307
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Speech Recognition Module Connector - C2307

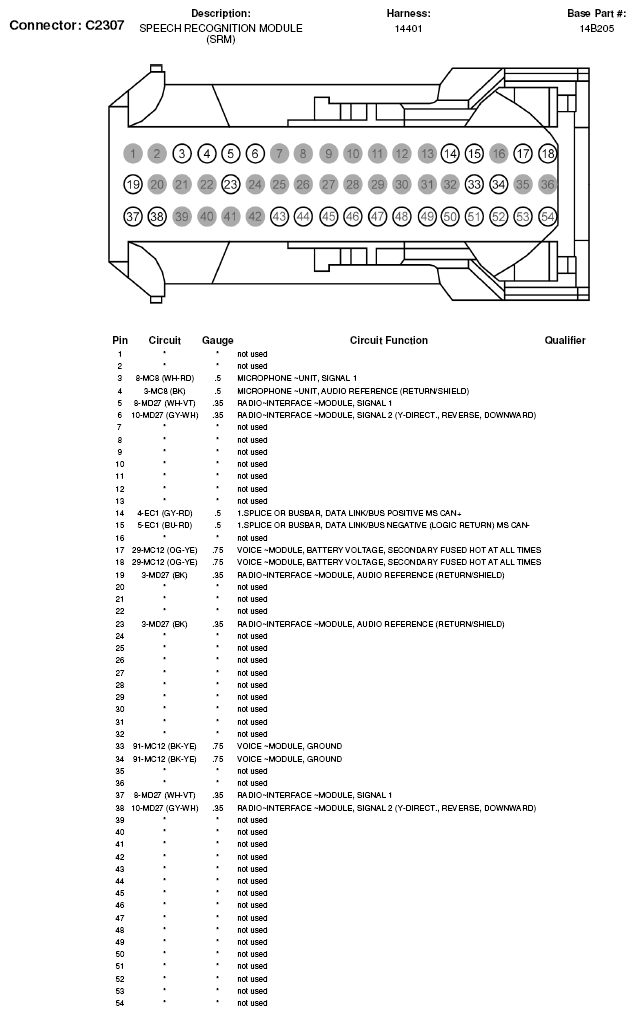

Fig 1: Speech Recognition Module Connector End View (C2307)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
