Transaxle Support Insulator - Anti-Roll: Notes

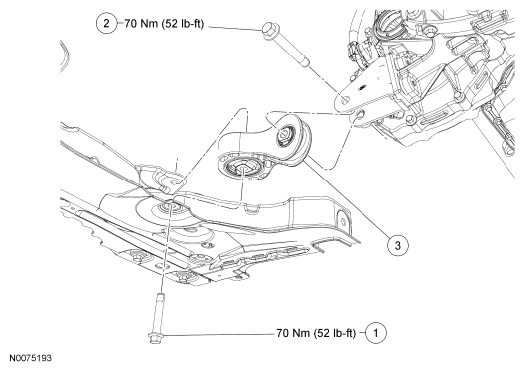

Fig 1: Transaxle Support Insulator Replacement Components -- Anti-Roll With Torque Specifications
G06292850Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W702826 Roll restrictor-to-subframe bolt
2 W702801 Roll restrictor-to-transaxle bracket bolt
3 6P082 Roll restrictor
