Master window adjust switch: Schematic

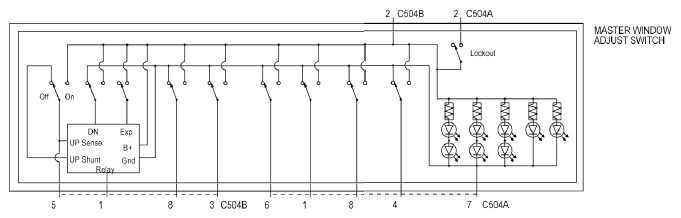

Fig 1: Master Window Adjust Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
