Multifunction switch: Schematic

Fig 1: Multifunction Light Switch - Schematic
G07326232Courtesy of FORD MOTOR CO.


Fig 1: Multifunction Light Switch - Schematic
G07326234Courtesy of FORD MOTOR CO.

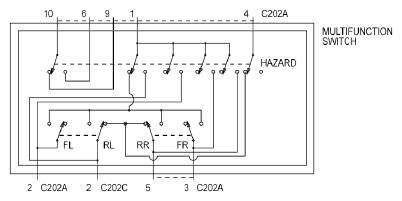

Fig 1: Multifunction Light Switch - Schematic
G07326236Courtesy of FORD MOTOR CO.
