Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: RH shown in the illustration, LH similar.

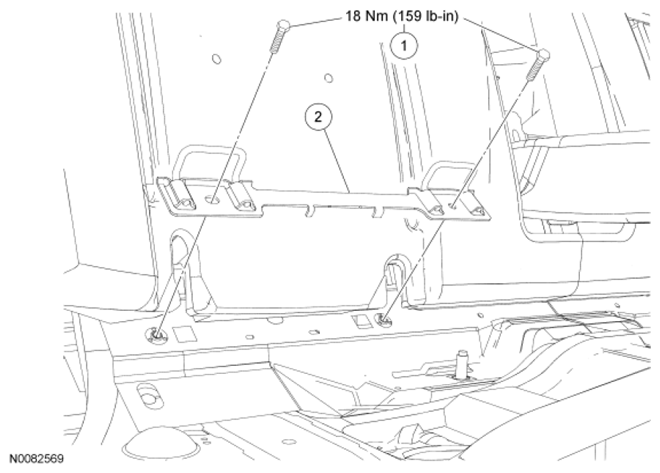

Fig 1: Identifying Child Safety Seat Tether Anchor Components - Latch
G06566743Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W707079 Lower anchors and tethers for children bolts (2 required)
2 601B28 Lower anchors and tethers for children
