Camshaft Position Sensor: Service and Repair

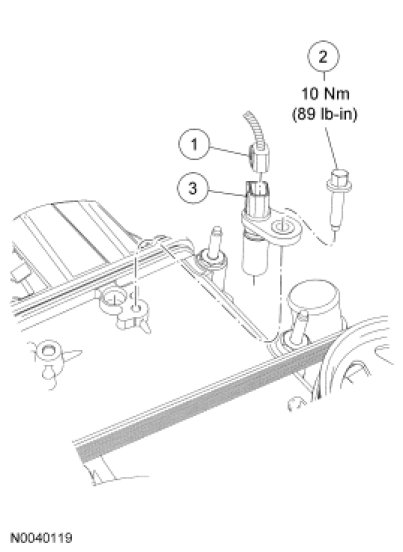

Camshaft Position (CMP) Sensor

Removal and Installation

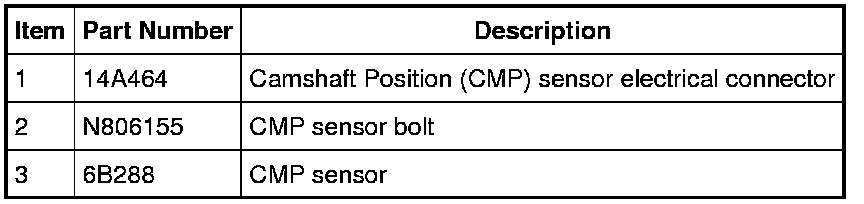

1. Disconnect the Camshaft Position (CMP) sensor electrical connector.

2. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
