Crossmember - Exploded View

Crossmember - Exploded View

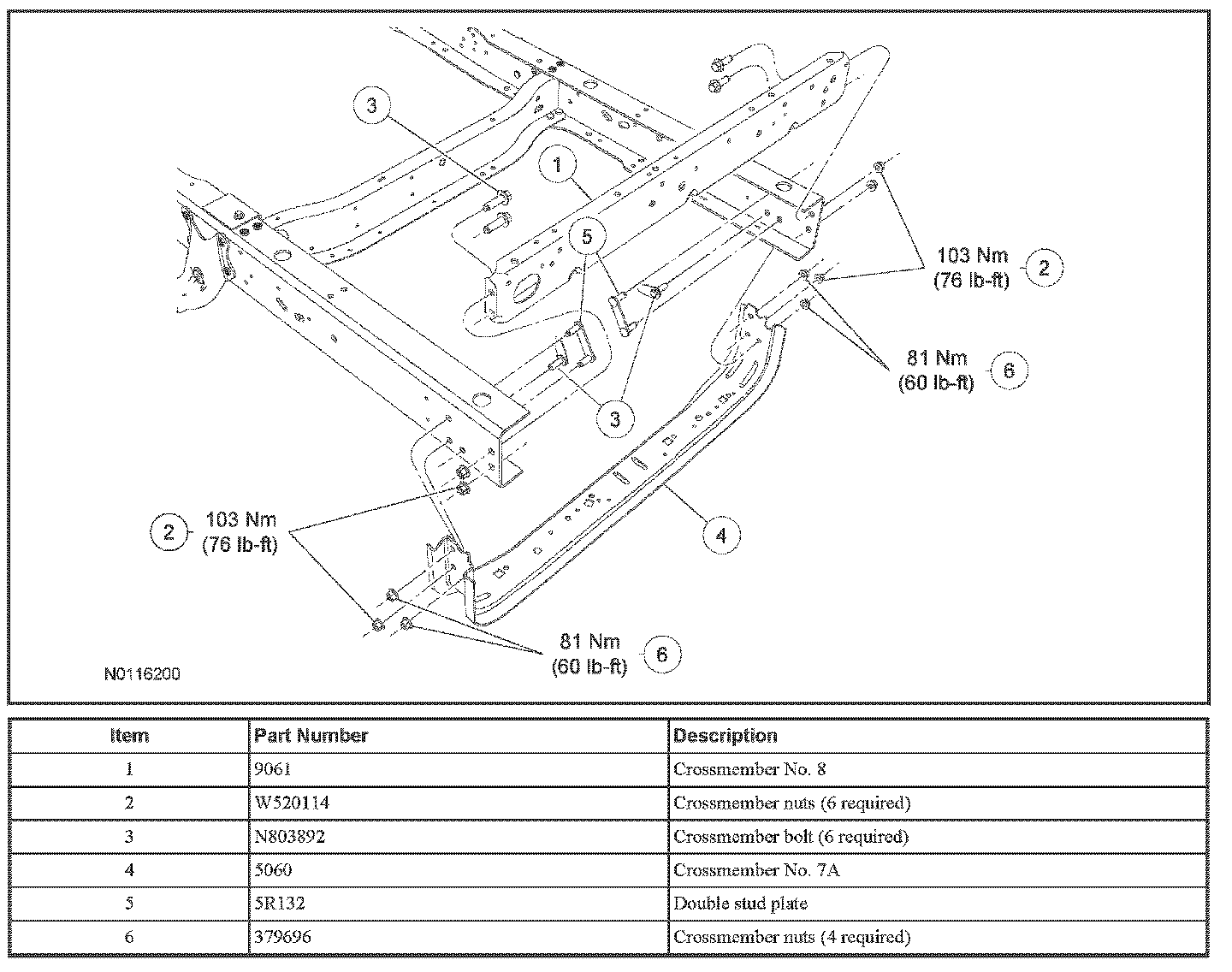

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 3505.2 mm (138 in) and 158 in Wheelbase

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 3505 mm (138 in) and 158 in Wheelbase:

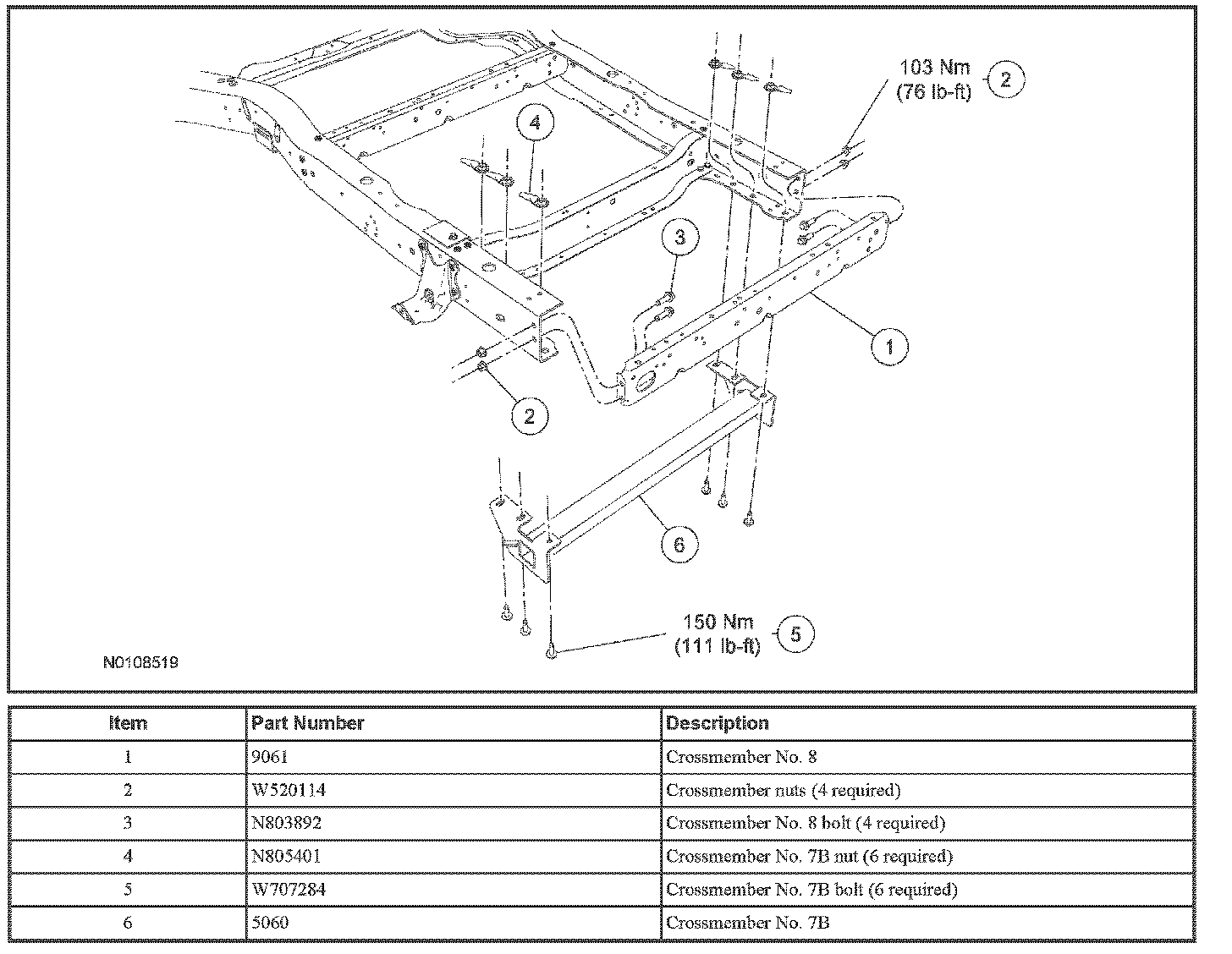

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 176 in Wheelbase

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 176 in Wheelbase:

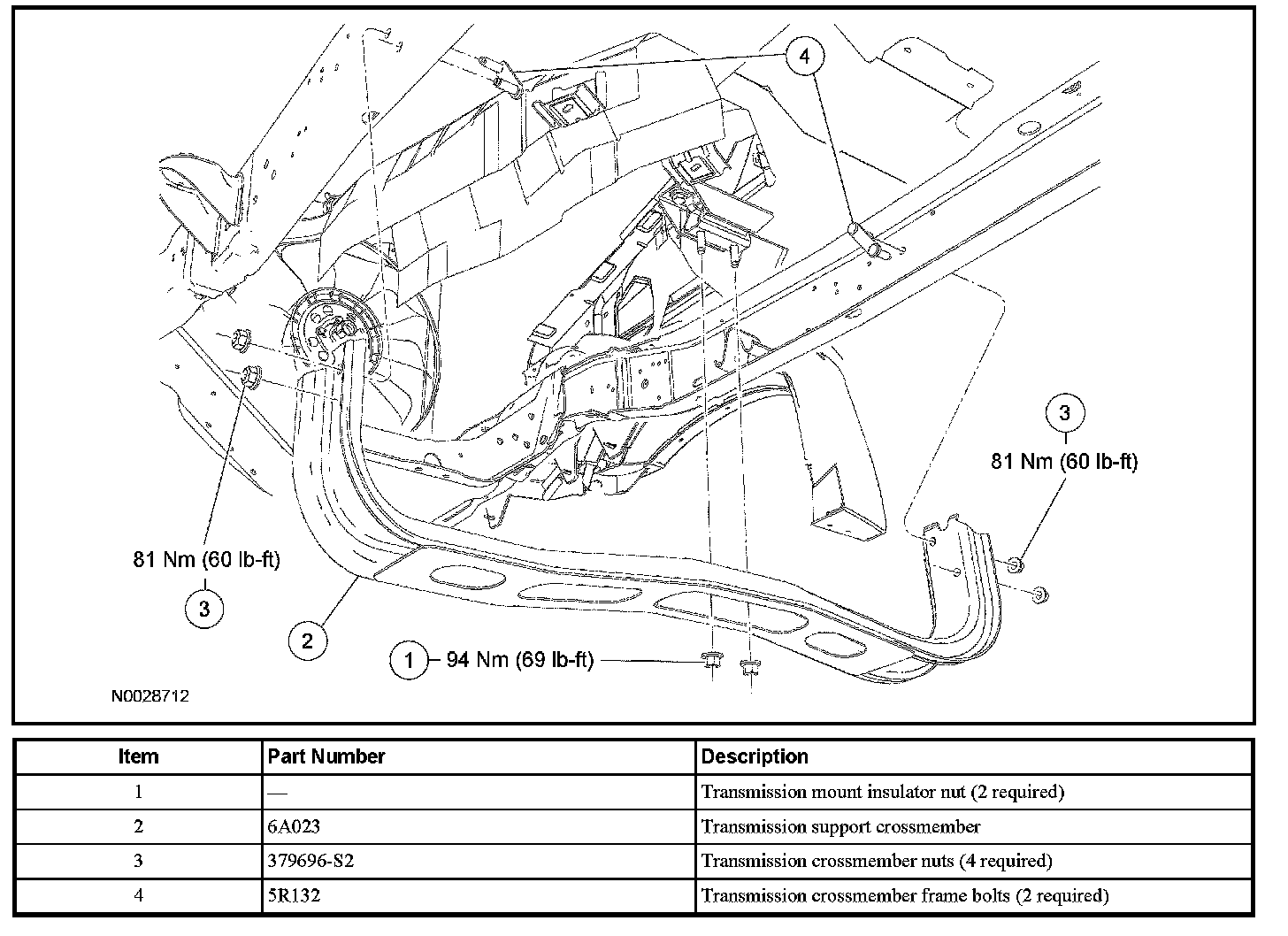

Transmission Support Crossmember

Transmission Support Crossmember:

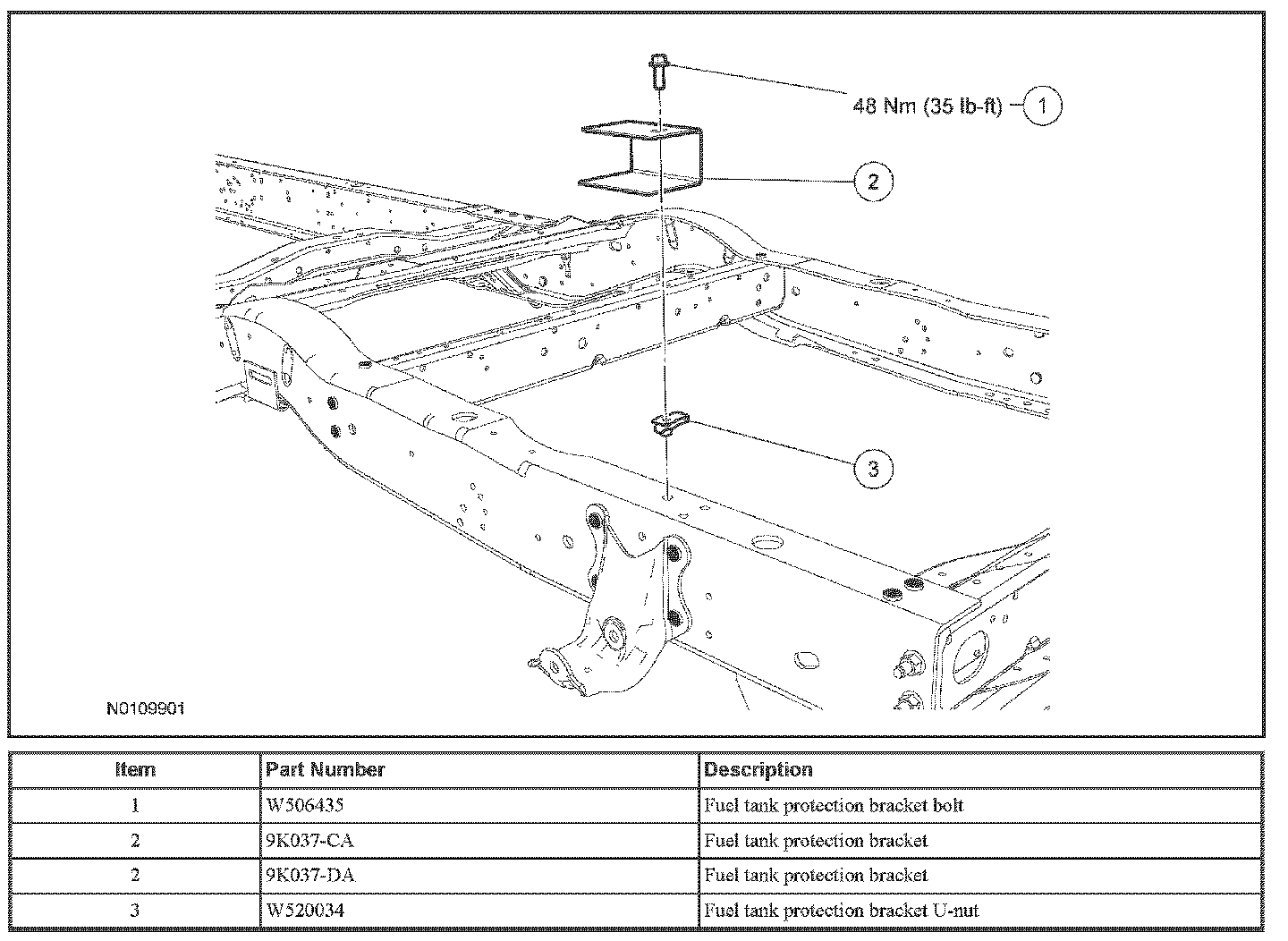

Fuel Tank Protection Bracket - Upper

Fuel Tank Protection Bracket - Upper:

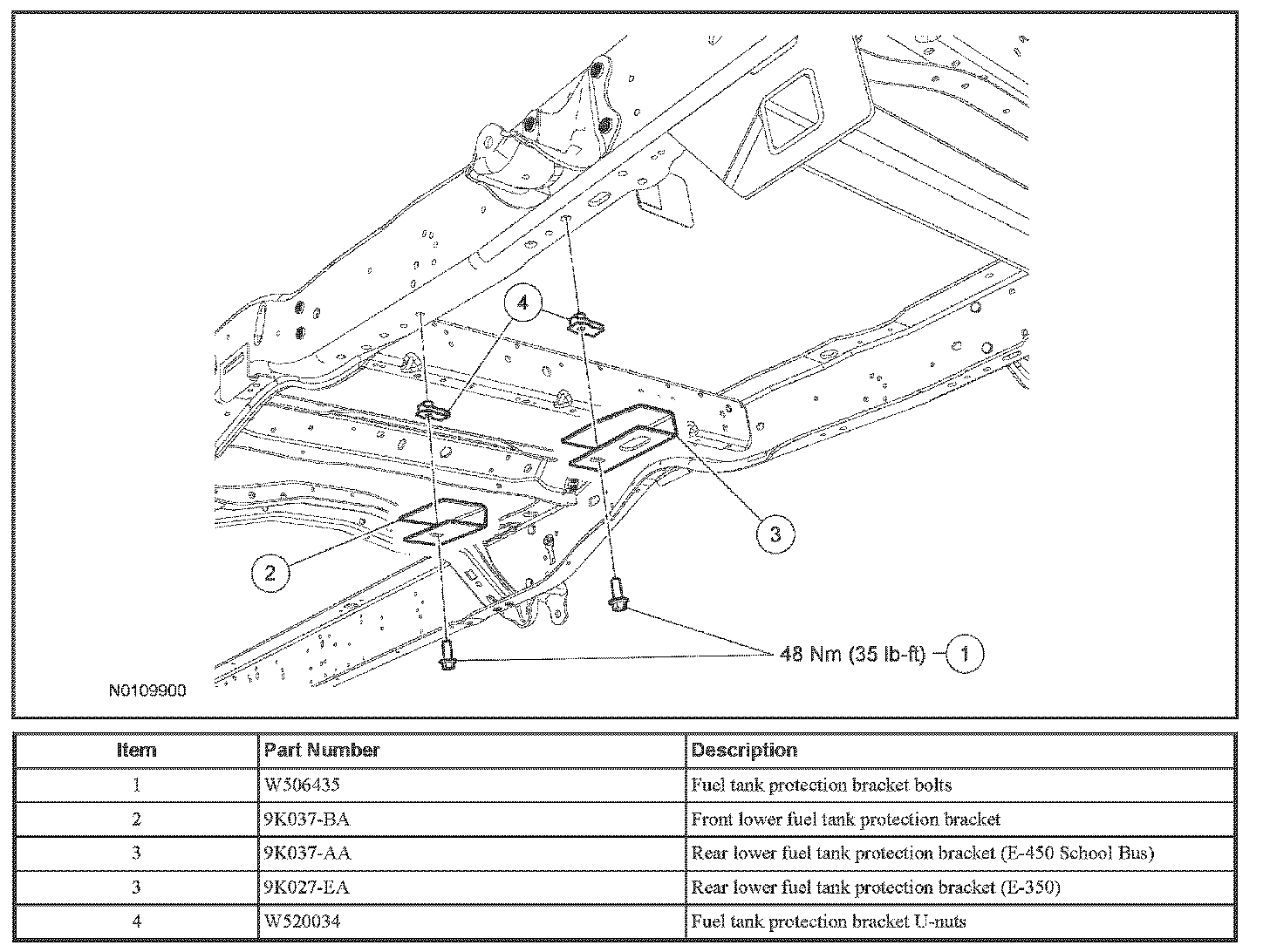

Fuel Tank Protection Brackets - Lower

Fuel Tank Protection Bracket - Lower:

Removal and Installation
1. For additional information on the transmission support crossmember, refer to Transmission Support Crossmember.
2. For information on rivet replacement, refer to Rivet Replacement.
3. For information on the fuel tank protection brackets, refer to Fuel Tank Protection Bracket.
