Accessory Protocol Interface Module (APIM)




Accessory Protocol Interface Module (APIM)

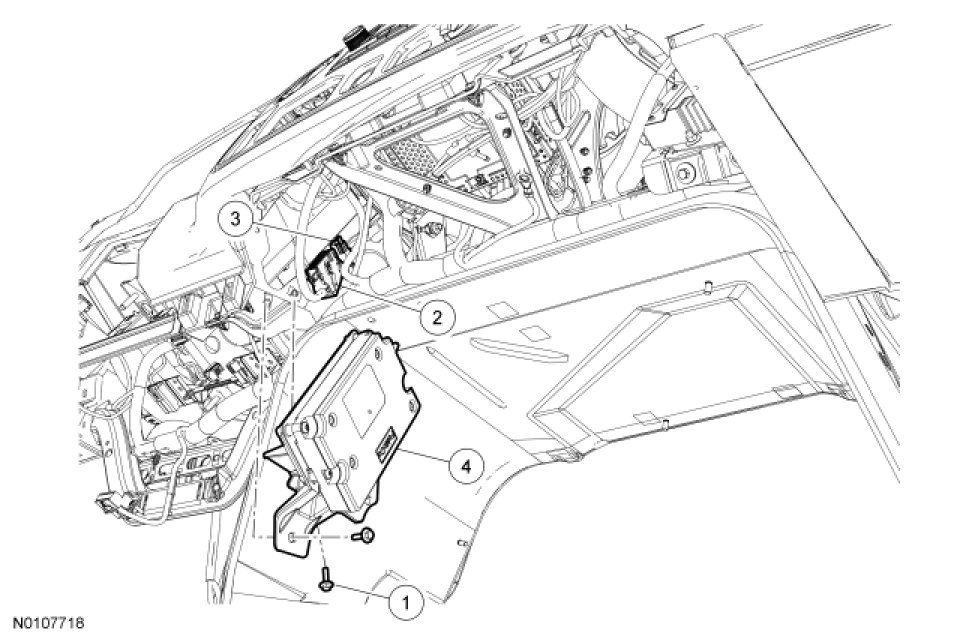

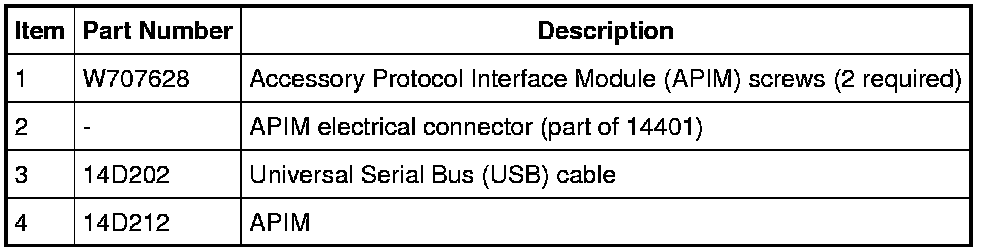

Removal and Installation

1. Remove the engine cover. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. Disconnect the Universal Serial Bus (USB) cable and the electrical connector.

3. Remove the 2 screws and the APIM.

4. To install, reverse the removal procedure.
