In-Dash Computer




In-Dash Computer

NOTE: The 6-CD Audio Control Module (ACM) is shown. The in-dash computer is similar, and mounts in the same physical location.











Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Cluster Finish Panel.

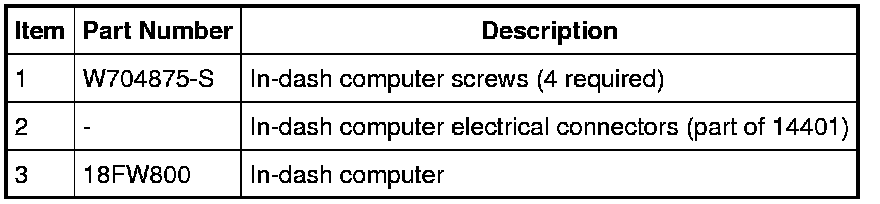

2. Remove the 4 screws and the in-dash computer.
- Disconnect the electrical connectors.

3. NOTICE: Make sure the modem-antenna cable is routed to allow enough clearance for the in-dash computer. Failure to follow this instruction may result in damage to the modem-antenna cable.

To install, reverse the removal procedure.
