Start/Stop Switch

Start/Stop Switch









Removal and Installation

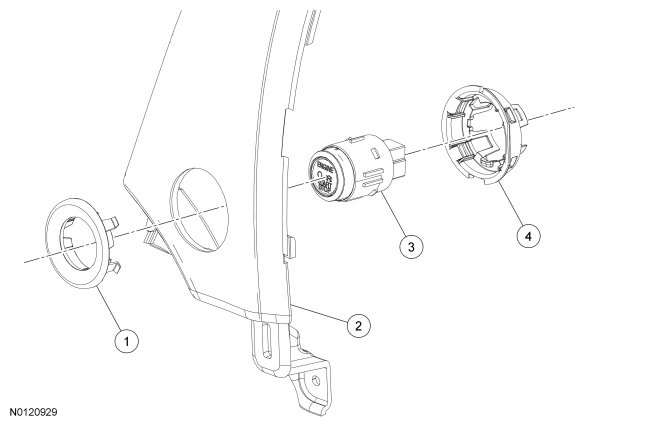

1. Remove the Instrument Panel Cluster (IPC) top cover. For additional information, refer to the Exploded View in Instrument Panel and Console Instrument Panel - Exploded View.

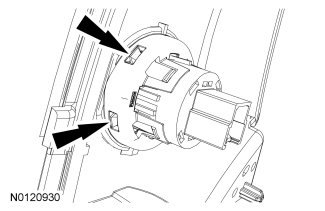

2. Using a pocket screwdriver (or similar tool), disengage the 4 locking tabs from the start/stop switch retainer.





3. Remove the start/stop switch.

4. To install, reverse the removal procedure.
