Front Controls/Display Interface Module (FCDIM)

Front Controls/Display Interface Module (FCDIM)









Removal and Installation

1. NOTE: Module configuration is required when a new Front Control/Display Interface Module (FCDIM) is being installed.
Upload the FCDIM (Front Control/Display Interface Module) configuration information to the scan tool. to carry out Programmable Module Installation (PMI) Programming and Relearning.

2. Remove the Front Controls Interface Module (FCIM) refer to Front Controls Interface Module (FCIM) Front Controls Interface Module (FCIM).

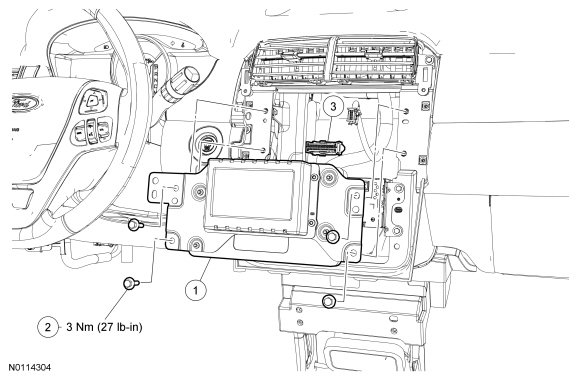

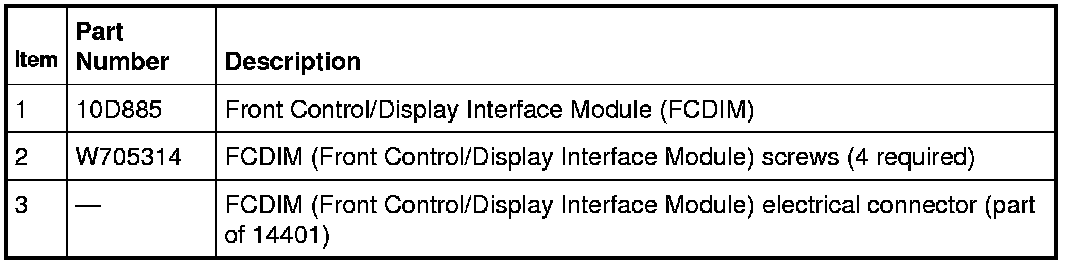

3. Remove the 4 screws and remove the FCDIM (Front Control/Display Interface Module).
- Disconnect the electrical connectors.


4. To install, reverse the removal procedure.
- Download the configuration information to the FCDIM (Front Control/Display Interface Module). to carry out PMI (Programmable Module Installation) Programming and Relearning.
