Power Mirror Switch: Service and Repair

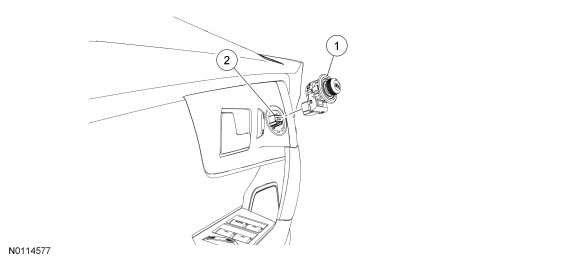

Exterior Mirror Control Switch

NOTE: Edge shown, MKX similar.









Removal and Installation

1. NOTICE: Make sure to using a non-marring tool when removing the exterior mirror switch. Otherwise, damage to the door trim panel may occur.

Remove the exterior mirror control switch.
- Insert a non-marring tool between the door trim panel and the exterior mirror control switch and gently pry outward.
