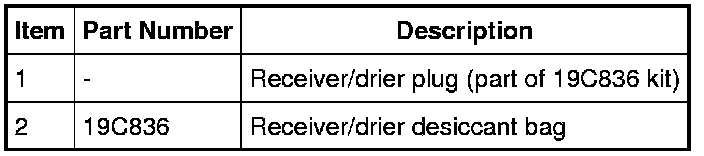

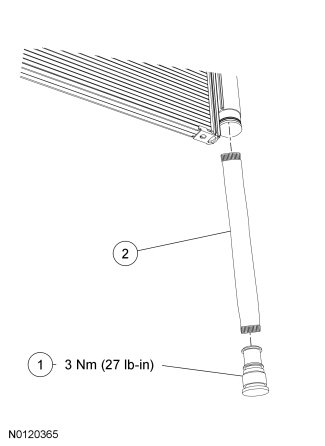

Air Conditioning - Exploded View

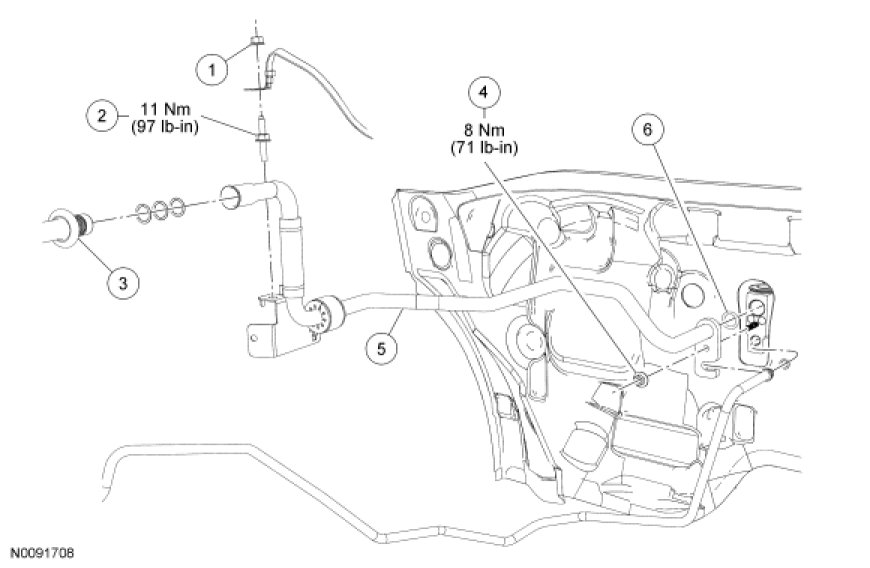

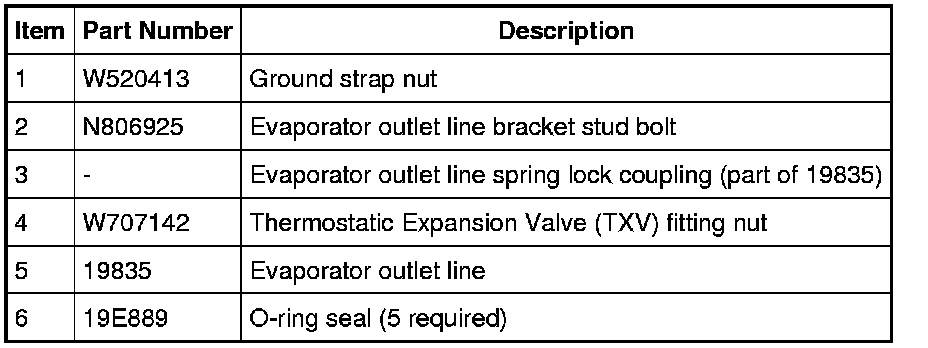

Air Conditioning - Exploded View

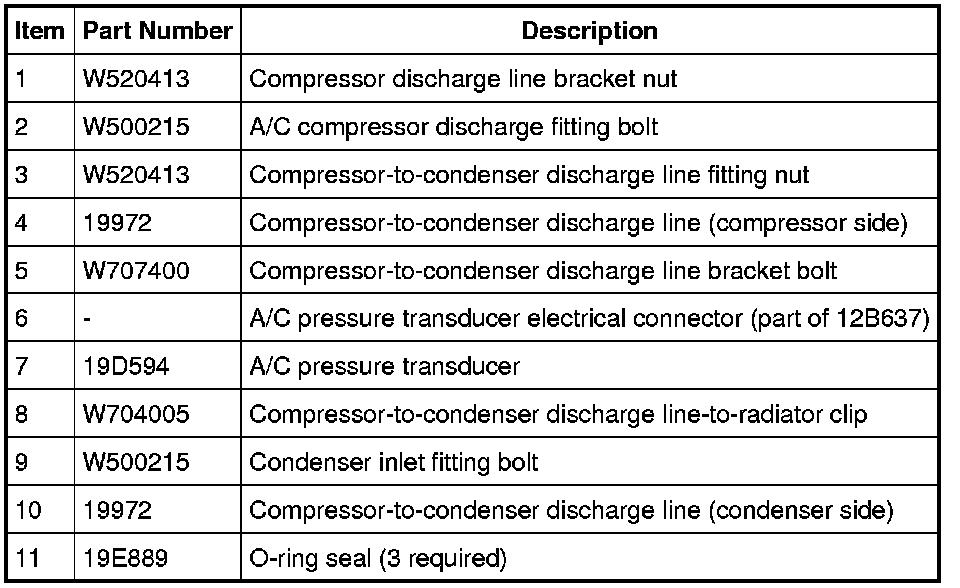

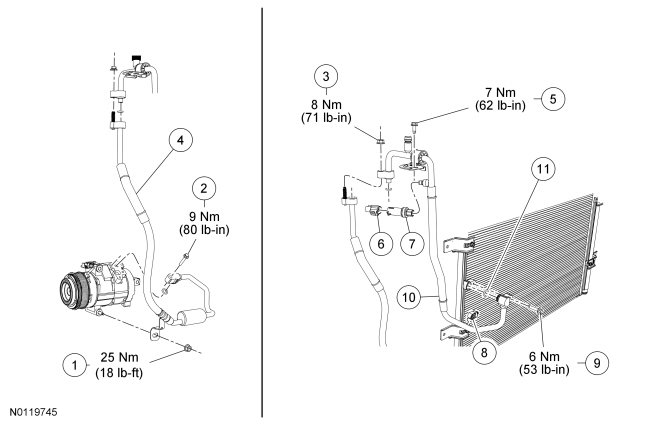

Compressor-to-Condenser Discharge Lines

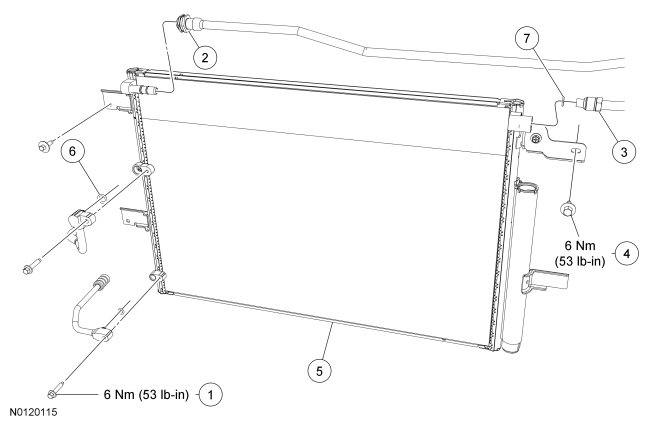

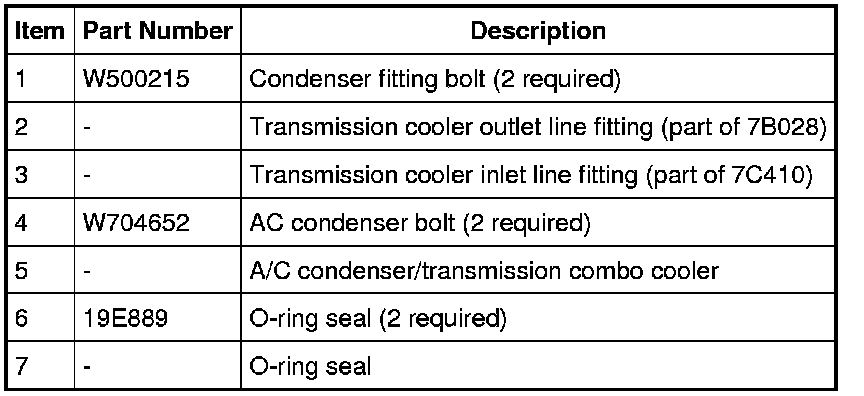

A/C Condenser/Transmission Combo Cooler

























1. NOTE: The O-ring seals used on this vehicle are not interchangeable with all similarly sized O-ring seals used on other Ford products. Use only the O-ring seals that are specified for this vehicle. Refer to the Ford Catalog Advantage(TM).

Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
