Tire Pressure Module: Service and Repair

Tire Pressure Monitor (TPM) Module









Removal and Installation

NOTICE: Electronic modules are sensitive to static electrical charges. Damage may result if exposed to these charges.

1. Remove the LH quarter trim panel.

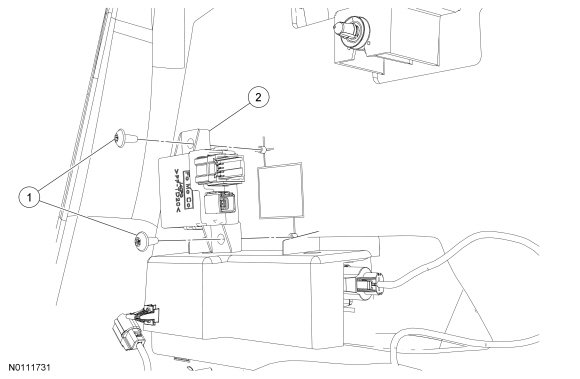

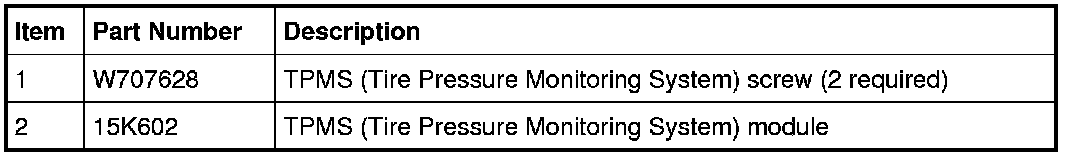

2. Remove the 2 TPMS (Tire Pressure Monitoring System) screws and the TPMS (Tire Pressure Monitoring System) module.

3. To install, reverse the removal procedure
