Roof opening panel switch: Schematic

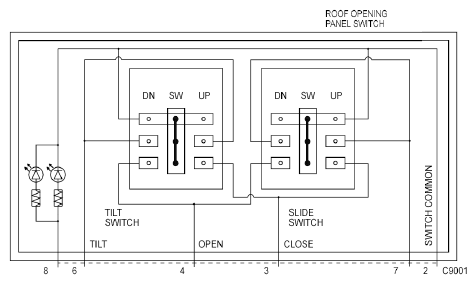

Fig 1: Roof Opening Panel Switch - Schematic
Courtesy of FORD MOTOR CO.
