General Procedures: Sprockets

  1. Inspect the sprockets for cracks and worn or chipped teeth.

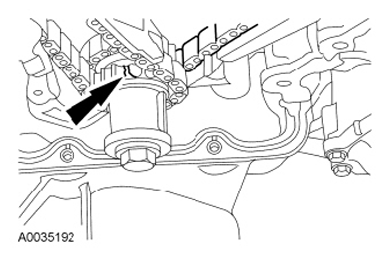

    Fig 1: Locating Sprocket Crack
    G07397776Courtesy of FORD MOTOR CO.
