Special Tool(s)

SPECIAL TOOLS REFERENCE CHART

G07397831Courtesy of FORD MOTOR CO.
 Pressure Gauge, Valve/Clutch Spring
303-006 (TOOL-6513-DD) or equivalent
NOTE: Refer to the ENGINE MECHANICAL - 3.5L or ENGINE MECHANICAL - 3.7L for the specification.
  1. Use the Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.

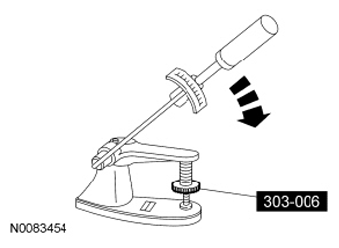

    Fig 1: Checking Valve Spring Correct Strength
    G07397832Courtesy of FORD MOTOR CO.
