Accessory Protocol Interface Module Connector - C2383

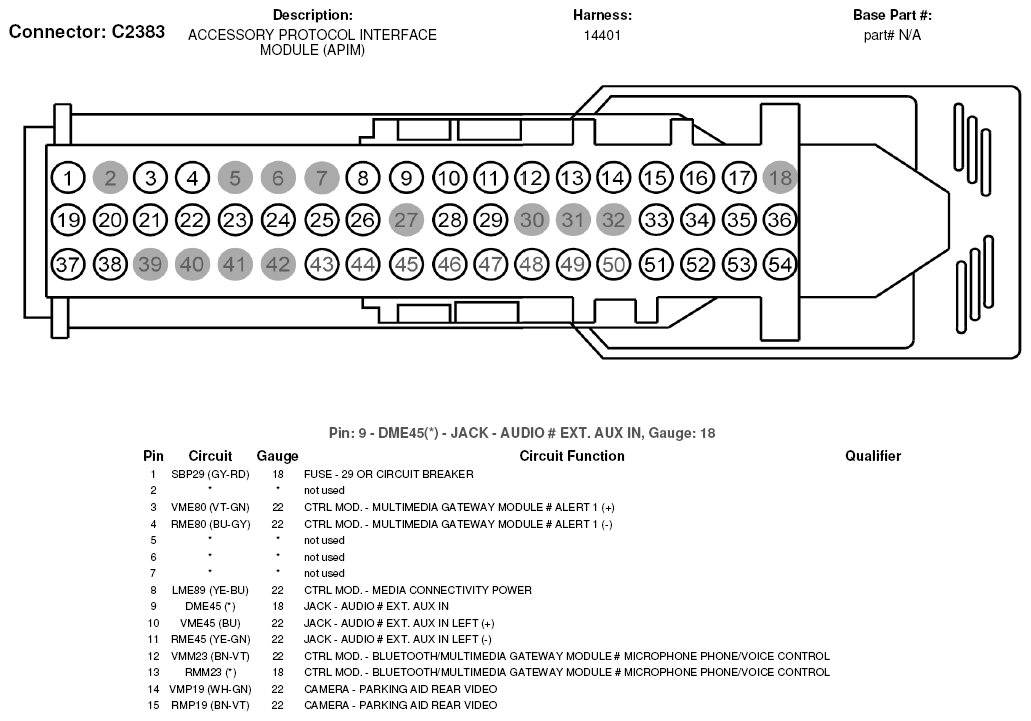

Fig 1: Accessory Protocol Interface Module Connector End View (C2383) (1 Of 2)

Courtesy of FORD MOTOR CO.

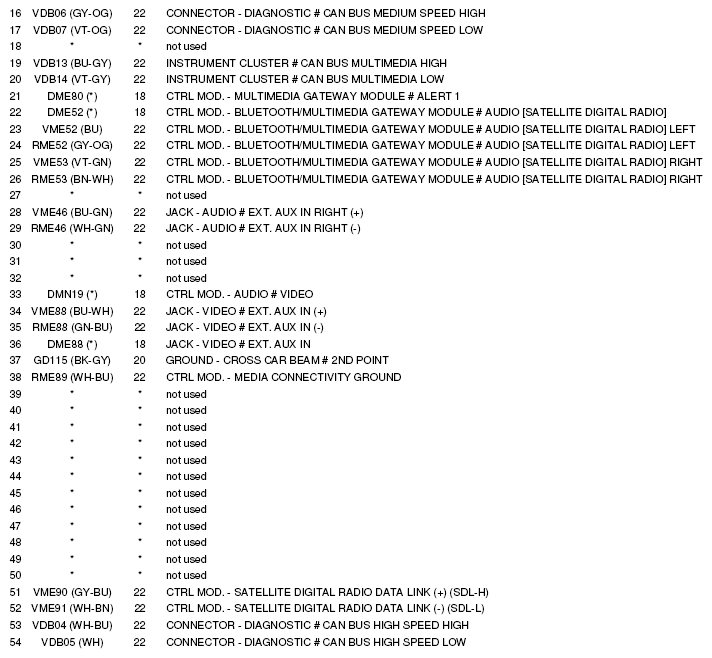

Fig 2: Accessory Protocol Interface Module Connector End View (C2383) (2 Of 2)

Courtesy of FORD MOTOR CO.
