Driver Safety Canopy Module Connector - C9018

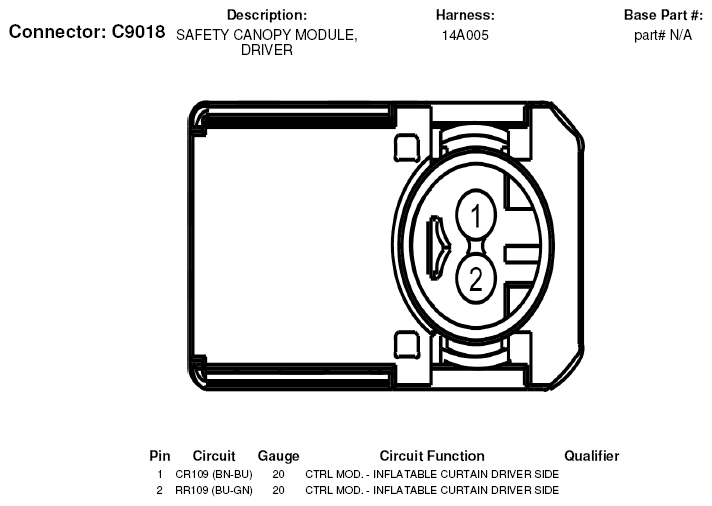

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G07327323Courtesy of FORD MOTOR CO.
