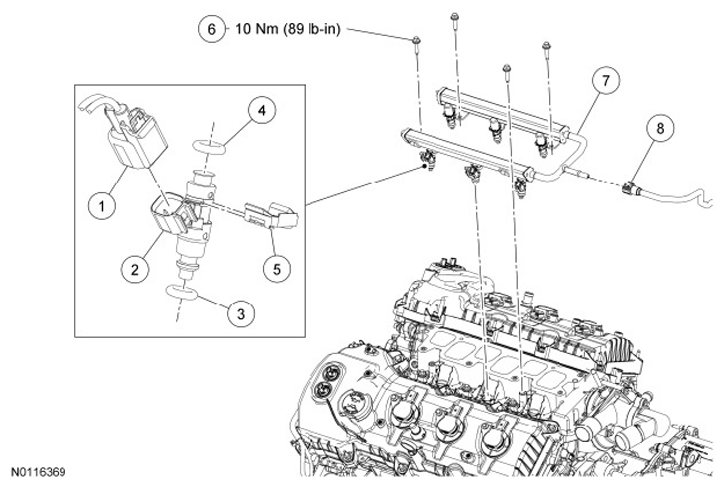

Fuel Rail and Fuel Injector - Exploded View
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel injector electrical connector (6 required) (part of 12A581) |
| 2 | 9F593 | Fuel injector (6 required) |
| 3 | 9229 | Lower fuel injector O-ring seal (6 required) |
| 4 | 9229 | Upper fuel injector O-ring seal (6 required) |
| 5 | 9C995 | Fuel injector clip (6 required) |
| 6 | W503279 | Fuel rail bolt (4 required) |
| 7 | 9F792 | Fuel rail |
| 8 | - | Fuel tube-to-fuel rail quick connect coupling (part of 9J280) |
NOTE:
Refer to the on-line Workshop Manual to view this illustration is an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.
NOTE:
Refer to the on-line Workshop Manual to learn about using an Interactive Illustration.
- Refer to the procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
