Fuel Rail: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

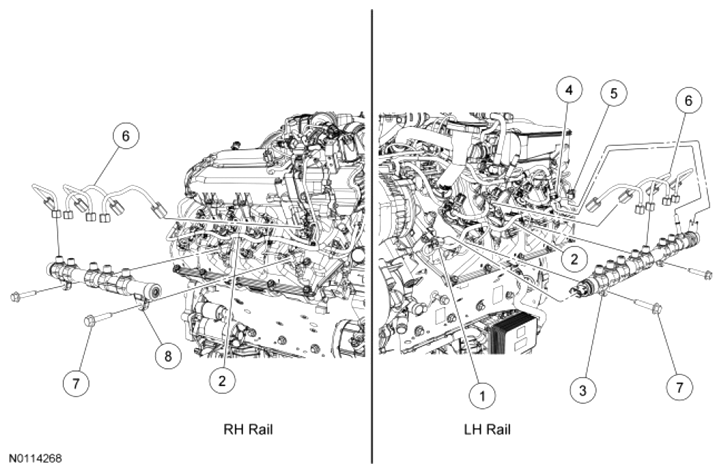

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel rail pressure sensor electrical connector |
| 2 | - | Fuel charging wiring harness retainers (3 per side) |
| 3 | 9D280 | LH fuel rail |
| 4 | - | Fuel rail-to-fuel injection pump return tube fitting (part of 9J280) |
| 5 | - | Fuel pressure control valve electrical connector |
| 6 | - | Fuel injector supply tube (part of 9229) |
| 7 | W705128 | Fuel rail bolt (2 per side) |
| 8 | 9D280 | RH fuel rail |
