Glow Plug -- Exploded View

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown below, RH similar.

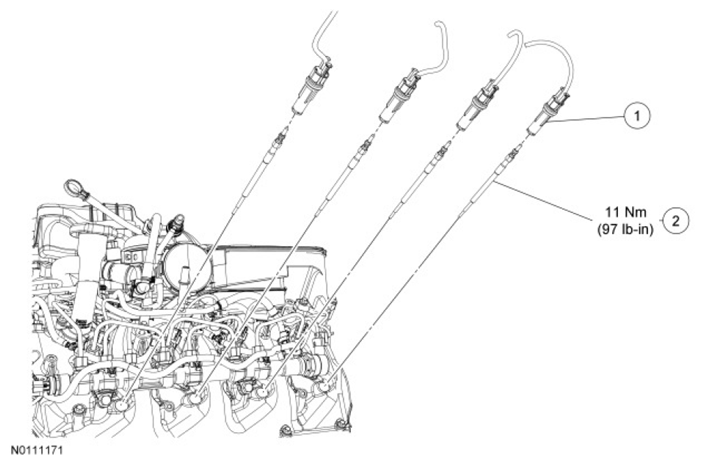

Fig 1: Glow Plug And Wiring Harness Electrical Connector With Torque Specifications
G07481894Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - LH glow plug wiring harness electrical connector (part of 12B637) (4 required)
2 12A342 Glow plug (4 required)
  1. Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
