Glow Plug: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the glow plug.
    • Tighten to 4 Nm (35 lb-in).
    • Tighten an additional 45° to 55° degrees.

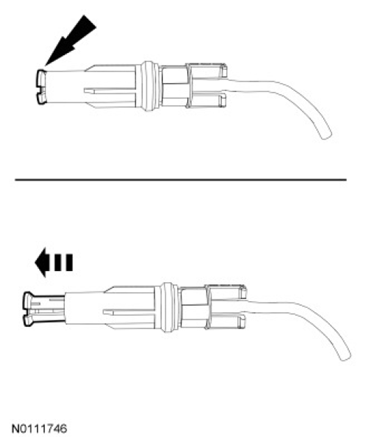

  2. Pull the glow plug electrical connector out of the outer sleeve.
    Fig 1: Pulling Glow Plug Electrical Connector Out Of Outer Sleeve
    G07481895Courtesy of FORD MOTOR CO.
  3. Connect the glow plug electrical connector to the glow plug and push the connector down to lock the connector on the glow plug.
  4. Position the RH or LH engine sound shield and install the 5 RH or 4 LH engine sound shield retainers.
  5. Install the LH or RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
