Occupant Classification Sensor: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To prevent system failure, it is necessary to carry out the Occupant Classification System (OCS) reset when a front passenger seat cushion is disassembled, a new cover installed or an OCS service kit is installed. A scan tool is used to carry out the OCS reset.
NOTE: Do not install a new heater mat on a front passenger seat cushion. Install a new Occupant Classification System (OCS) service kit. Failure to follow this instruction can cause incorrect OCS operation.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Remove the front passenger seat. For additional information, refer to SEATING .
  2. Remove the seat backrest. For additional information, refer to SEATING .

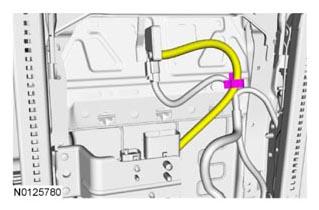

  3. For seats with a manual seat track, disengage the Occupant Classification System (OCS) hose from the retainer.
    G07991842

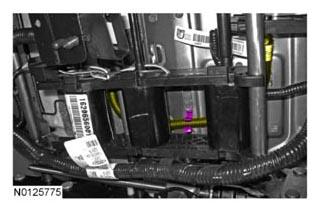

  4. For seats with a power seat track, disengage the OCS hose from the retainer.
    G07991843
  5. If equipped, disconnect the cushion heater mat electrical connector.
  6. NOTE: Using excessive force when bending the bracket tab can damage the OCS sensor housing.
    NOTE: Power seat shown, manual similar.

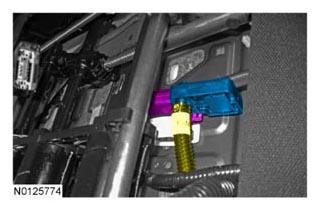

    Insert a flat head screw driver or other appropriate tool between the bracket and OCS pressure sensor. Pry the bracket retainer tab down.

    G07991844
  7. Slide the pressure sensor off the bracket and disconnect the electrical connector.
  8. Disengage the cushion cover retainers from the cushion frame.
    • For an OE OCS remove the cushion cover and foam pad from the cushion frame.
  9. Remove the 2 pin-type retainers attaching the OCS bladder to the seat cushion pan.
  10. Feed the hose and pressure sensor out of the opening in the cushion frame and remove the OCS.
  11. Detach the hook-and-loop strips, remove the hog rings and the cushion cover.
