Powertrain Control Module (PCM) - 2.0L GTDI: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

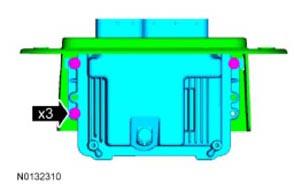

  1. Install the PCM to the bracket and install the 3 bolts.
    • Tighten to 8 Nm (71 lb-in).
      G09295382

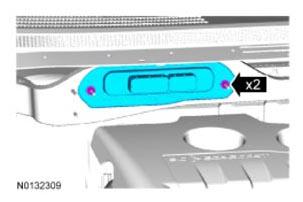

  2. Install the PCM and bracket assembly and the 2 nuts.
    • Tighten to 8 Nm (71 lb-in).
      G09295381

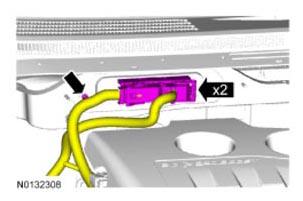

  3. Connect the 2 PCM electrical connectors.
    • Attach the wiring harness retainer to the cowl.
      G09295380
  4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, REFER to MODULE CONFIGURATION .
  5. Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, REFER to ANTI THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS) .
  6. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
