Front Display Interface Module (FDIM): Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Edge shown in illustration, MKX similar

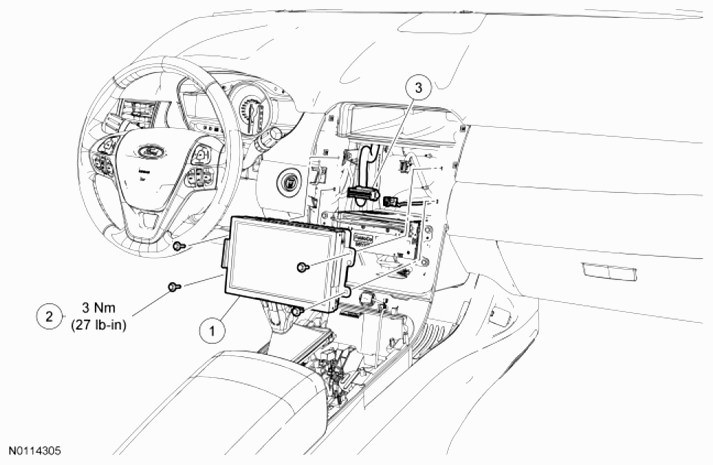

Fig 1: FDIM Related Replacement Components With Torque Specifications - Edge
G07399277Courtesy of FORD MOTOR CO.
Item Part Number Description
1 10D885 FDIM
2 W705314 FDIM  screws (4 required)
3 - FDIM  electrical connector (part of 14401)
