Selector Lever Cable: Notes

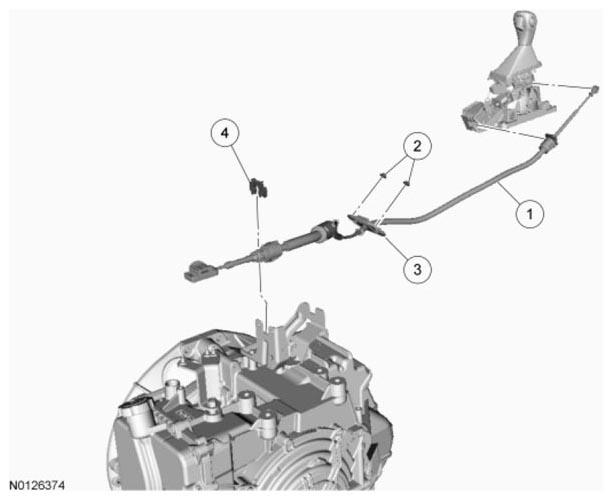

Fig 1: Exploded View Of Selector Lever Cable
G07402118Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7E395 Selector lever cable
2 W702751 Selector lever cable grommet nuts
3 - Selector lever cable grommet (part of 7E395)
4 7H181 Selector lever cable retaining clip
