Cruise-Control Module (C-CM): Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

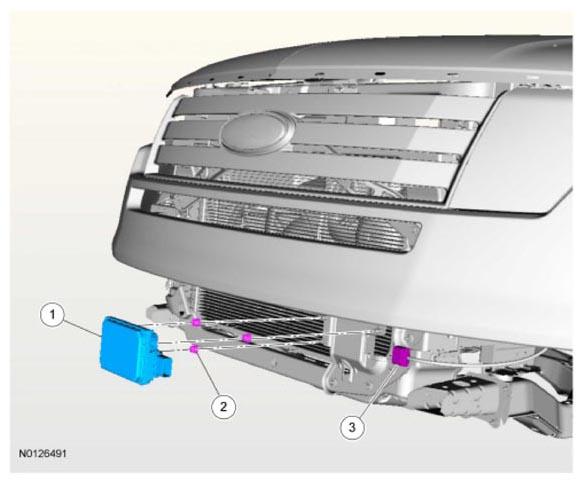

Edge shown in illustration, MKX similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E731 | Cruise-Control Module (C-CM) |
| 2 | - | C-CM ball socket grommets (3 required) |
| 3 | - | C-CM electrical connector (part of 14290) |
