Front Brake Pads: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® High Performance DOT 3 Motor Vehicle Brake Fluid (US)/Motorcraft® Brake Fluid - Heavy Duty DOT 3 (Canada) PM-1-C (US); CPM-1-C (Canada)	WSS-M6C65-A1

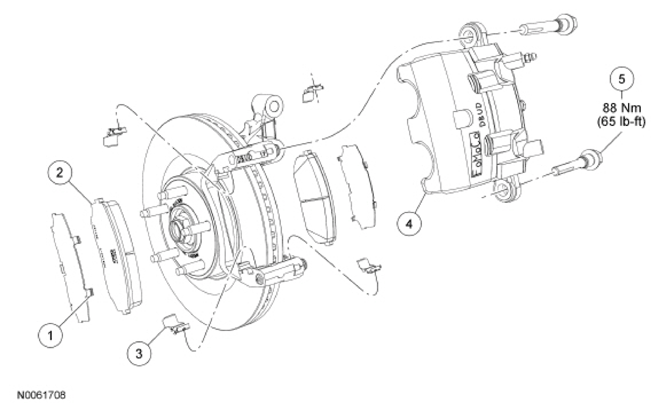

Fig 1: Exploded View Of Break Pad With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Stainless steel shim (2 required) (part of 2001)
2	2001	Brake pad (2 required)
3	-	Brake pad slide (4 required) (part of 2001)
4	2B120 RH/2B121 LH	Brake caliper
5	2C150	Brake caliper guide pin bolt (2 required)
