In-Vehicle Temperature Sensor
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

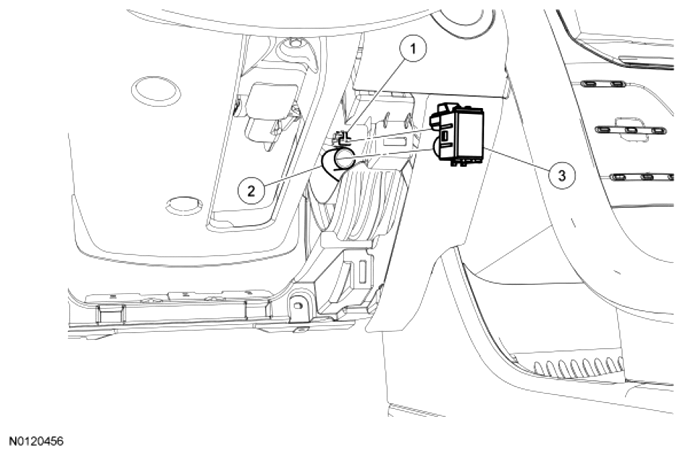

| Item | Part Number | Description |
|---|---|---|
| 1 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 2 | - | In-vehicle temperature sensor aspirator hose (part of 19D888 kit) |
| 3 | 19D888 | In-vehicle temperature sensor |
- Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
