Steering Column Control Module (SCCM): Notes

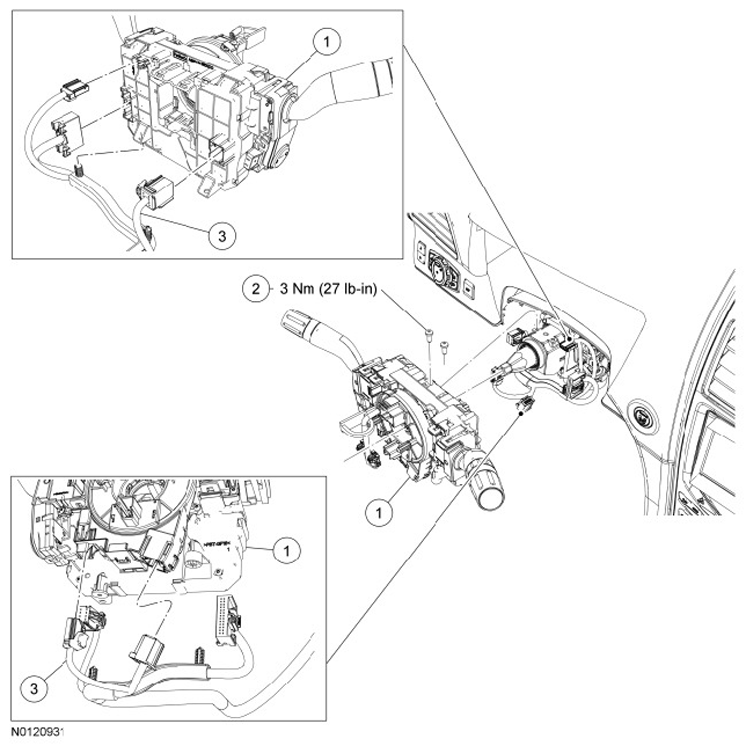

Fig 1: Exploded View Of Steering Column Control Module (SCCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	3F791	Steering Column Control Module (SCCM)
2	W715057	SCCM screw (2 required)
3	14401	Wire harness
