Parking Aid Sensor: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

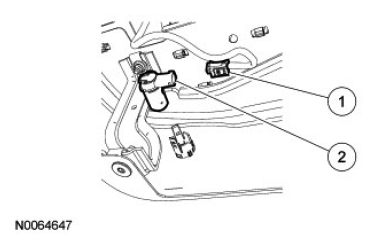

Fig 1: Identifying Parking Aid Sensor With Electrical Connector
G06763422Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Parking aid sensor electrical connector (part of 14N139)
2 15K859 Parking aid sensor (4 required)
