Test DA: Intake Air Temperature (IAT) Sensor

PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

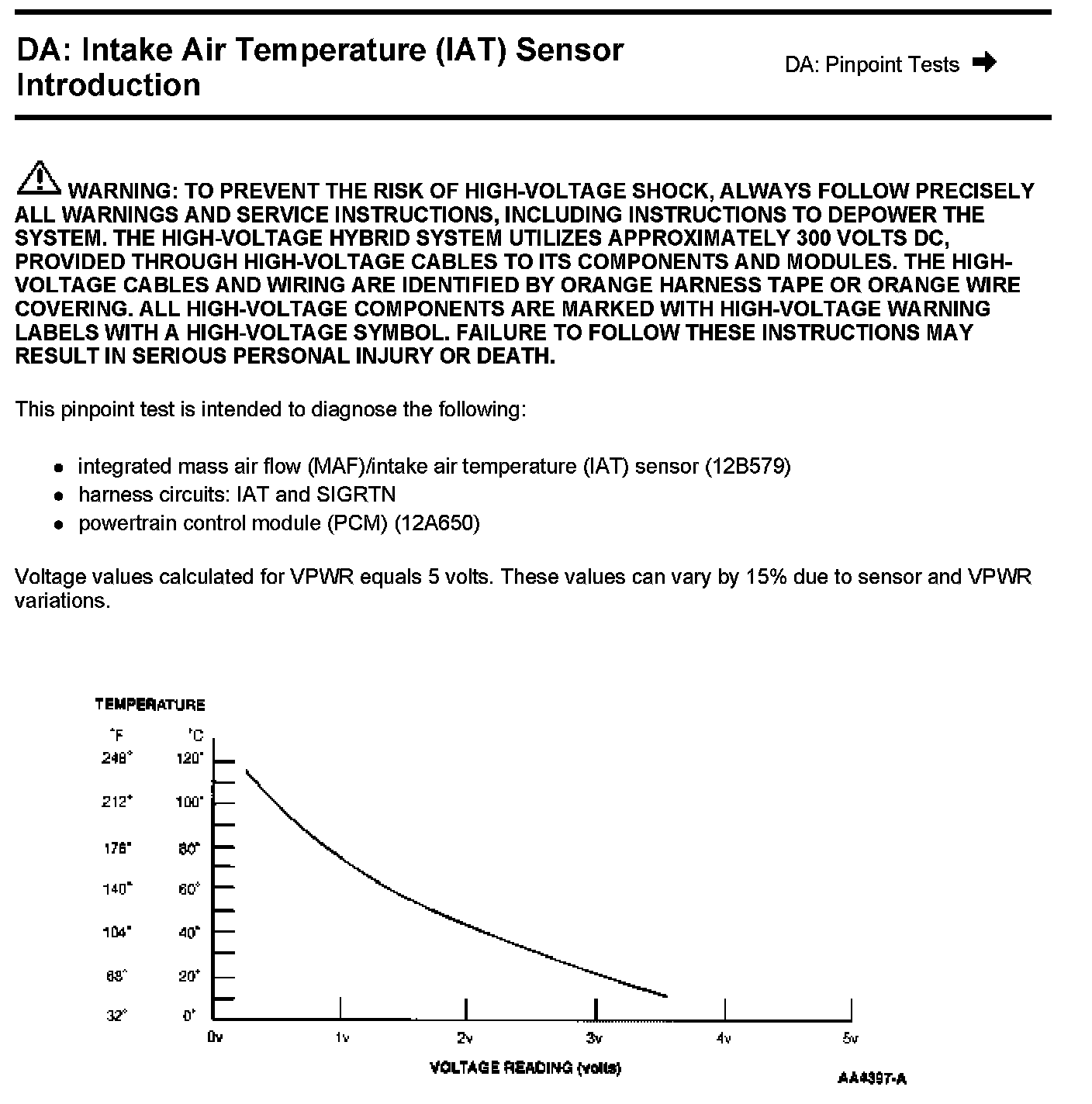

Warning:

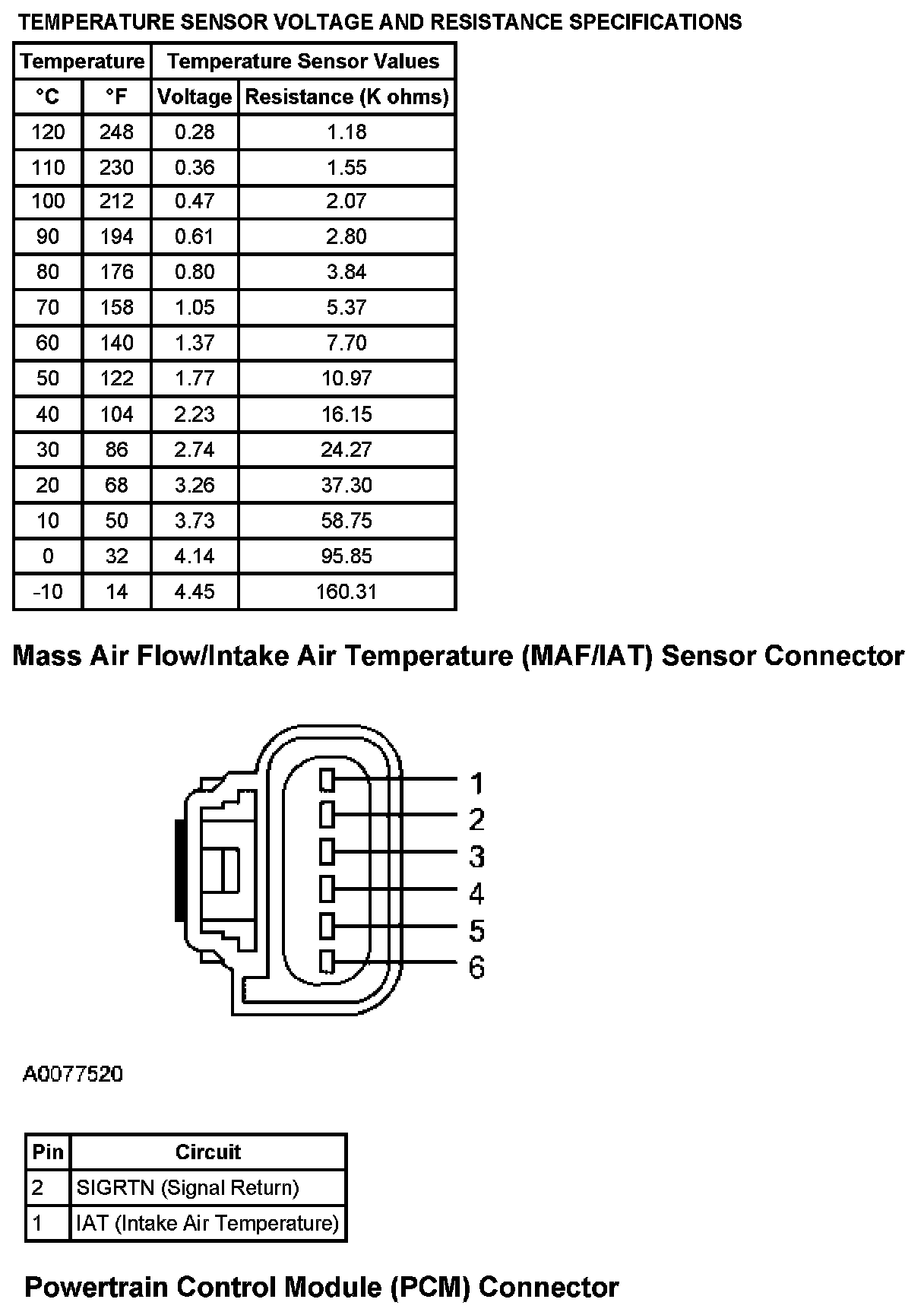

Temperature Sensor Voltage And Resistance Specifications, Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector And Powertrain Control Module (PCM) Connector:






Powertrain Control Module (PCM) Connector Continued:

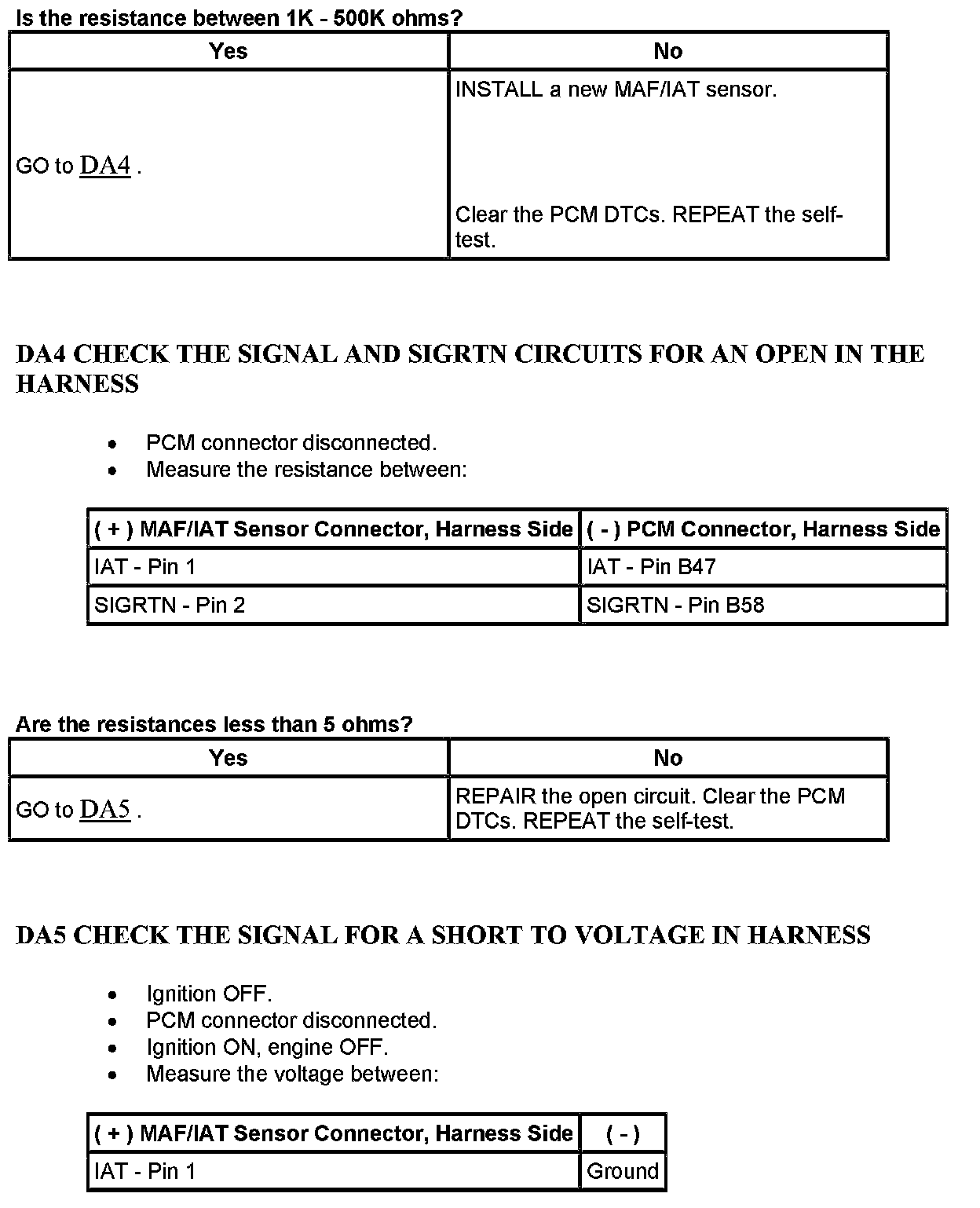

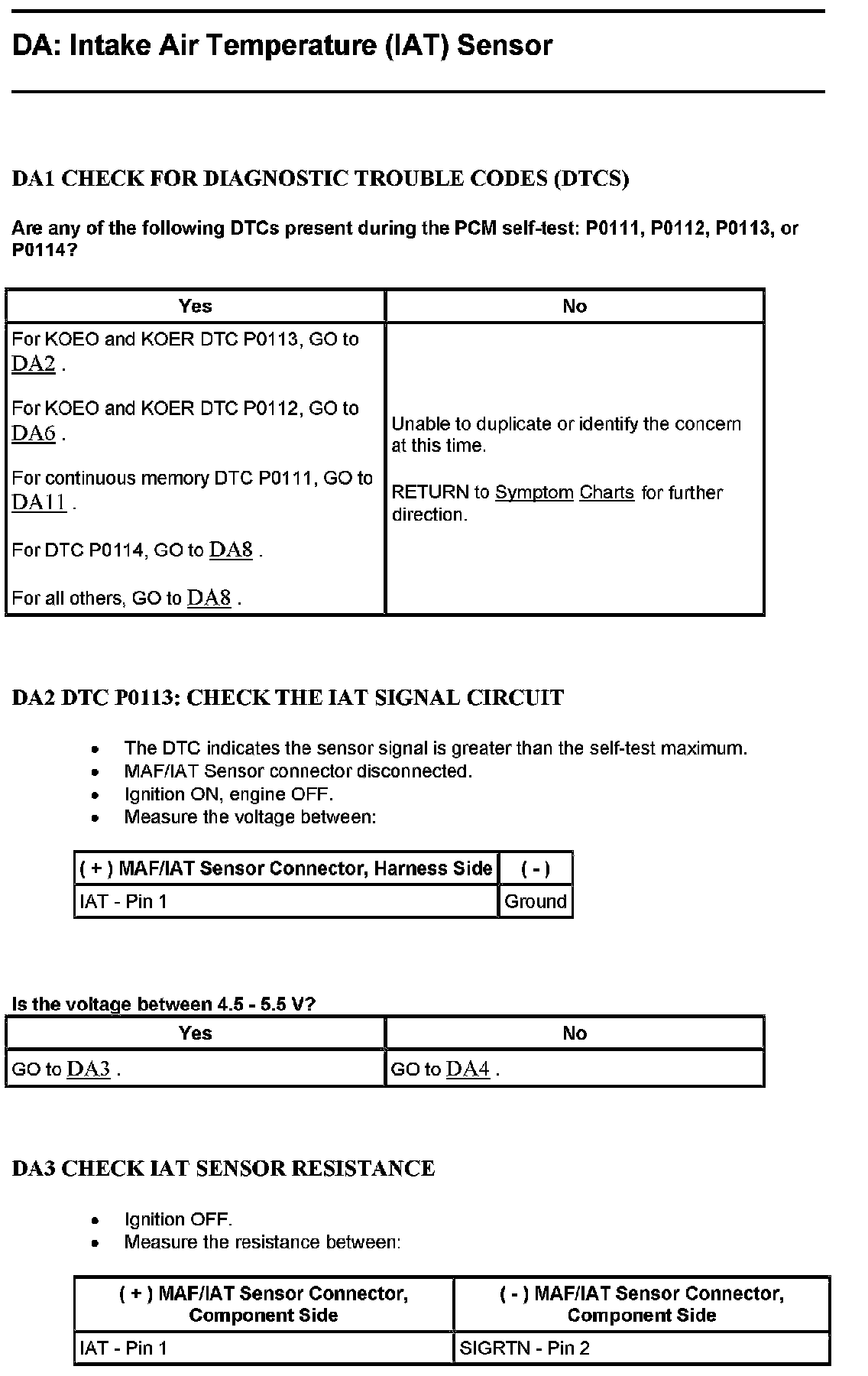

DA1-DA3:






DA3-DA5:

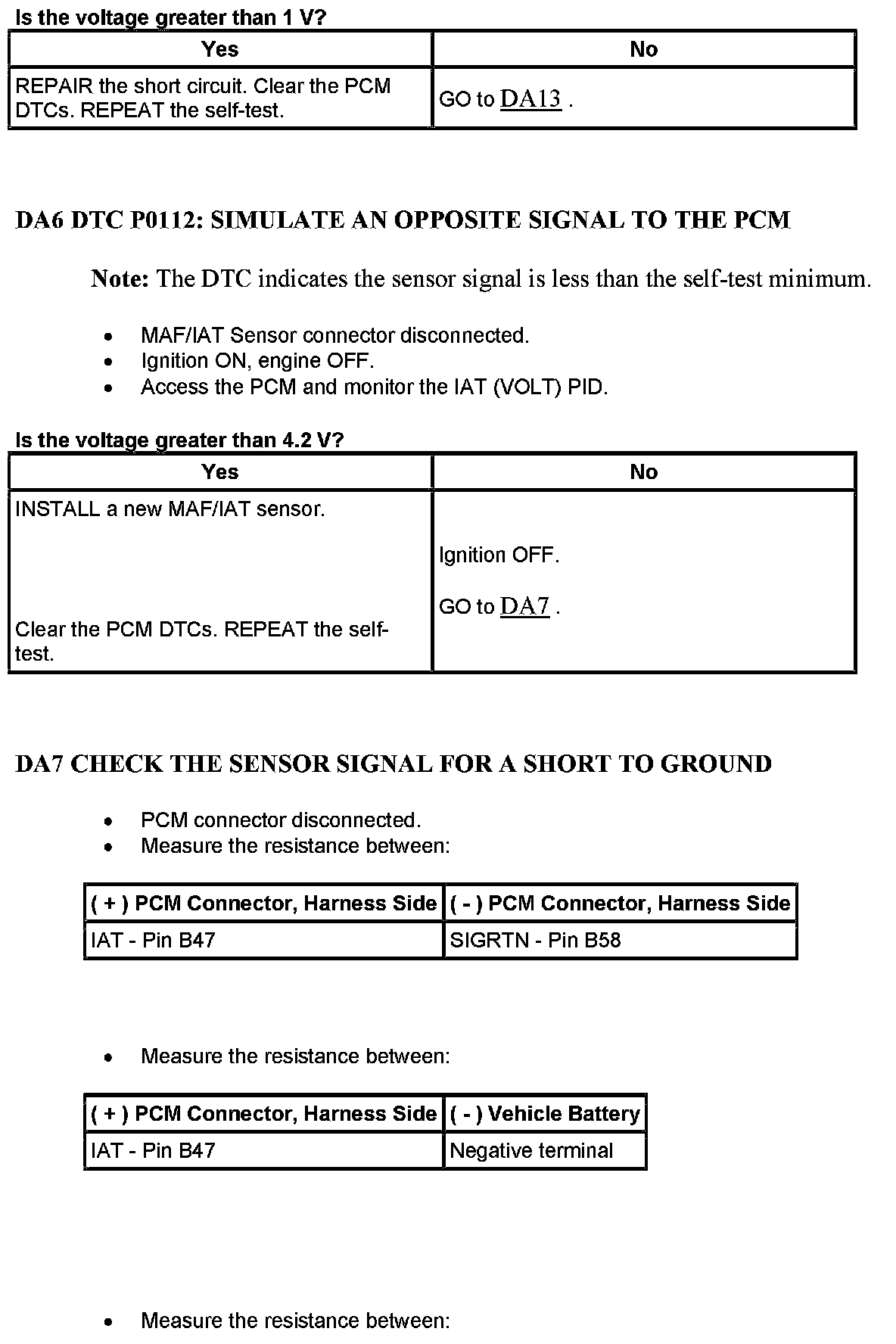

DA5-DA7:

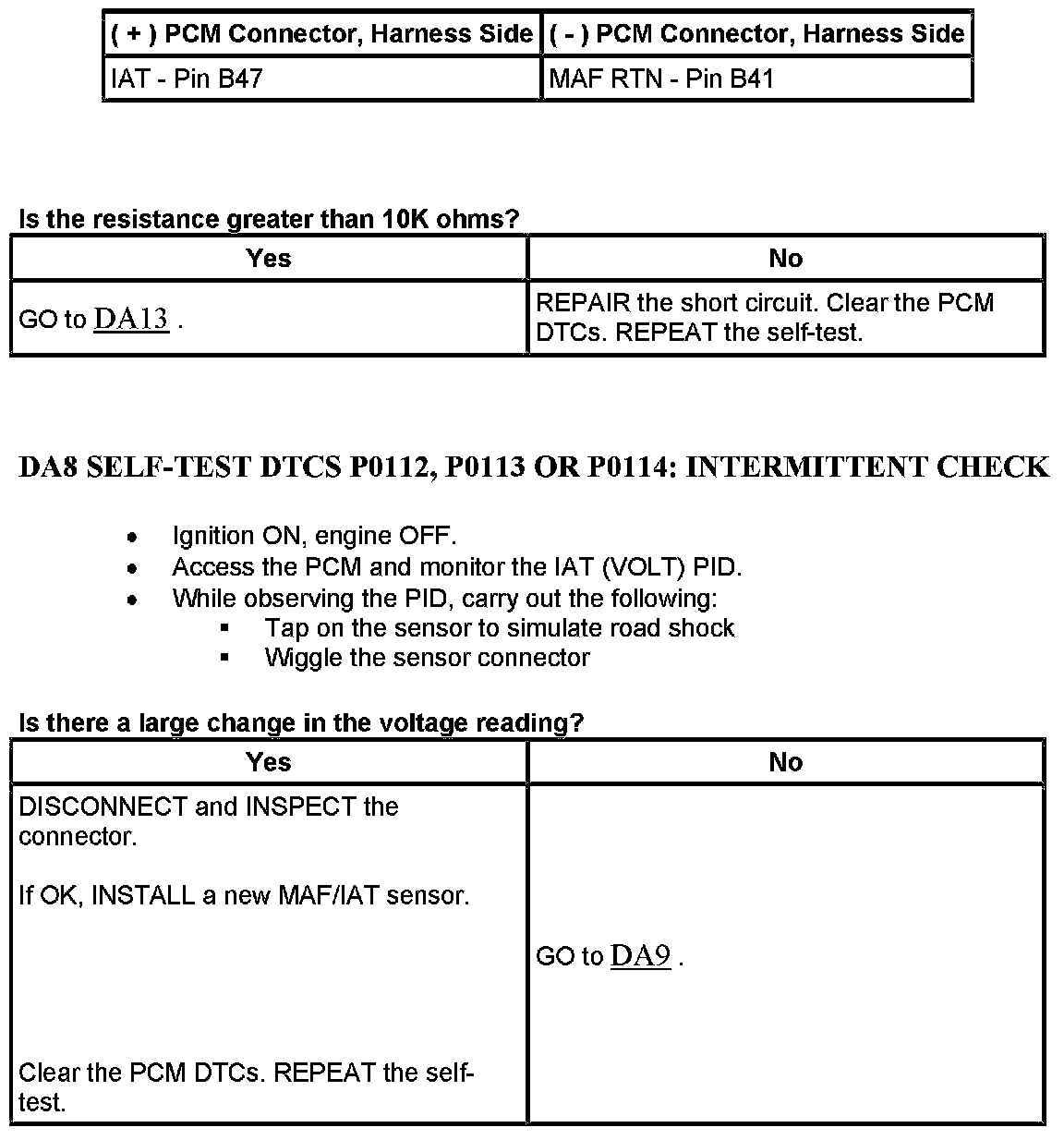

DA7-DA8:

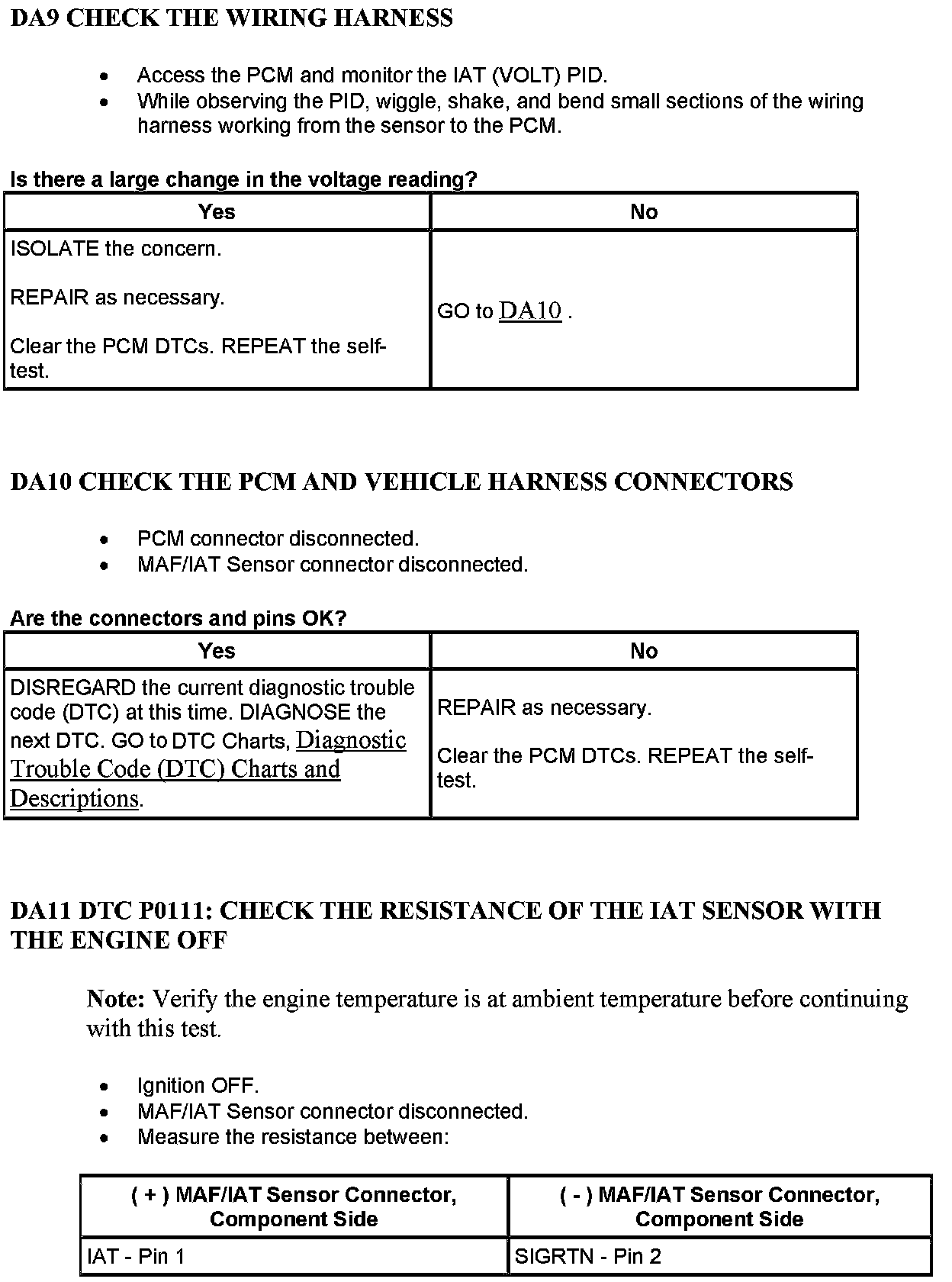

DA9-DA11:

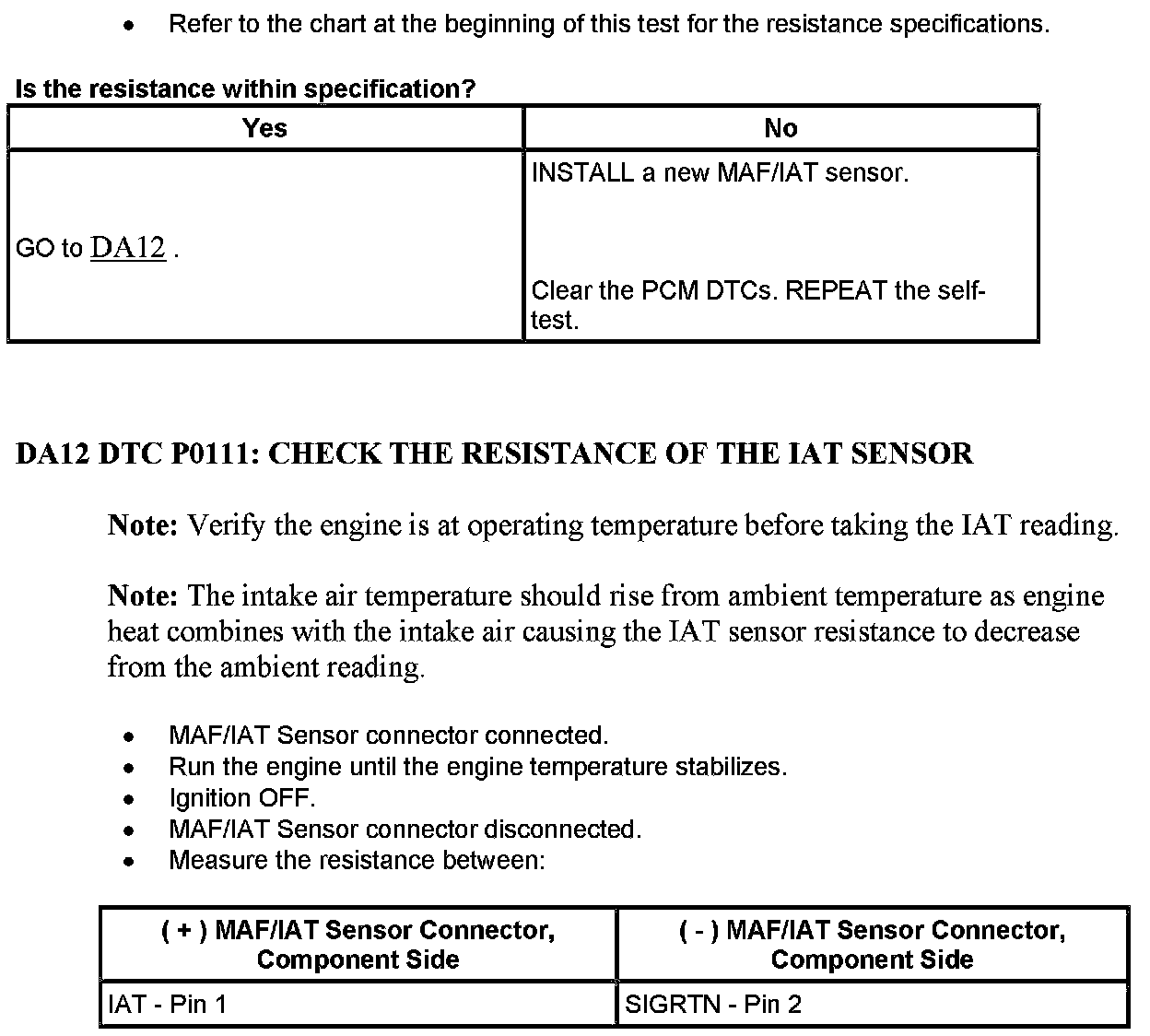

DA11-DA12:

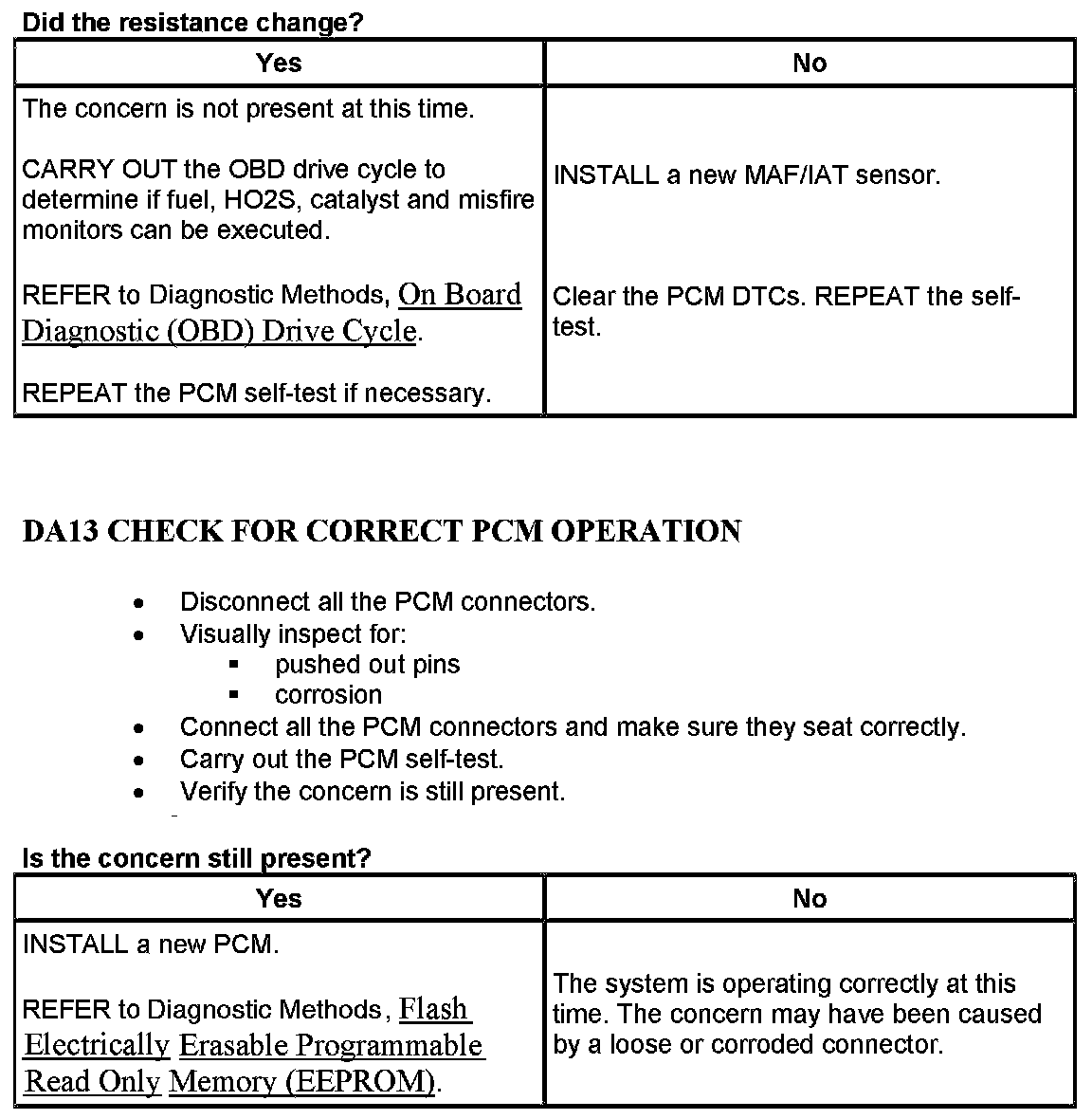

DA12-DA13:
