Test KG: Fuel Injector

PINPOINT TEST KG: FUEL INJECTOR

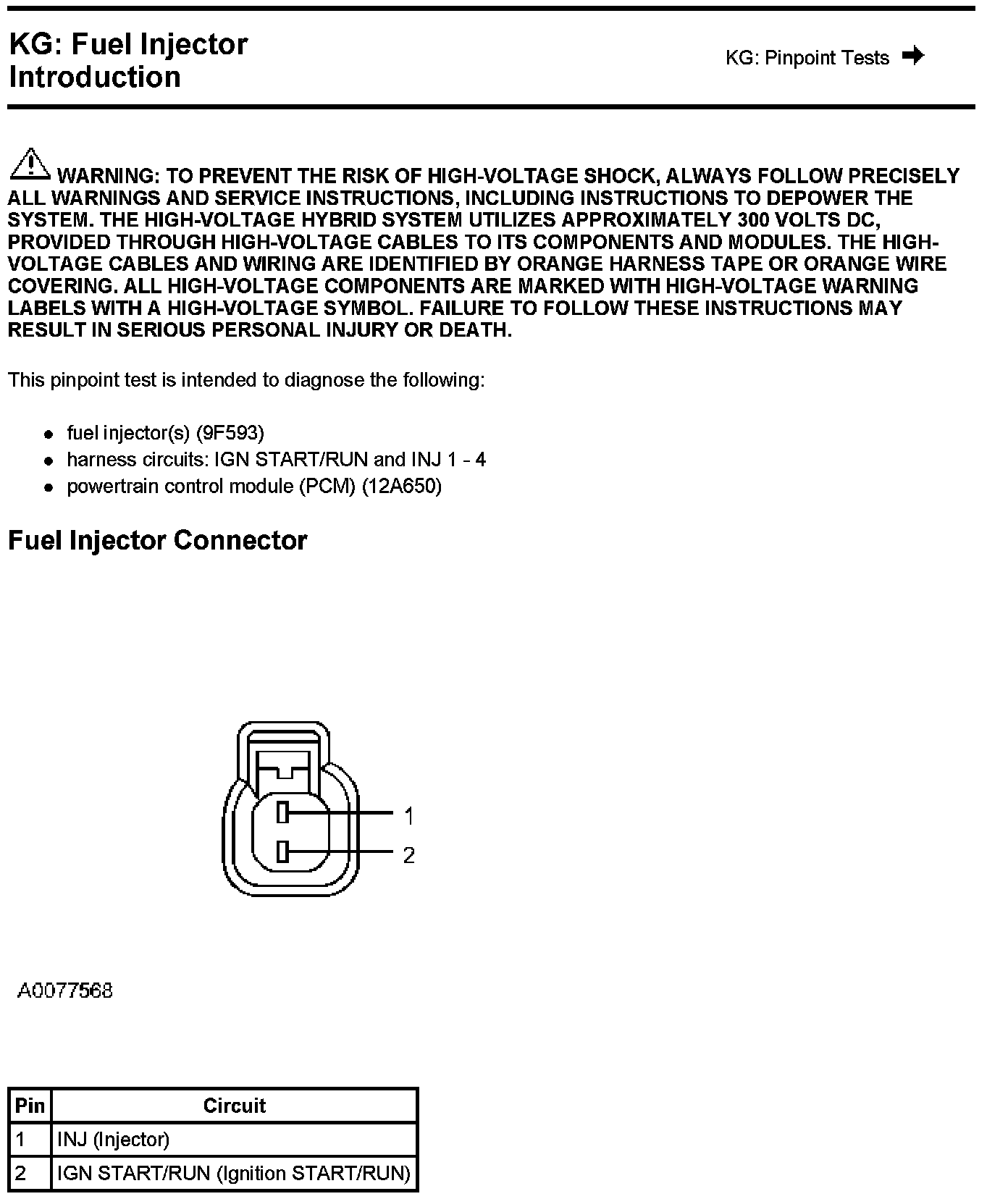

Warning And Fuel Injector Connector:






Powertrain Control Module (PCM) Connector:

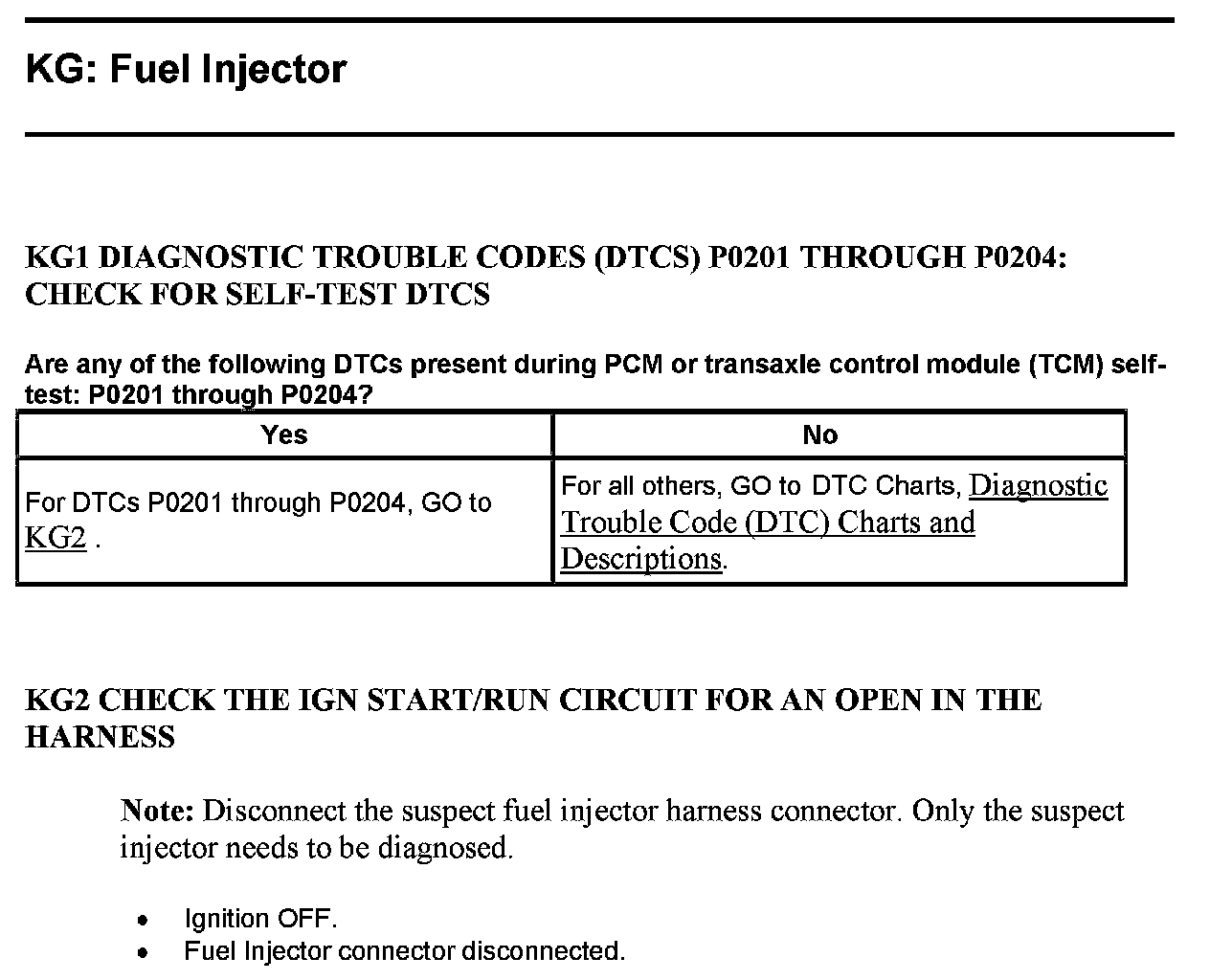

KG1-KG2:

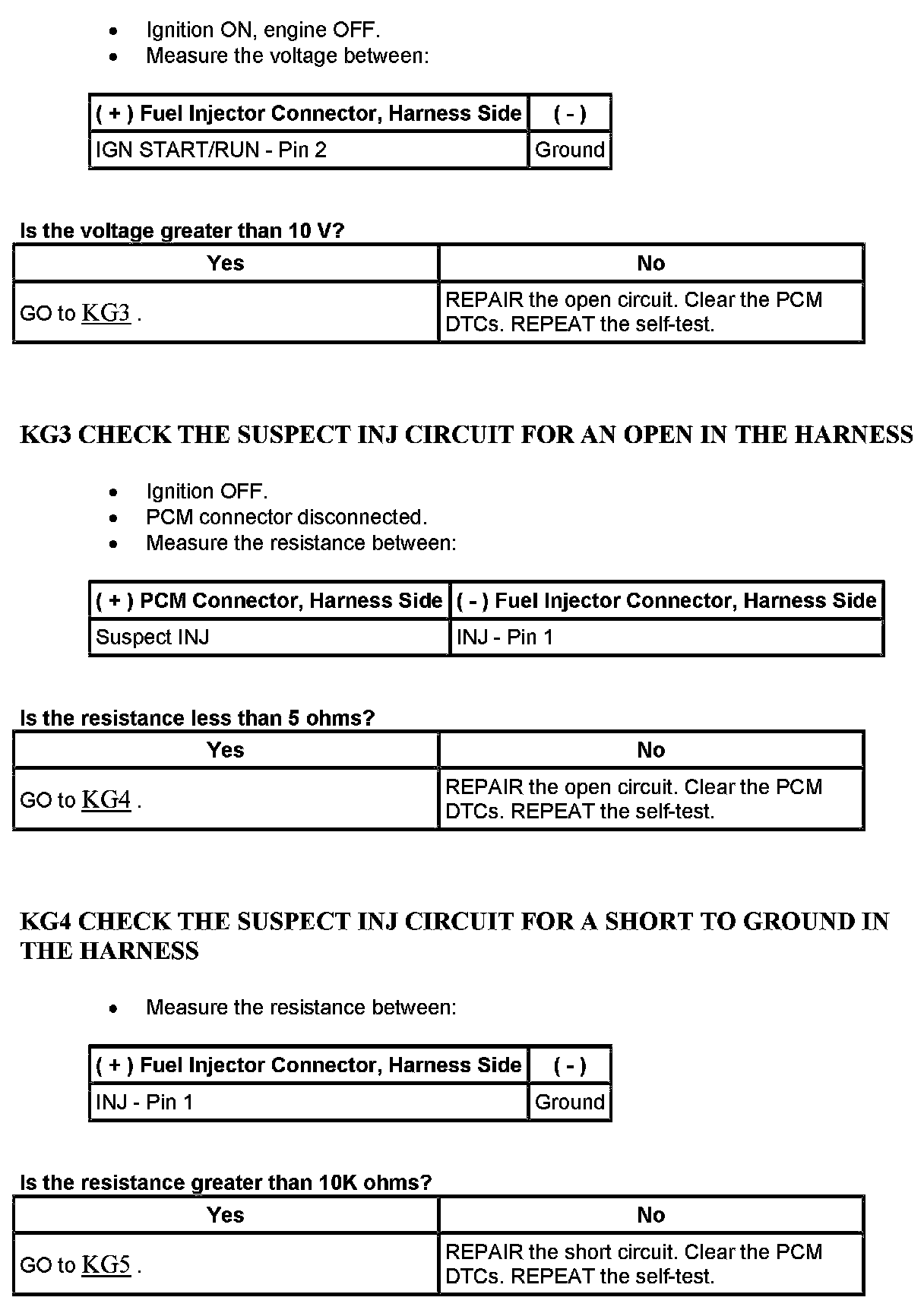

KG2-KG4:

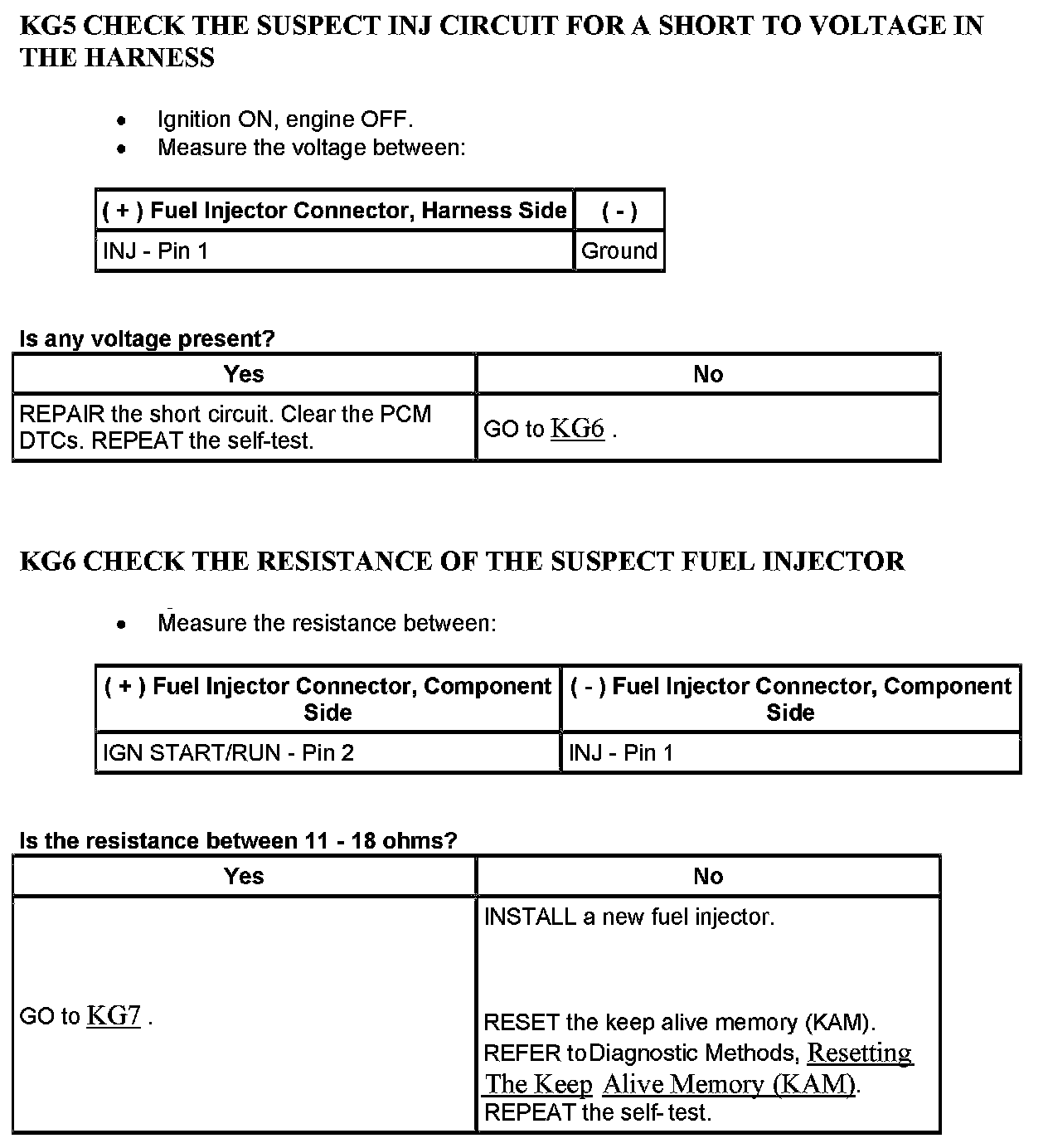

KG5-KG6:

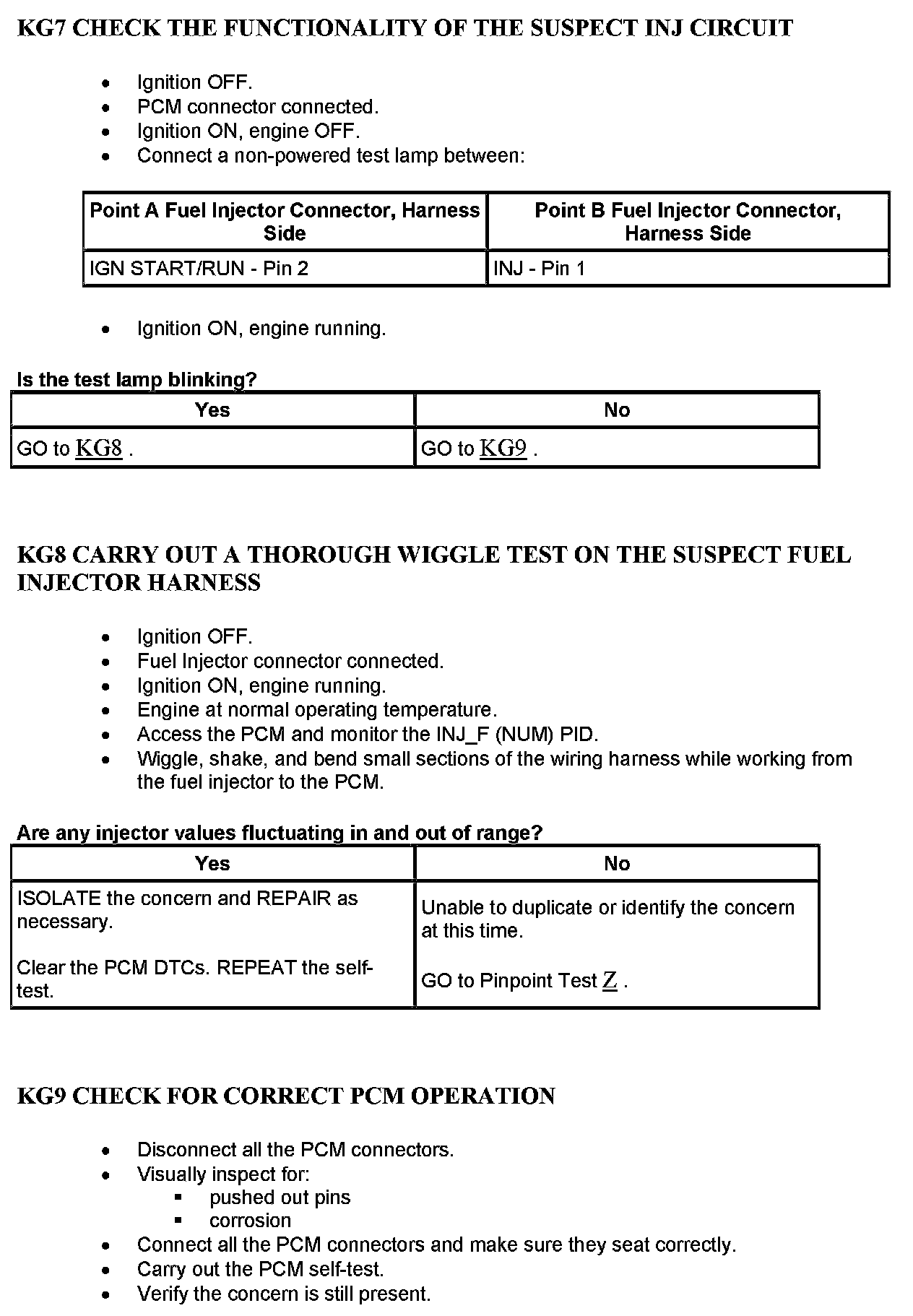

KG7-KG9:






KG9 Continued:
