Power Door Lock Switch: Service and Repair

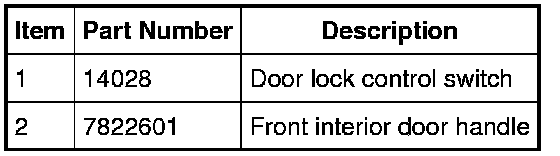

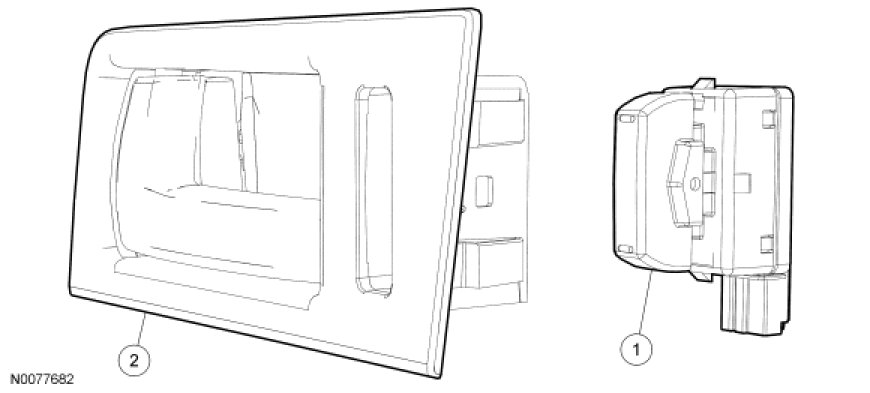

Door Lock Control Switch

NOTE: LH side shown, RH side similar.











Removal and Installation

1. Remove the front interior door handle. For additional information, refer to Interior Door Handle - Front Interior Door Handle - Front.

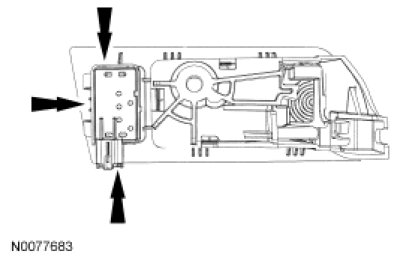

2. Release the tabs and remove the door lock control switch.





3. To install, reverse the removal procedure.
